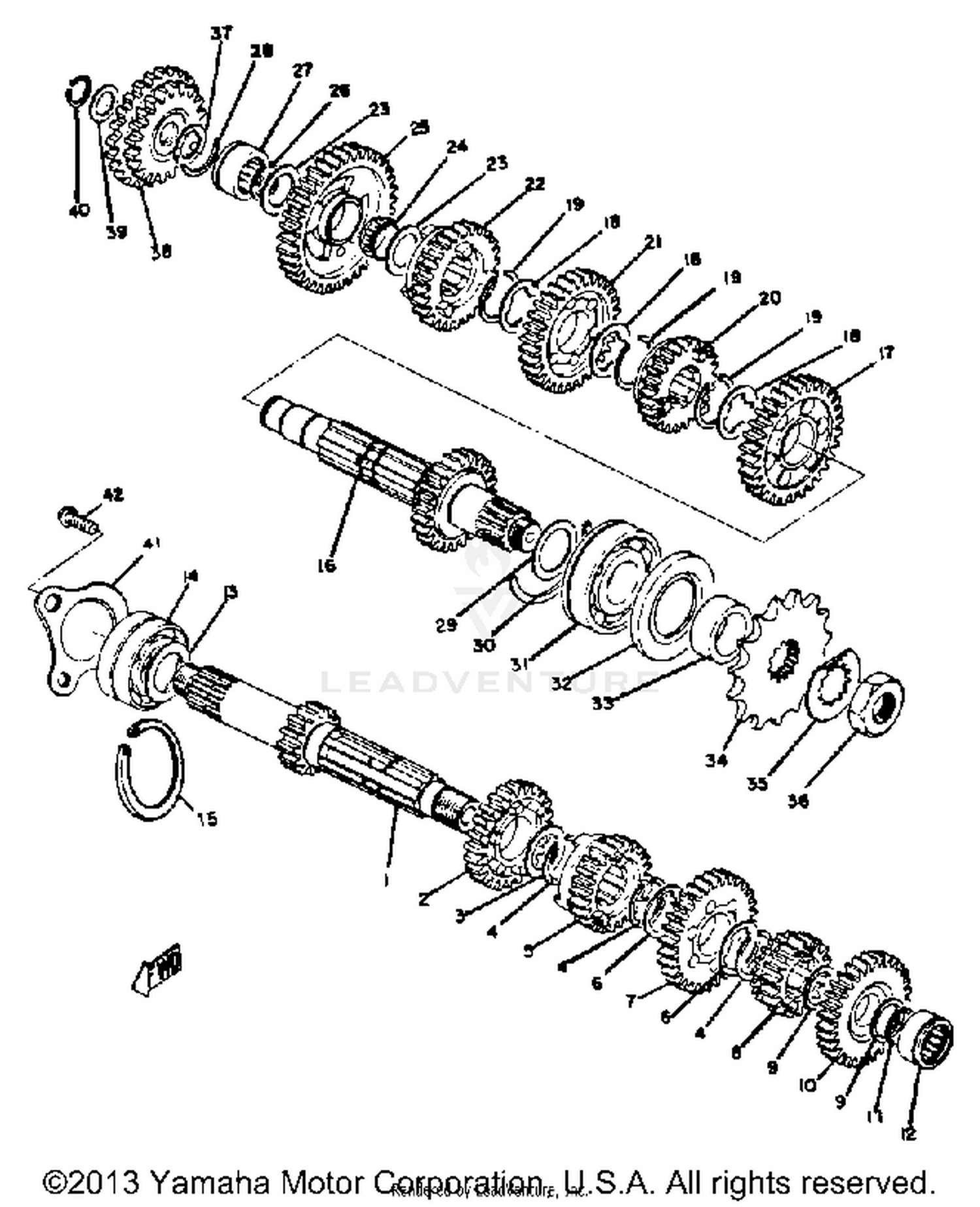

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
360-17411-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
360-17141-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-25490-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
360-17131-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#6
WASHER
90209-21105-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNAVAILABLE IN PRICE BOOK
36-01716-10-00
|
|||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
1A1-17121-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 5TH PINION
360-17151-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
99009-20400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CYLINDRICAL
93311-22027-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM 2 (25-34-0.5)
168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#14
BEARING (93305-20508-00)
93305-20502-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-52009-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DRIVE AXLE ASSEMBLY
360-17420-00-00
|
$160.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 2ND WHEEL
360-17221-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#18
WASHER, SPEC''L SHAP
90209-21106-00
|
$4.40 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
GEAR, 6TH WHEEL
360-17261-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 3RD WHEEL
360-17231-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH WHEEL
360-17241-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE (T=1.0)
90201-20276-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (K20-24X10 S)
93310-22057-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 1ST WHEEL
360-17211-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
99009-20400-00
|
$6.99 | ||
|
Unavailable |
|||
|
#27
BEARING
93311-42045-00
|
$30.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP 2
278-17425-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM 2 (25-34-0.5)
168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#30
CIRCLIP 1
278-17424-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
93306-30506-00
Superseded by 93306-30504-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (SD-35-62-6 HS)
93102-35109-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-25192-00
Superseded by 90387-253M9-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVE 16T
9385E-16114-00
|
$22.95 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE (15T)
9385E-15090-00
Superseded by 3HE-17460-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
9385E-14160-00
|
$15.99 | ||
|
Unavailable |
|||
|
#35
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90179-18020-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, WAVE
90206-15021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
IDLE GEAR ASSEMBLY
278-15650-00-00
|
$72.94 | ||
|
Unavailable |
|||
|
#39
SHIM 1 (1.0T)
164-17417-00-10
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCLIP
99009-15400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE, COVER
360-17471-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#42
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
