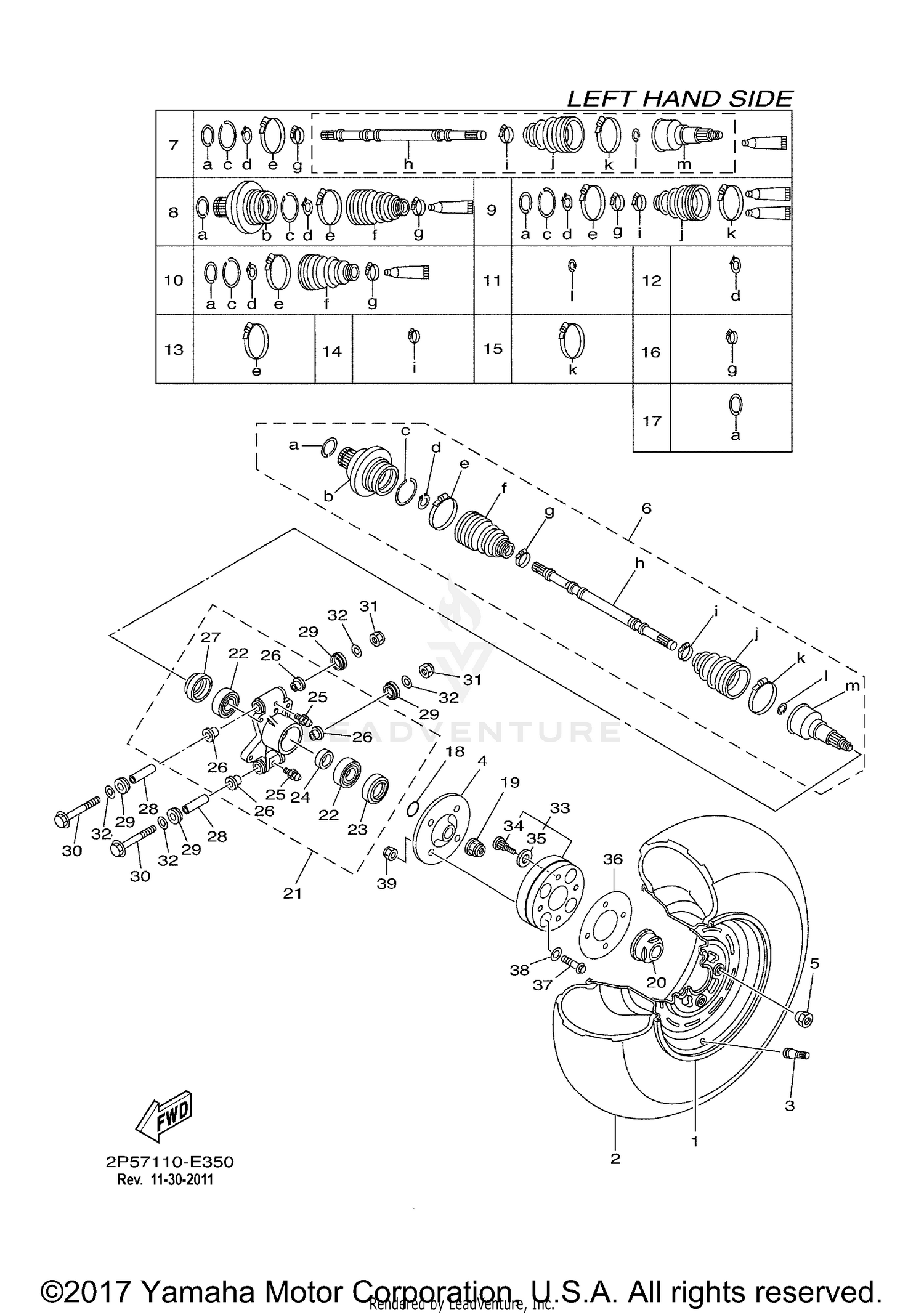

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
5UG-F5390-20-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (25X10.00-12 M952Y TL)
94110-12805-00
|
$174.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB ASSY
5UG-F5310-30-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SERRATION
90114-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-10022-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR DRIVE SHAFT ASSY
5UG-F531H-21-00
|
$465.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALL JOINT SET
5UG-F530T-20-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DOUBLE OFF SET JOINT
5UG-F530V-02-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT SET (BALL JOINT)
5UG-F530X-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT SET (DOUBLE OFFSET JOINT
5UG-F530Y-01-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
5UG-F512H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SNAP RING
5UG-F512J-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT BAND (DOUBLE OFFSETJOINT
5UG-F511H-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT BAND (SMALL)
5UG-F512G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT BAND (BALL JOINT)
5UG-F511G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT BAND (SMALL)
5UG-F510U-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, SPRING
5KM-2536E-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-27666-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-24003-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, WHEEL
2P5-F512A-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
REAR KNUCKLE ASSY
5UG-F530F-11-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-206Y2-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93106-42800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-30008-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93106-38800-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER
5KM-23448-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, THRUST 1
5UG-23517-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-10277-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SELF-LOCKING
90185-10012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
