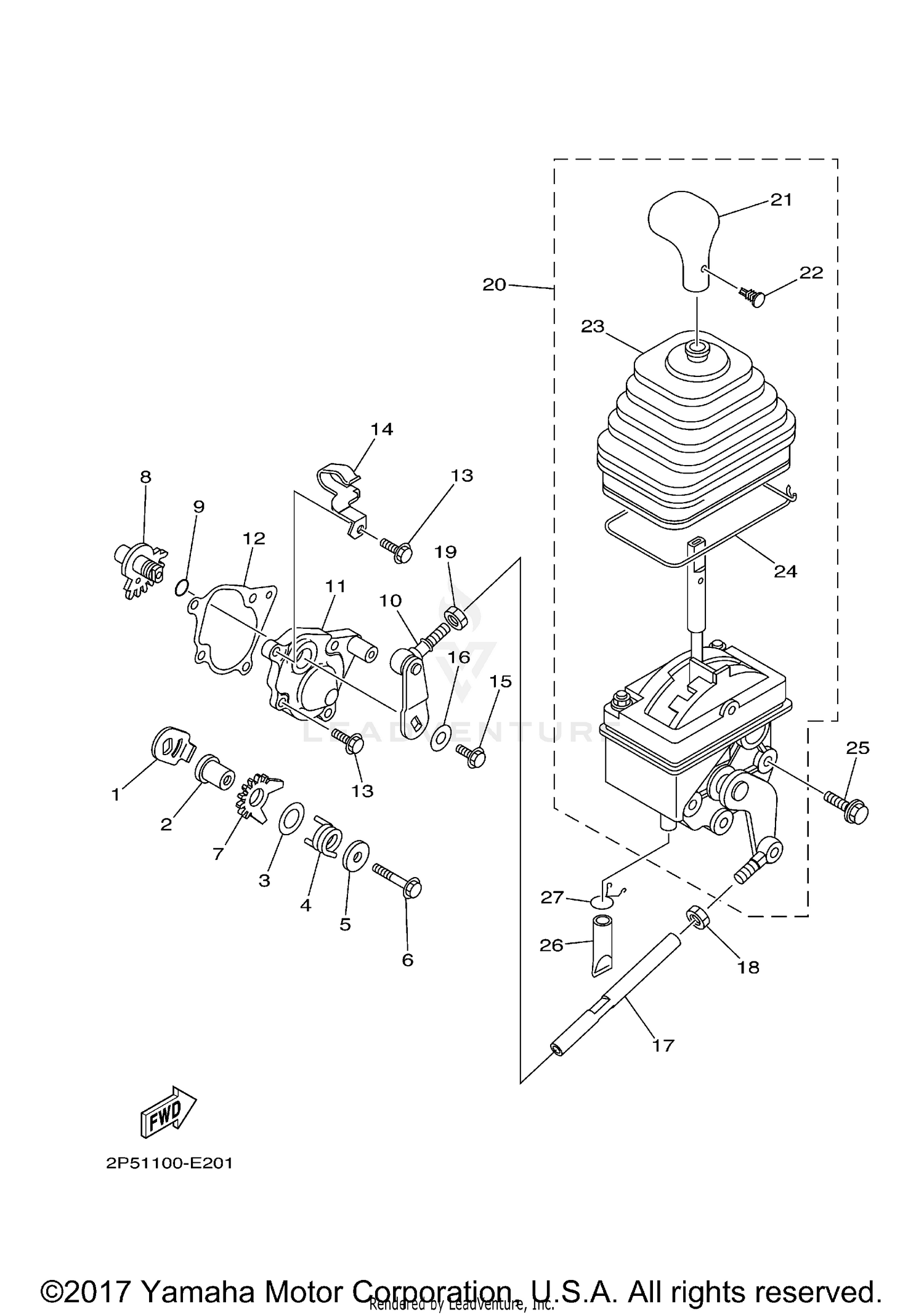

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
4SH-18198-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-0613B-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-132G5-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-35764-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95812-06035-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
5KM-18191-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT
5GH-18197-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT GUIDE COMP.
2P5-18104-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SHIFT SHAFT
5GH-18129-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
5GH-18146-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97080-06020-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90465-08336-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06036-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
ROD, SHIFT
2P5-18115-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#18
NUT
90170-08358-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95302-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIFTER ASSY
5UG-18300-10-00
Superseded by 5UG-18300-12-00
|
$237.99 | ||
|
Unavailable |
|||
|
#21
KNOB, SHIFT LEVER
5UG-18174-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RIVET
90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOOT, SEALING
5GH-18131-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER, RUBBER
5GH-18617-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95802-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, DRAIN
4GY-1443E-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
