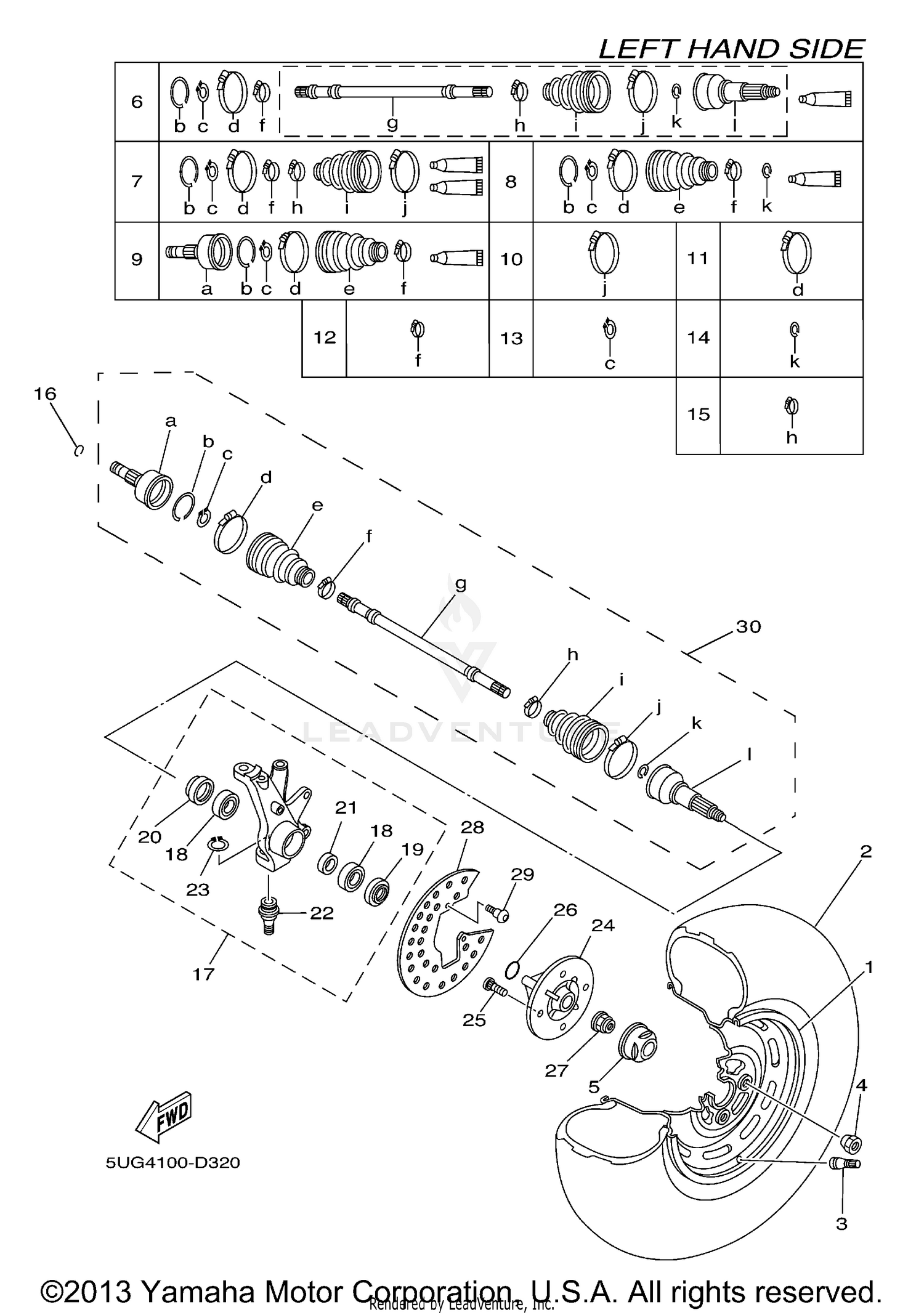

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
5UG-F5180-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (25X8-12 NHS)
94108-12804-00
|
$199.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10540-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
5UG-F512A-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL JOINT SET
5UG-F510F-10-00
|
$240.99 | ||
|
Unavailable |
|||
|
#7
BOOT SET (BALL JOINT)
5UG-F510G-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT SET (DOUBLE OFFSET JOINT)
5KM-2510H-10-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DOUBLE OFF SET JOINT
5KM-2510J-20-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT BAND (BALL JOINT)
5UG-F511G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT BAND (DOUBLE OFFSETJOINT)
5UG-F511H-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SNAP RING
2HR-2512J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
5UG-F512H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT BAND (SMALL)
5UG-F512G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, DRIVE SHAFT
5KM-45531-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STEERING KNUCKLE ASSY (LEFT)
5UG-F3501-10-00
Superseded by 5UG-F3501-12-00
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93306-006Y4-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93106-38046-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93106-38047-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-30008-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALL JOINT 1
5FU-F3549-00-00
Superseded by 37S-23549-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93410-32826-00
Superseded by 93410-32075-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HUB, FRONT
5UG-F5111-02-00
Superseded by 5UG-F5111-10-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SERRATION
90114-10012-00
Superseded by 90114-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-27666-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-20006-00
Superseded by 90179-20016-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
RING, WHEEL 1
5UG-F514A-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW
90149-06280-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FRONT DRIVE SHAFT ASSY LH
5UG-F518F-10-00
|
$448.99 | ||
|
Available to order. Add to View Price |
|||
