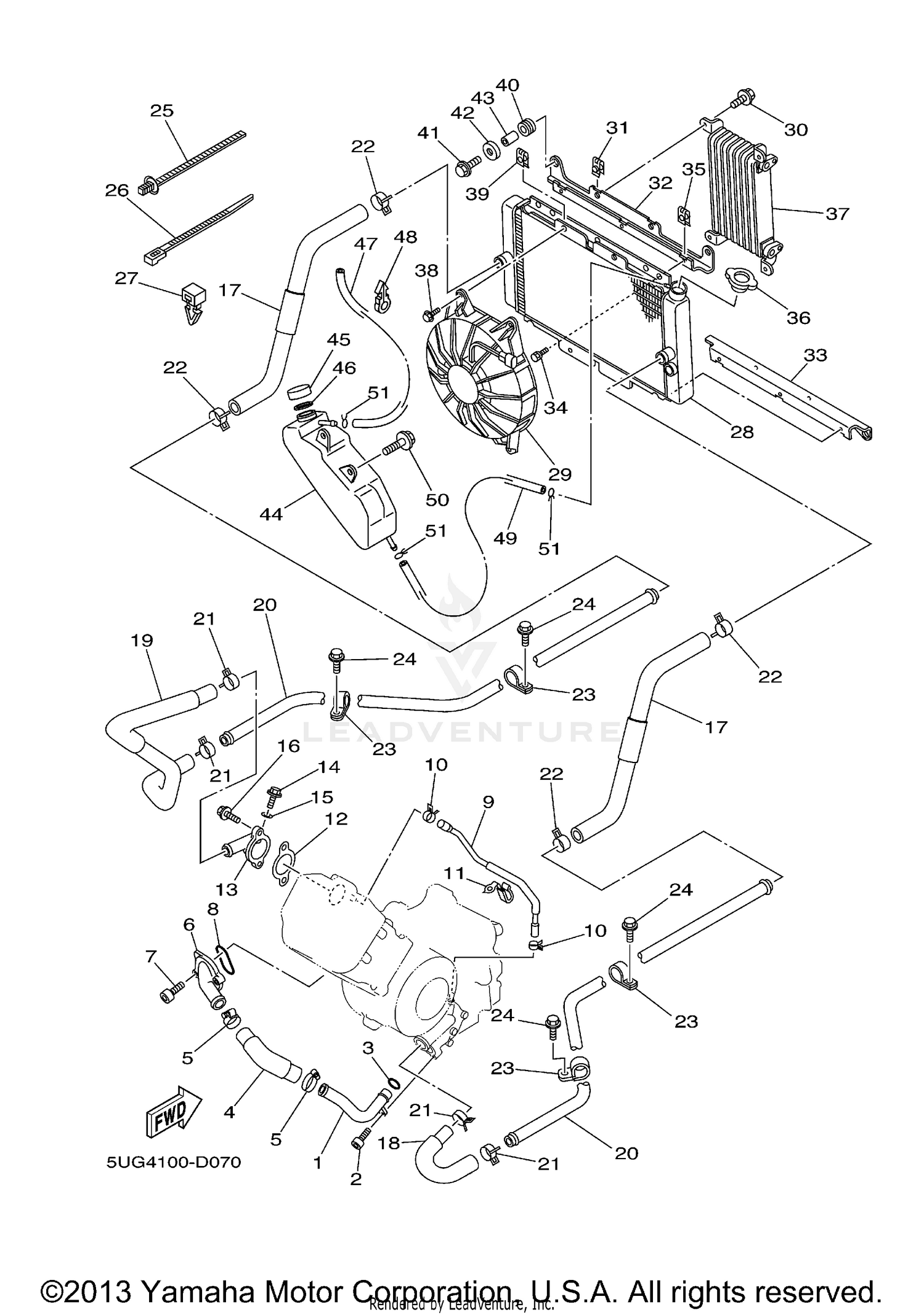

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
5KM-12481-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91317-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-21190-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE 2
5KM-12577-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT 1
5KM-12469-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-33786-00
Superseded by 93210-33006-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 4
5KM-12579-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-10038-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90462-08008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
5KM-12434-00-00
Superseded by 5KM-12434-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, THERMOSTAT
5UG-12413-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
90338-06041-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 1
5UG-E2576-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE 2
5UG-E2577-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE 4
5UG-E2579-00-00
Superseded by 5UG-E2579-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, WATER
5UG-E2564-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90450-32015-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
CLIP
90467-26189-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90461-12800-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-20005-00
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-65800-00
|
$2.05 | ||
|
Unavailable |
|||
|
#27
HOLDER
5UG-F2465-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#28
RADIATOR ASSY
5UG-E2461-00-00
|
$417.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BLOWER ASSY
5UG-E2405-00-00
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, BLOWER HOLDING
5ND-E2675-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE
5ND-E2535-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET 1
5UG-E244E-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET 2
5UG-E244F-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
5UG-E2623-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE
5ND-E2535-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#36
CAP, RADIATOR
5ND-E2462-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL COOLER ASSY
5UG-E3470-00-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, BLOWER HOLDING
5ND-E2675-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
PLATE
5ND-E2535-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#40
GROMMET
90480-15235-00
Superseded by 90480-12475-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER
90209-06174-00
Superseded by 90209-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
TANK, RECOVERY
5GS-21871-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CAP
26H-21875-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
GASKET
26H-21874-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE (L1020)
90445-08811-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE (L500)
90445-08809-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
