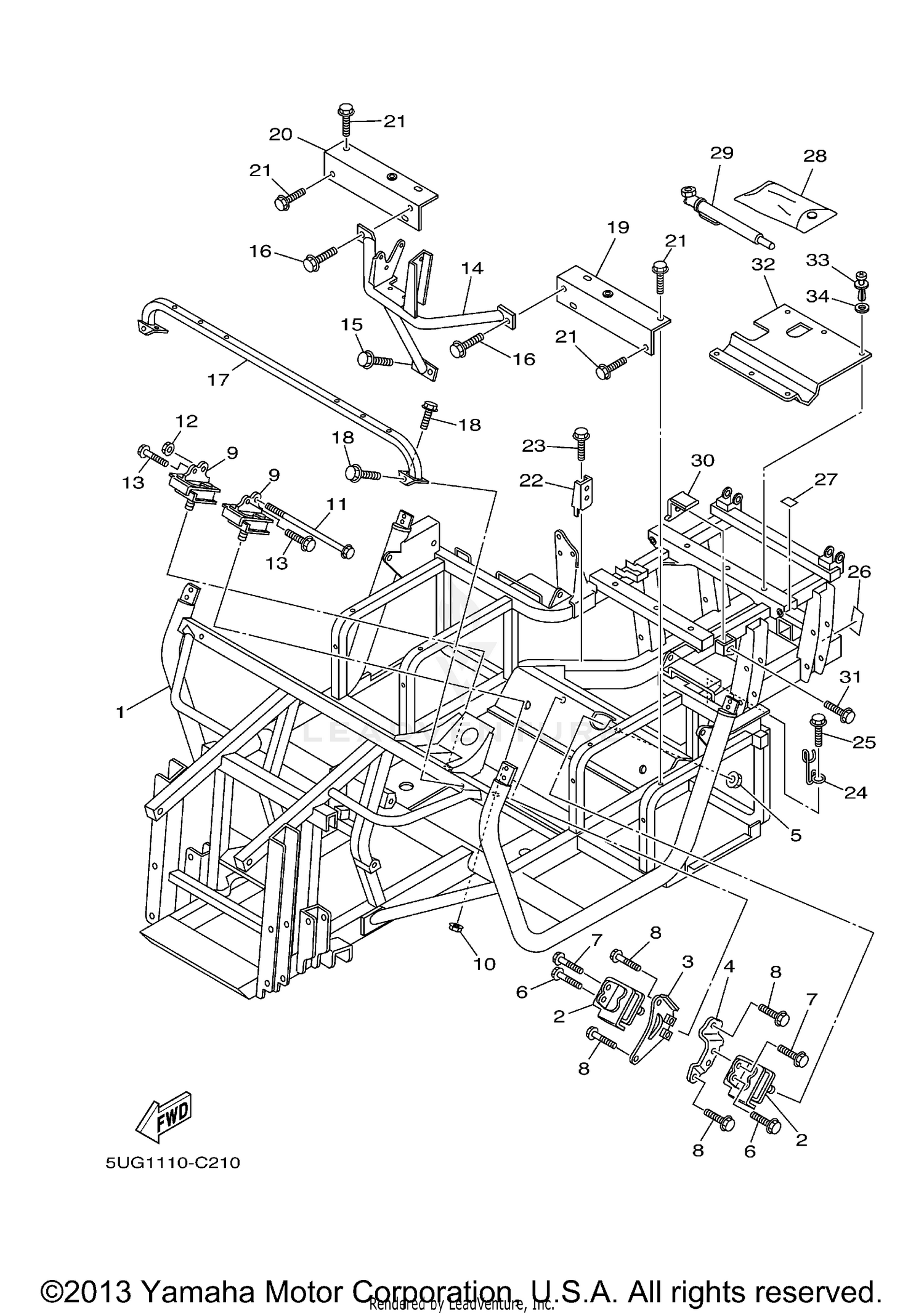

2004 Yamaha RHINO 660 YXR660FAH 4X4 HUNTER EDITION FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5UG-F1110-00-00
Superseded by 5UG-F1110-19-00
|
$3,459.99 | ||
|
Unavailable |
|||
|
#
FRAME COMP.
5UG-F1110-19-00
|
$3,459.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, RUBBER 1
5UG-21485-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, ENGINE 2
5KM-21315-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, ENGINE 3
5KM-21316-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
9560P-10200-00
Superseded by 90185-10154-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95817-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER 2
5UG-21486-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
9560P-10200-00
Superseded by 90185-10154-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-10300-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
9560P-10200-00
Superseded by 90185-10154-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
REINFORCEMENT, FRAME 1
5UG-F1986-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
9581P-06016-00
Superseded by 95817-06016-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
9581P-10020-00
Superseded by 95817-10020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUPPORTER
5UG-F1145-00-00
Superseded by 2P5-F1145-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
9581P-08012-00
Superseded by 95817-08012-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
SUPPORT, SEAT
5UG-F114H-00-00
Superseded by 5UG-F114H-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SUPPORT, SEAT
5UG-F114J-00-00
Superseded by 5UG-F114J-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
9581P-08012-00
Superseded by 95817-08012-00
|
$4.90 | ||
|
Unavailable |
|||
|
#22
BRACKET
5UG-F116B-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
9581P-06016-00
Superseded by 95817-06016-00
|
$2.55 | ||
|
Unavailable |
|||
|
#24
HOLDER, CLUTCH CABLE
5UG-F1163-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
9581P-06016-00
Superseded by 95817-06016-00
|
$2.55 | ||
|
Unavailable |
|||
|
#26
LABEL 7
5UG-F151K-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
LABEL 6
5UG-F151J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
TOOL KIT
5ND-F8100-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GAUGE, AIR
5UG-F811A-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BODY, LATCH 2
5UG-K7172-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95817-10016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
INSULATOR, HEAT
5UG-F2898-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
RIVET
90269-06800-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-068G0-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
