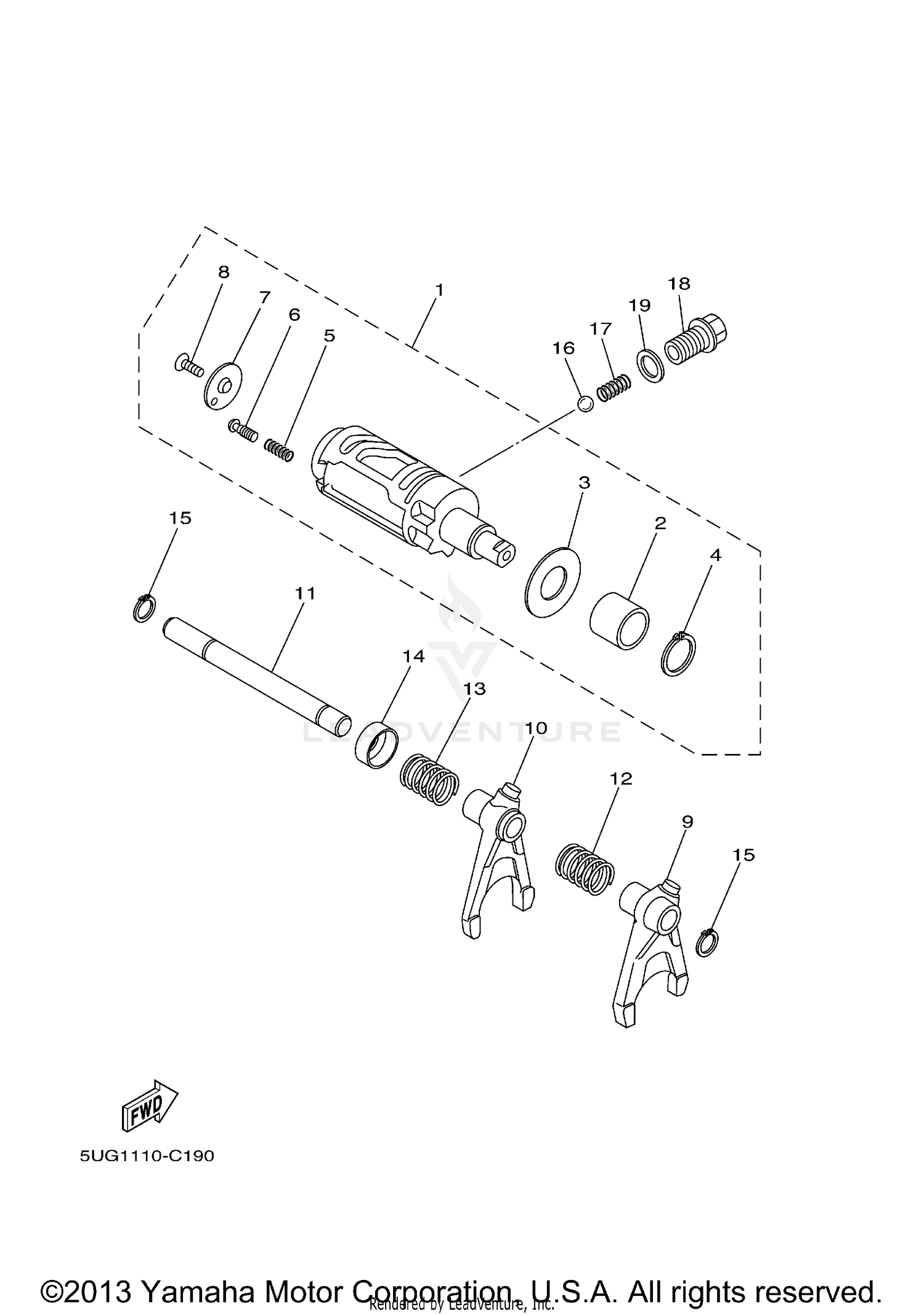

Shift Cam Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSY
5UG-18540-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-2007S-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-20015-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-06022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
POINT, NEUTRAL
5KM-18542-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SIDE 2
4UN-18566-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
90149-05321-00
Superseded by 90149-05245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FORK, SHIFT 1
5KM-18511-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FORK, SHIFT 2
5KM-18512-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, SHIFT FORK GUIDE 1
5KM-18531-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-12016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-16002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, SPRING
5KM-18323-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
93503-08007-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10353-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-14367-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-14194-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
