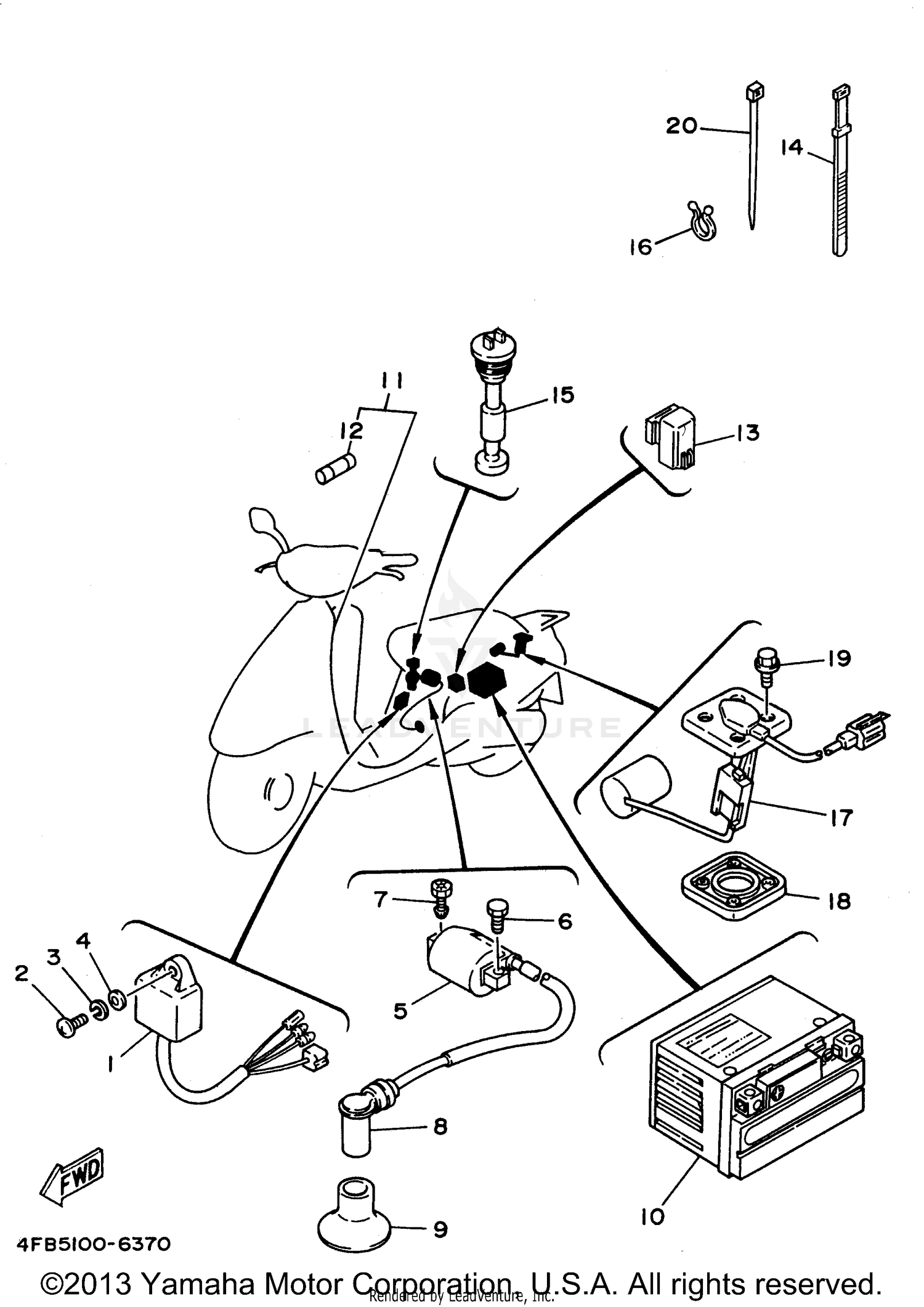

1999 Yamaha RIVA JOG ELECTRICAL 2 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
3KJ-85540-10-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,PAN HEAD
98517-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
3KJ-82310-01-00
Superseded by 3KJ-82310-13-00
|
$44.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97017-06016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, HEXAGON
90153-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG CAP ASSY
56J-82370-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, PLUG CAP
3KJ-82372-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
GTX4LBS GS BATTERY
BTY-YT4LB-S0-00
Superseded by GTX-4LBS0-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE HARNESS ASSY
3SA-82590-00-00
Superseded by 3SA-82590-01-00
|
$143.99 | ||
|
Unavailable |
|||
|
#12
FUSE
27V-82151-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY ASSY (29U-93)
29U-81950-93-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, SWITCH CORD
437-83936-11-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL LEVEL GAUGE ASSY
53L-85720-00-00
Superseded by 53L-85720-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90465-18147-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENDER UNIT ASSEMBLY, FUEL METE
3KJ-85752-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, SENDER UNIT
5G3-85753-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-05071-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND
90464-13080-00
Superseded by 1UA-82591-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
