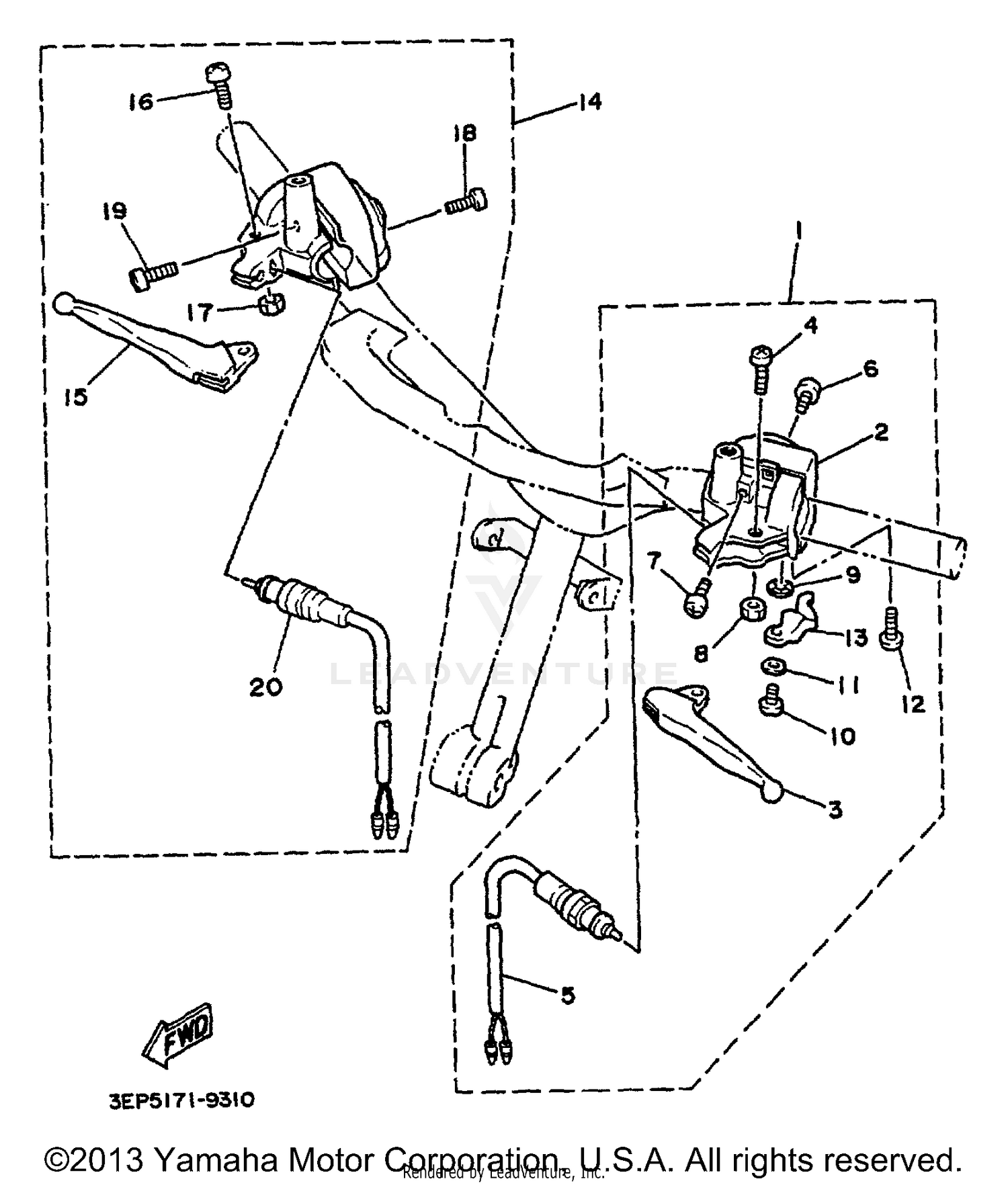

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER HOLDER ASSY (LEFT)
2EK-82910-10-00
|
|||
|
Unavailable |
|||
|
#2
SWITCH, HANDLE 3
13T-83973-30-00
|
$85.99 | ||
|
Unavailable |
|||
|
#3
LEVER 1
14T-83912-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-05119-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRONT STOP SWITCH AS
3E1-83980-02-00
Superseded by 3E1-83980-09-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98511-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95707-05300-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, STARTER
3L4-83943-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
98906-04010-00
Superseded by 98907-04010-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, STARTER
4K3-83941-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER HOLDER ASSY (RIGHT)
3EP-82920-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER 2
14T-83922-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-05119-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
NUT, U
95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#20
FRONT STOP SWITCH AS
3E1-83980-02-00
Superseded by 3E1-83980-09-00
|
$34.99 | ||
|
Unavailable |
|||
