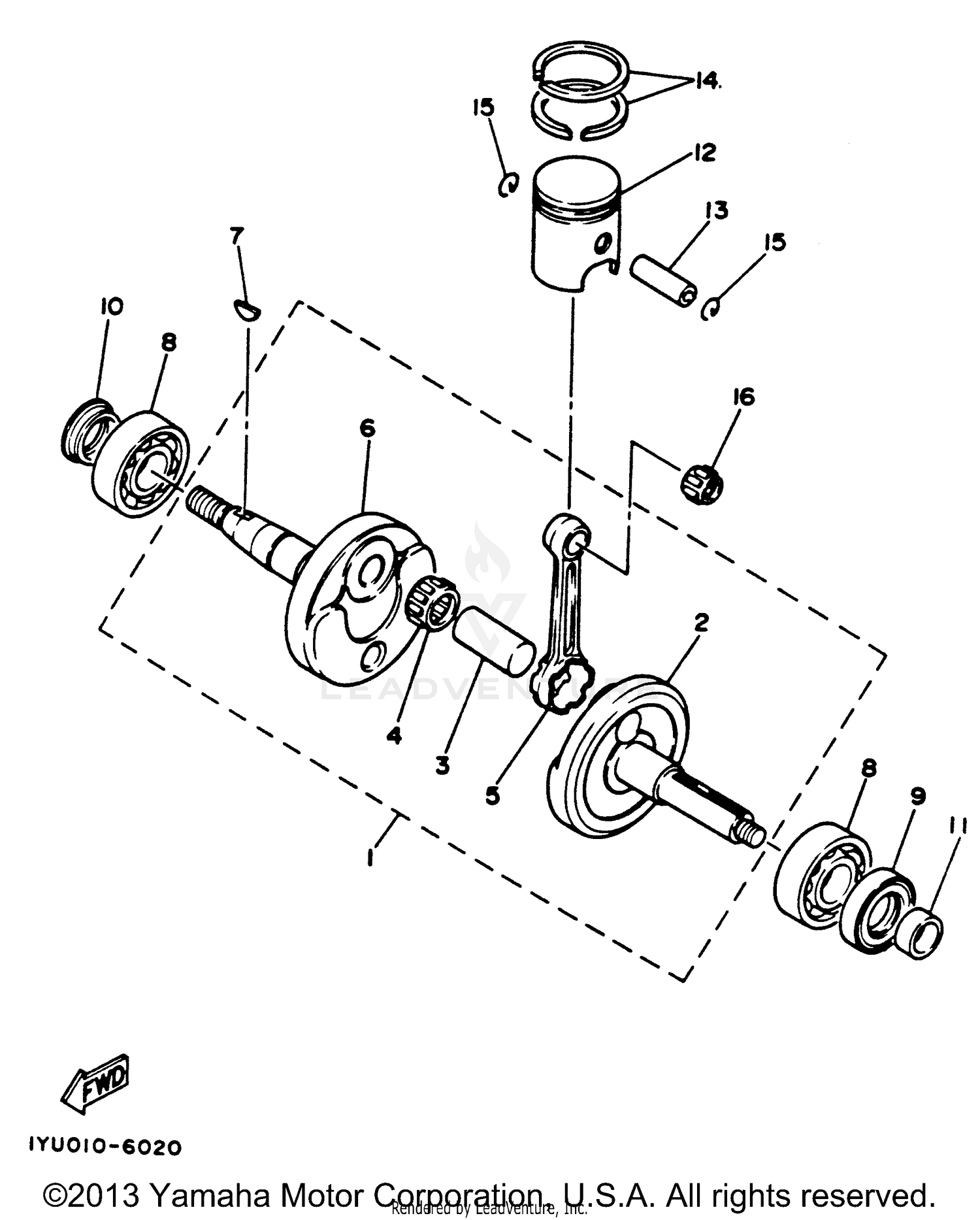

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
1YU-11400-00-00
|
$266.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1YU-11412-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#3
PIN, CRANK 1
1YU-11681-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93310-416N7-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
2E9-11651-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANK 2
14T-11422-01-00
|
$101.99 | ||
|
Unavailable |
|||
|
#7
KEY, WOODRUFF
90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20468-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-20371-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93101-20138-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-160R6-00
|
$16.49 | ||
|
Unavailable |
|||
|
#12
PISTON (0.50MM O/S)
3CP-11636-00-00
Superseded by 3CP-11636-09-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
3CP-11631-00-96
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PISTON
2E9-11633-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#14
PISTON RING SET (STD)
260-11601-02-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM OS)
260-11601-22-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93450-11021-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93310-210M0-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
