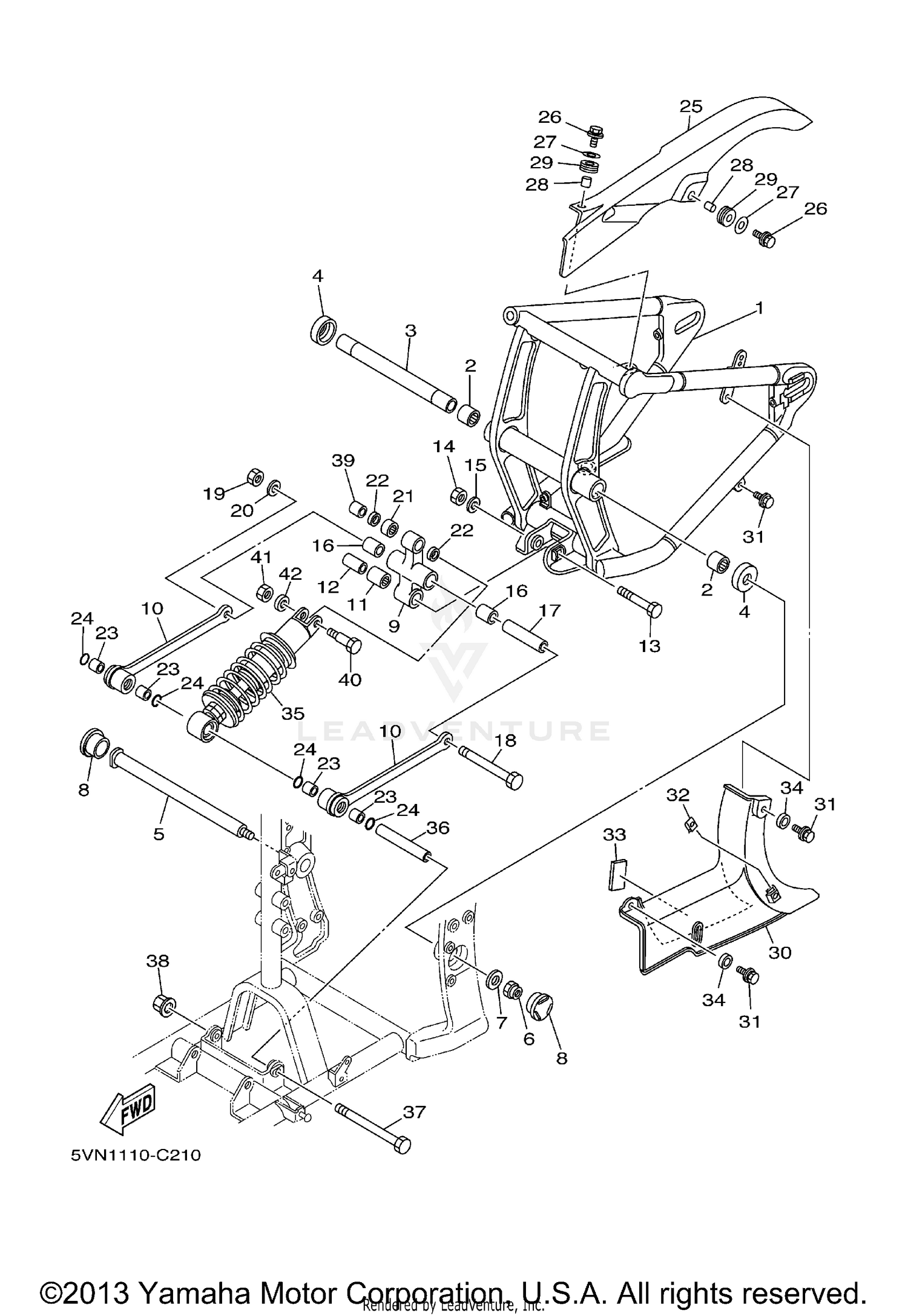

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5VN-22110-00-00
Superseded by 5VN-22110-01-00
|
$546.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93317-42550-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
4WM-22184-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 1
5JJ-22128-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, WHEEL
3GM-25381-A0-00
Superseded by 3GM-25381-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-186M4-00
Superseded by 90201-18264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER
4KM-2219X-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, RELAY
4WM-2217A-00-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM 1
4WM-2217M-10-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93317-42060-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-122J6-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-12002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95617-12100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-127J6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93317-41761-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-126T1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-12673-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95617-12100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93317-31771-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, BIMETAL FORMED
90384-18157-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-18397-00
Superseded by 93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CASE, CHAIN
5JA-22311-00-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (SMALL HEAD)
95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-06070-00
Superseded by 90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-064T3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CASE, CHAIN 2
5VN-22312-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER
22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SHOCK ABSORBER ASSY, REAR
5GA-22210-00-00
|
$488.99 | ||
|
Unavailable |
|||
|
#36
COLLAR
90387-1214E-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
90101-12695-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, SELF-LOCKING
95607-12200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-127W0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
