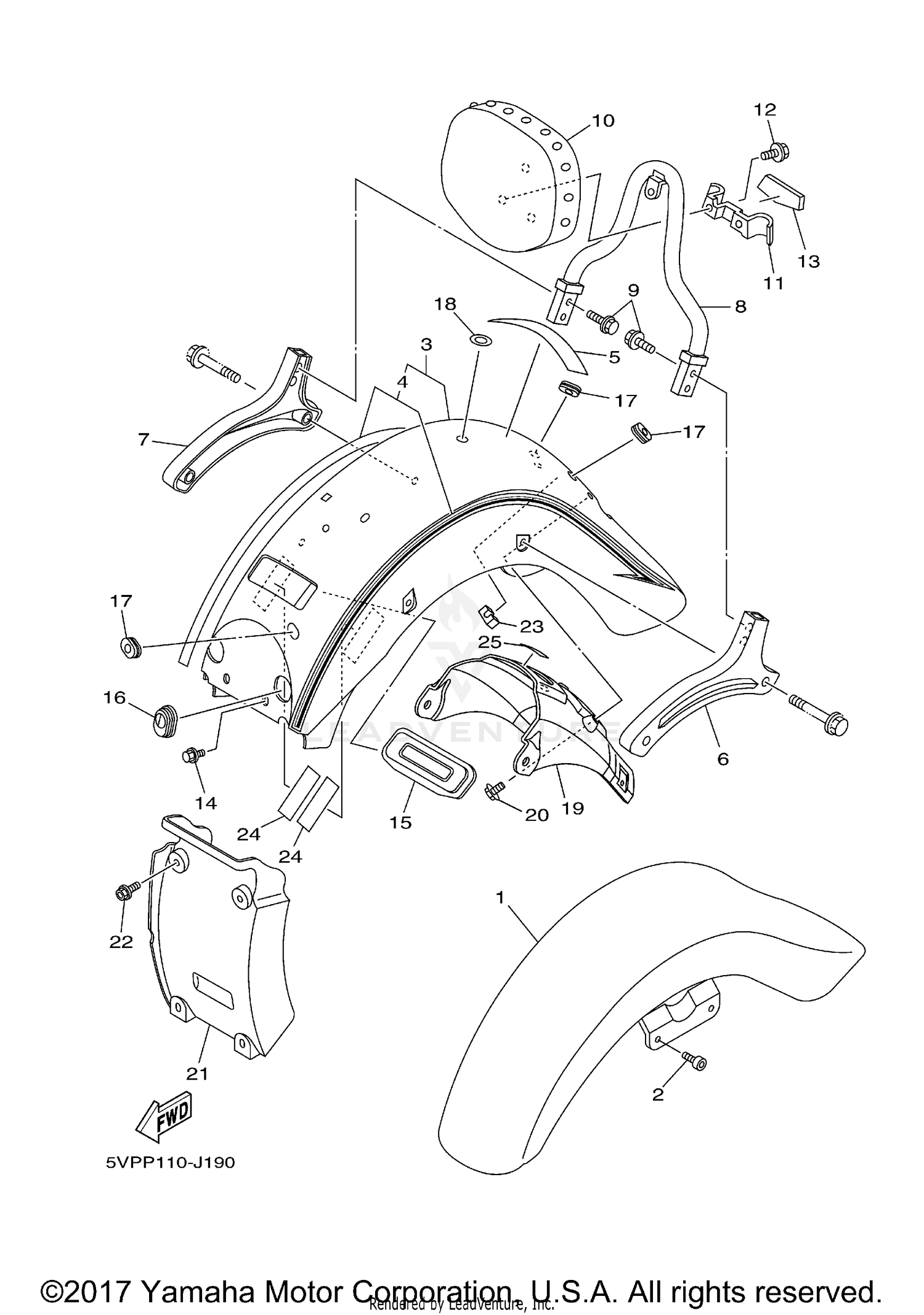

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
5VN-YK215-00-P6
Superseded by 5VN-YK215-01-P6
|
$396.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
91314-08025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
REAR FENDER COMP.
5VN-Y2161-R0-P0
|
$1,064.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRAPHIC SET, REAR FENDER
5VR-2165A-20-00
|
$97.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM, YAMAHA
1D6-2153E-00-00
Superseded by 3WF-2153E-71-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP 1
5GA-2164A-00-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP 2
5GA-2164E-00-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY 1
5GA-2164F-00-00
|
$383.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLG.(SMALL HEAD)
95024-08012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BACK REST ASSY
5GA-2840F-30-00
|
$168.15 | ||
|
Unavailable |
|||
|
#11
STAY 2
5GA-2164G-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
EMBLEM
5GA-24786-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
4WM-21649-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 1
4WM-21638-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-01015-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL 2
5VN-21735-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, REAR
5VN-21643-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-06048-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUARD, MUD
4WM-21629-00-P8
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, WITH WASHER
90119-06226-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER 2
5VN-21639-10-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTOR
5PW-23472-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER
4U5-2317J-00-00
Superseded by 22F-2139X-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
