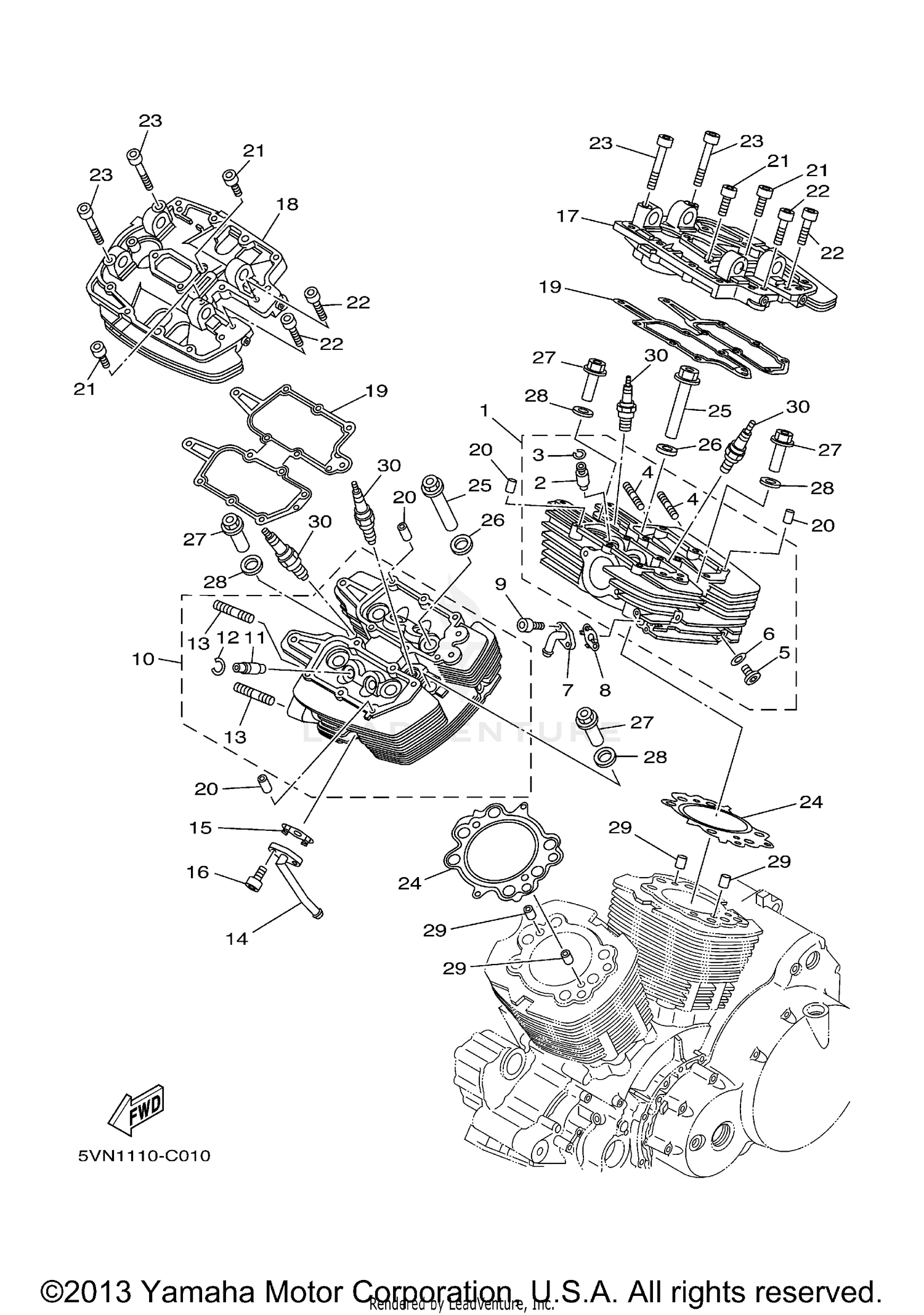

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5VN-11101-00-00
|
$966.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
4WM-11133-10-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
95617-08625-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-12112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 3
5VN-14873-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
5PX-14815-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER HEAD ASSY
5VN-11101-10-00
|
$735.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, VALVE 1
4WM-11133-10-00
|
$54.99 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
95617-08625-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
PIPE 4
5VN-14874-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
5PX-14815-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
HEAD, CYLINDER 3
5VN-11131-00-00
|
$290.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HEAD, CYLINDER 4
5VN-11141-00-00
|
$436.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, CYLINDER HEAD 2
5VN-11182-00-00
Superseded by 5VN-11182-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-065F8-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-061F7-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-08033-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, CYLINDER HEAD 1
5PX-11181-00-00
Superseded by 5PX-11181-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HOLDING
5PX-11171-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, HOLDING 1
5VN-11175-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HOLDING
4WM-11172-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, HOLDING
4WM-11176-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-062T5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
DPR7EA9 NGK SPLUG
94701-00379-00
Superseded by DPR-7EA90-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#
DPR7EA9 NGK SPLUG
94701-00262-00
Superseded by DPR-7EA90-00-00
|
$3.49 | ||
|
Unavailable |
|||
