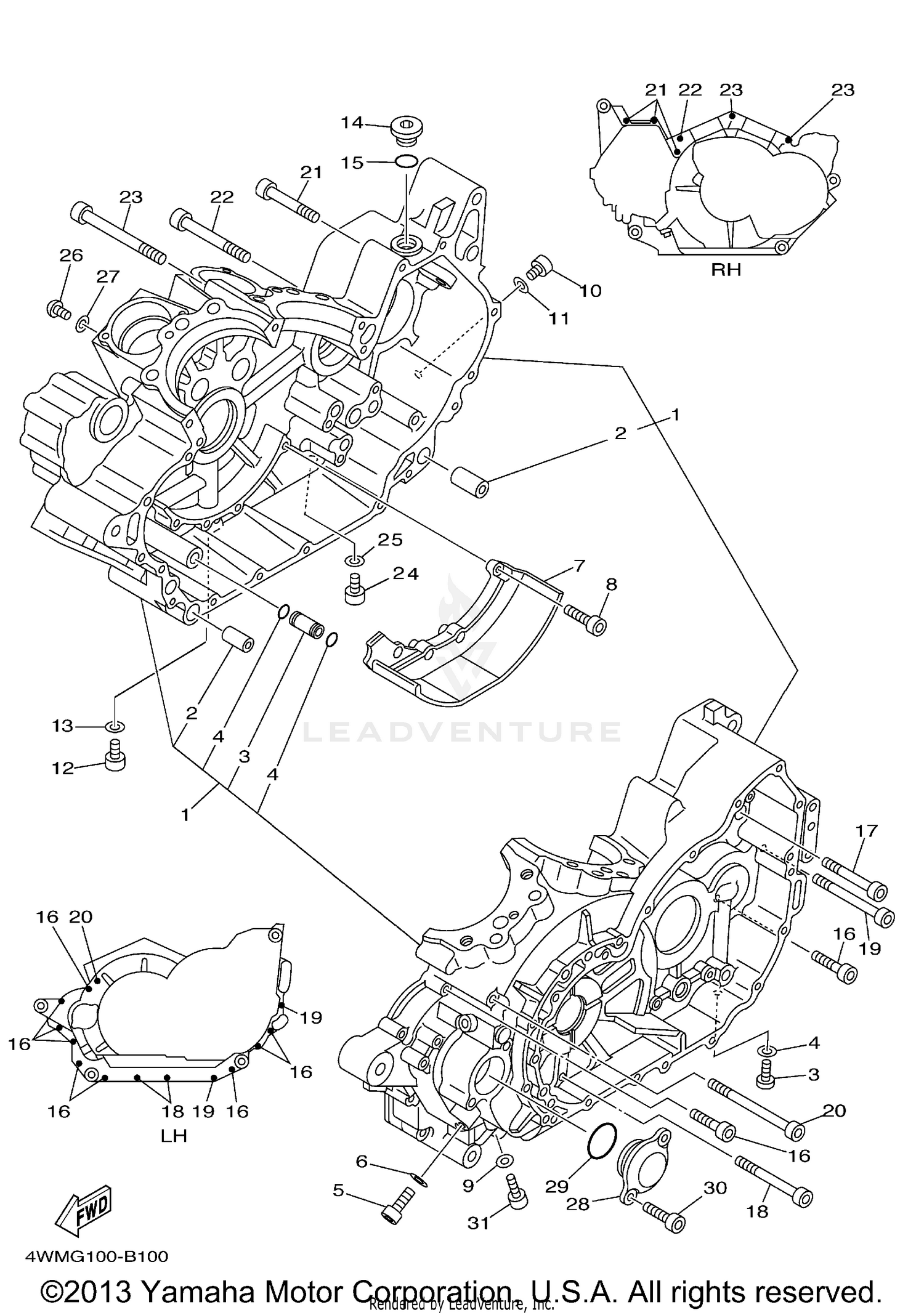

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
4WM-15100-01-00
Superseded by 4WM-15100-03-00
|
$1,088.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE 1
4WM-15138-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-10001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-08014-00
Superseded by 91314-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BAFFLE 1
4WM-15123-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90110-06044-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-05126-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-05126-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91314-08012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Unavailable |
|||
|
#14
PLUG
4H7-15189-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-20573-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91314-06075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91317-06085-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91314-06105-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91314-06060-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
BOLT
91314-08080-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91314-08100-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Unavailable |
|||
|
#26
BOLT, BUTTON HEAD
92014-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-05126-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
COVER, CAP
4WM-15417-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#29
O-RING
93210-37532-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-05013-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Unavailable |
|||
