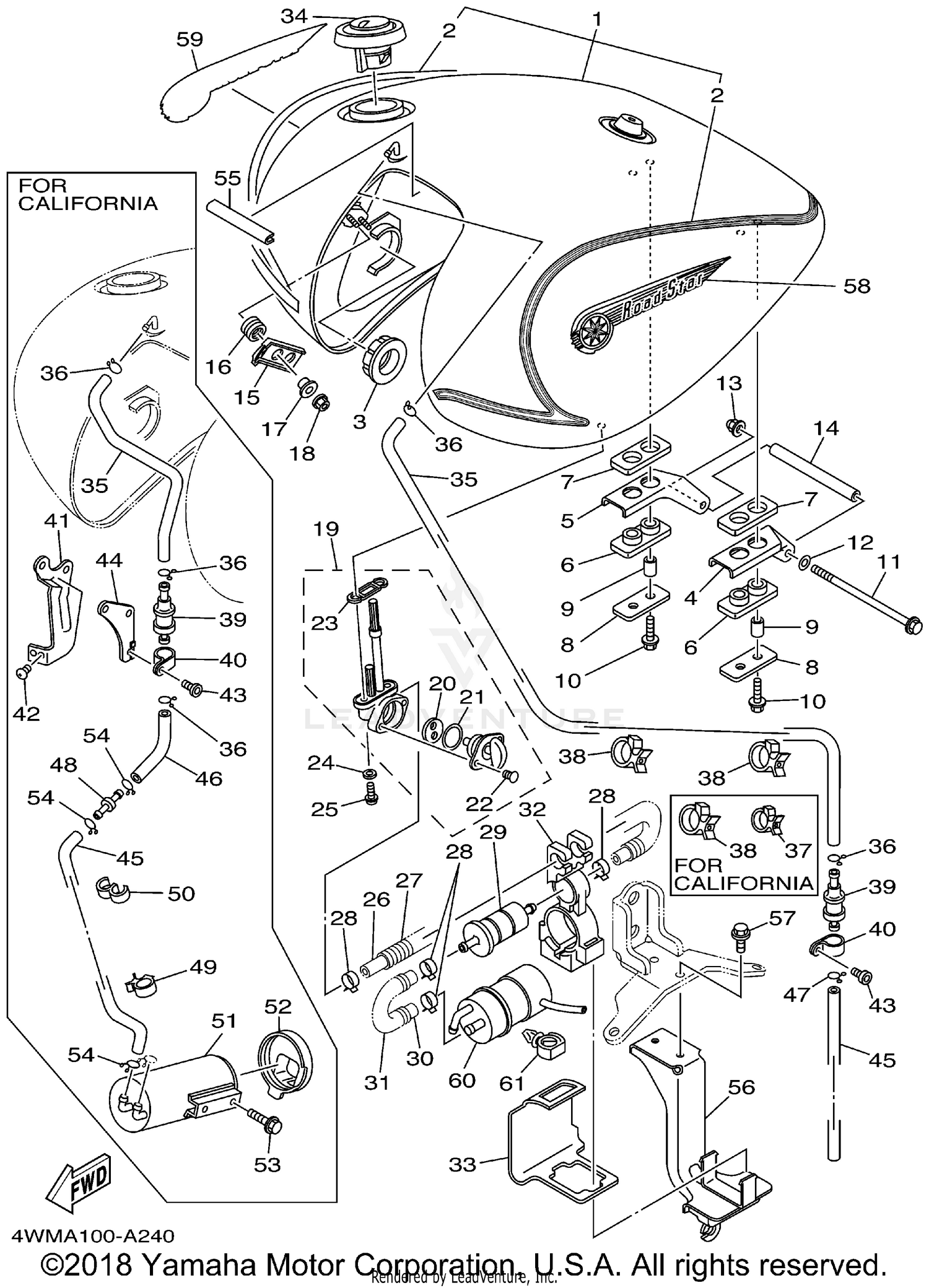

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4WM-Y2410-31-X9
|
$1,050.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
4WM-Y2410-31-X7
|
$1,050.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
4WM-Y2410-31-W1
|
$1,050.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
4WM-24240-80-00
|
$366.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5GA-24240-30-00
|
$306.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5GA-24240-40-00
|
$326.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 1
2YK-24181-10-00
Superseded by 4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FUEL TANK 1
4WM-24191-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
BRACKET, FUEL TANK 2
4WM-24192-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
2GH-24183-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
2GH-24186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-06125-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06553-00
|
|||
|
Unavailable |
|||
|
#13
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-0615R-00
|
$4.25 | ||
|
Unavailable |
|||
|
#15
BRACKET, FUEL TANK 1
4WM-24291-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
4WM-24339-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-050T5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUEL COCK ASSY 1
4WM-24500-00-00
Superseded by 4WM-24500-10-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, FUEL 1
4WM-24311-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING
4WM-24393-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
FILTER ASSY
1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE 2
4WM-24312-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING
4WM-24394-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND 1
4WM-24398-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER
4WM-24217-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP ASSY
4NK-24602-10-00
Superseded by 4NK-24602-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE 10
4WM-24321-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#35
PIPE 10
4WM-24321-10-00
|
$36.99 | ||
|
Unavailable |
|||
|
#36
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-25217-00
|
$3.90 | ||
|
Unavailable |
|||
|
#39
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Unavailable |
|||
|
#41
BRACKET 4
4WM-2148X-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN HEAD
98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, BIND
98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
STAY
4WM-24662-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#45
PIPE 11
4WM-24322-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#45
HOSE (L400)
90445-116K9-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE 12
4WM-24323-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#47
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#48
JOINT
4XY-14568-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-15192-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
CLAMP
90464-10075-00
Superseded by 90464-09M31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CANISTER ASSY
4WM-24170-00-00
|
$507.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
COVER, CANISTER
4WM-2419E-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT, FLANGE
90105-06009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#55
MOLD, FUEL TANK
4GY-24188-00-00
Superseded by 1HX-24188-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BRACKET, FUEL PUMP
4WM-24491-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#58
EMBLEM
4WM-2416B-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
EMBLEM
4WM-2417B-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
FUEL PUMP COMP
4WM-13907-00-00
Superseded by 4WM-13907-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
CLAMP
90464-13249-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
