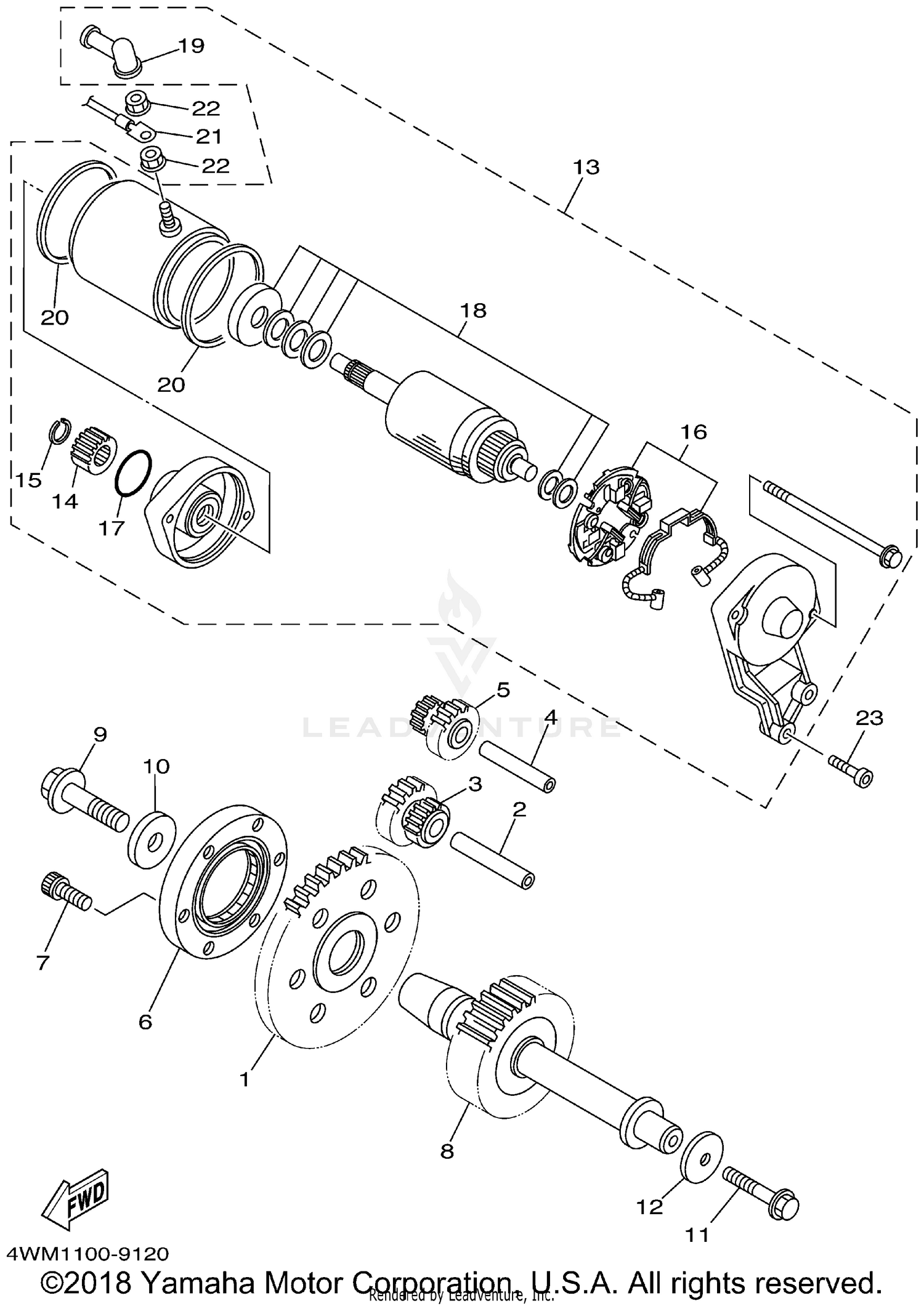

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR 3
4WM-15515-00-00
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 2
4WM-15522-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, IDLER 2
4WM-15517-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT 1
4WM-15521-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, IDLER 1
4WM-15512-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER ONE-WAY ASSY
4WM-15590-00-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90110-08212-00
Superseded by 91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT
4WM-15659-00-00
Superseded by 5VN-15659-00-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WASHER BASED
90105-12584-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-121H0-00
Superseded by 90201-12191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-08045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
4WM-15653-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
MOTOR ASSY
4WM-81890-00-00
Superseded by 4WM-81890-01-00
|
$740.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, STARTING MOTOR
1VJ-15511-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-11024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRUSH SET
3AJ-81801-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
1FK-81847-00-00
Superseded by 93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER KIT
3HE-81809-00-00
Superseded by 3AJ-81809-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP
5H0-81871-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#20
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CORD, STARTER MOTOR
4WM-81815-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
4XV-8182A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
