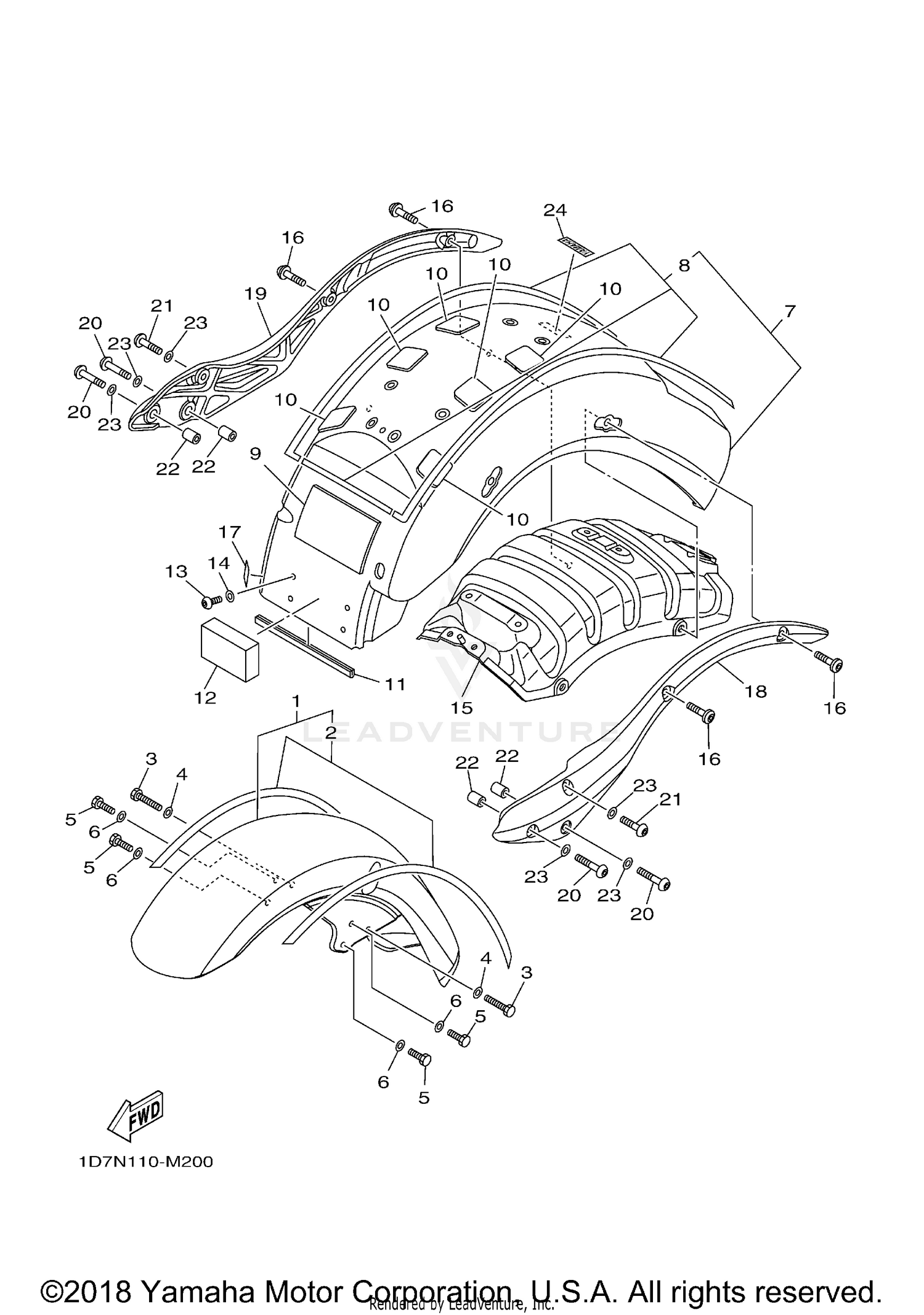

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
1D7-Y2151-N0-P4
|
$641.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4P0-21570-60-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97022-08030-00
Superseded by 97017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92902-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97022-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92902-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#7
REAR FENDER COMP.
1D7-Y2161-S0-PC
|
$1,021.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRAPHIC SET, REAR FENDER
4P0-2165A-60-00
|
$241.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 2
5PX-21779-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL
5PX-21669-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
MOLD, FUEL TANK
1D7-24188-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER 2
1D7-21639-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BUTTON HEAD
90111-06065-00
Superseded by 92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, REAR
1D7-21643-00-00
|
$426.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. SOCKET BUTTON
90111-08033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL 1
3FY-21575-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, FENDER 1
1D7-21613-00-00
|
$955.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, FENDER 2
1D7-21614-00-00
|
$955.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92014-10050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
90111-10025-00
Superseded by 92014-10040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,PLATE
90201-10M63-00
Superseded by 90201-10081-00
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
EMBLEM, YAMAHA
1D6-2153E-00-00
Superseded by 3WF-2153E-71-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
