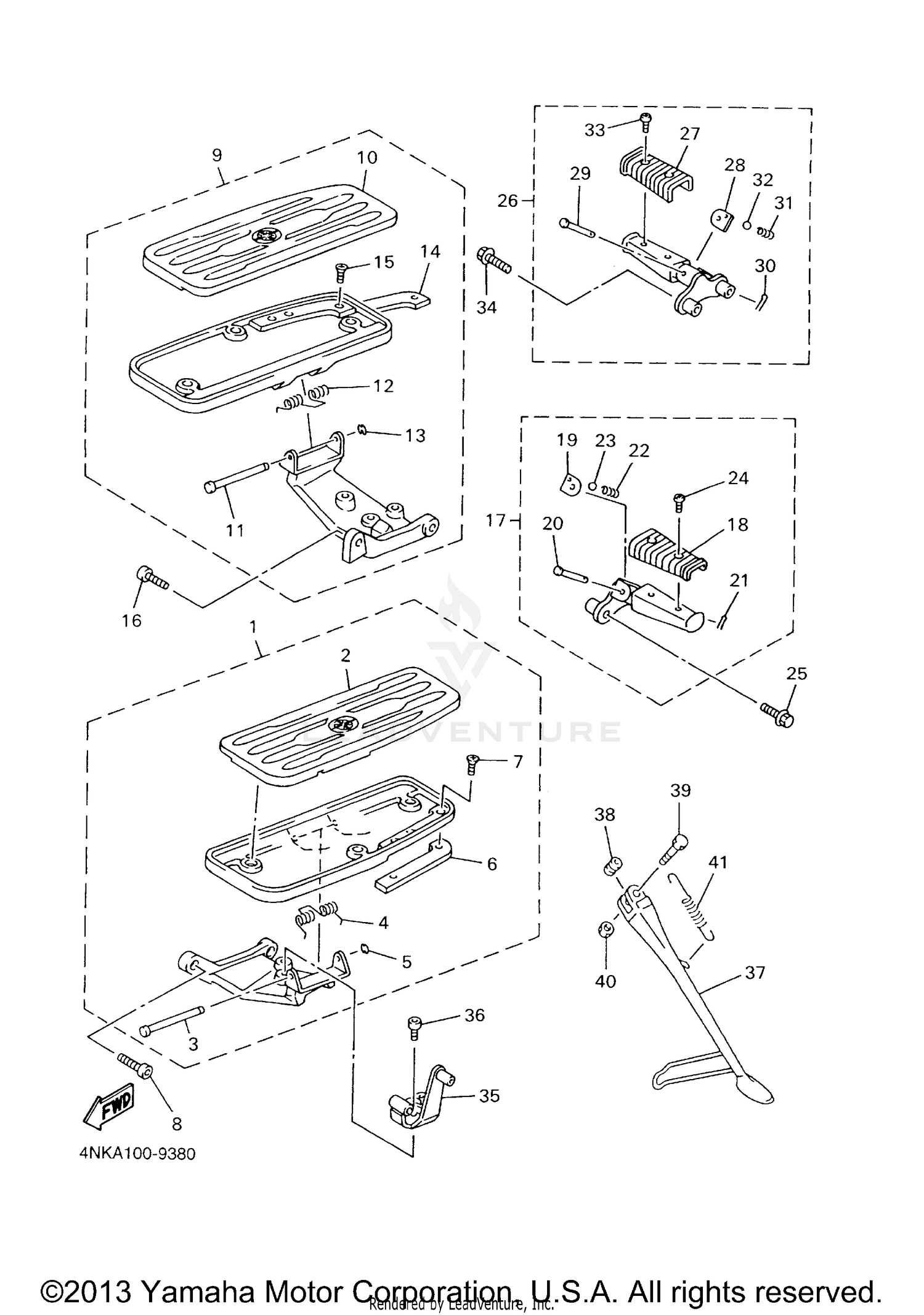

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FOOTREST ASSY (LEFT)
4XY-27410-00-00
Superseded by 4XY-27410-10-00
|
$230.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FOOTREST
4XY-27413-00-00
Superseded by 4XY-27413-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT
4NK-27427-00-00
Superseded by 3D8-27427-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, RETURN
4NK-27426-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99001-06600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOLE 1
4NK-27496-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98780-05010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90110-10161-00
Superseded by 91317-10030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRONT FOOTREST ASSY (RIGHT)
4XY-27420-00-00
Superseded by 4XY-27420-10-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FOOTREST
4XY-27423-00-00
Superseded by 4XY-27423-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT
4NK-27427-00-00
Superseded by 3D8-27427-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
SPRING, RETURN
4NK-27426-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
CIRCLIP
99001-06600-00
|
$0.99 | ||
|
Unavailable |
|||
|
#14
MOLE 2
4NK-27497-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT HEAD
98780-05010-00
|
$6.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90110-10161-00
Superseded by 91317-10030-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
REAR FOOTREST ASSY 1
4NK-27430-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#18
COVER, REAR FOOTREST
1NH-27433-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPECIAL
2NT-27437-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
91701-06032-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-12743-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
93501-04011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW,PAN
98517-06012-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95024-08030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
REAR FOOTREST ASSY 2
4NK-27440-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#27
COVER, REAR FOOTREST
1NH-27433-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#28
WASHER, SPECIAL
2NT-27437-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#29
PIN, CLEVIS
91701-06032-00
|
$8.99 | ||
|
Unavailable |
|||
|
#30
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.20 | ||
|
Unavailable |
|||
|
#31
SPRING, COMPRESSION
90501-12743-00
|
$4.06 | ||
|
Unavailable |
|||
|
#32
BALL
93501-04011-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
SCREW,PAN
98517-06012-00
|
$3.70 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE
95024-08030-00
|
$8.99 | ||
|
Unavailable |
|||
|
#35
BRACKET 3
4NK-27443-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
91317-08014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
STAND, SIDE
4NK-27311-01-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-1007K-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90101-10776-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SELF-LOCKING
90185-10037-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, TENSION
90506-29358-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
