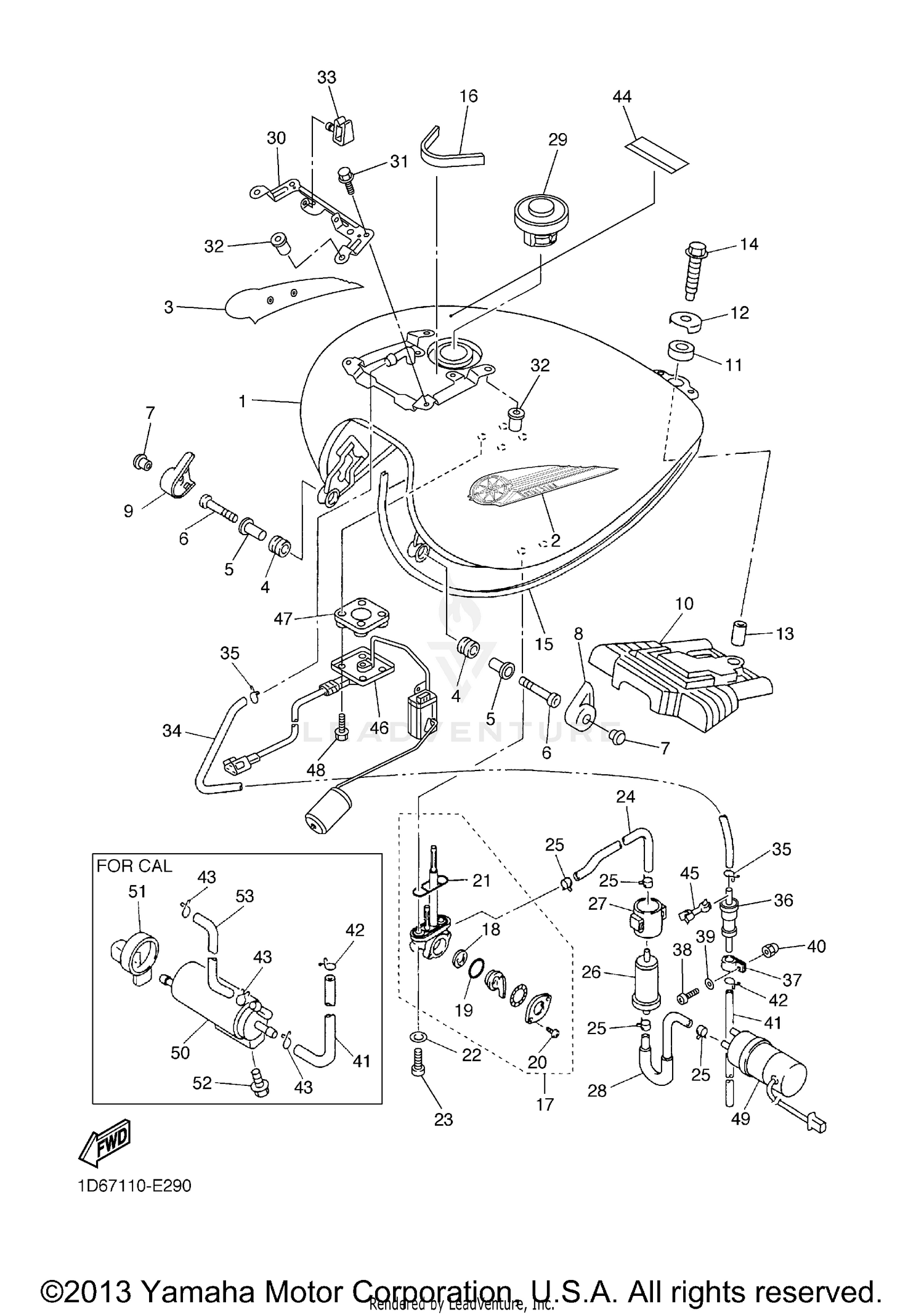

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1D6-YK241-10-P1
|
$972.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM
1D6-2416B-30-00
|
$140.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM
1D6-2417B-30-00
|
$140.99 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06091-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
2H9-23469-00-00
Superseded by 90338-05010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SIDE 1
1D6-24129-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SIDE 2
1D6-24139-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 2
4XY-24182-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 3
4XY-24183-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL
42X-24186-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-0813V-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-08002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
MOLD, FUEL TANK
1D6-24188-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
1D6-2414G-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUEL COCK ASSY 1
4WM-24500-02-00
Superseded by 4WM-24500-10-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE PACKING
3AC-24523-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, COCK
3AJ-24534-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
4X8-24512-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE, FUEL 1
4XY-24311-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FILTER ASSY
1FK-24560-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, FILTER
1FK-24566-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 2
4NK-24312-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP ASSY
4NK-24602-11-00
Superseded by 4NK-24602-20-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY, FUEL TANK 1
1D6-24157-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95027-06010-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90179-05523-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
90464-06005-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE 10
1D6-24321-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-09002-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#36
ROLL OVER VALVE ASSY
5PX-24180-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, CROWN
90176-05054-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE (L400)
90445-116K9-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
LABEL, CAUTION
5GK-2118K-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-13103-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#46
SENDER UNIT ASSY, FUEL METER
1D6-85752-00-00
Superseded by 1D6-85752-01-00
|
$141.99 | ||
|
Unavailable |
|||
|
#47
GASKET, SENDER UNIT
5G3-85753-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, WITH WASHER
90119-05071-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
FUEL PUMP COMP.
1D6-13907-00-00
Superseded by 1D6-13907-01-00
|
$251.99 | ||
|
Unavailable |
|||
|
#50
CANISTER ASSY
4XY-24170-00-00
|
$644.75 | ||
|
Unavailable |
|||
|
#51
COVER, CANISTER
2JU-2419E-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#53
HOSE (L590)
90445-117K0-00
Superseded by 90445-113K3-00
|
$19.99 | ||
|
Unavailable |
|||
