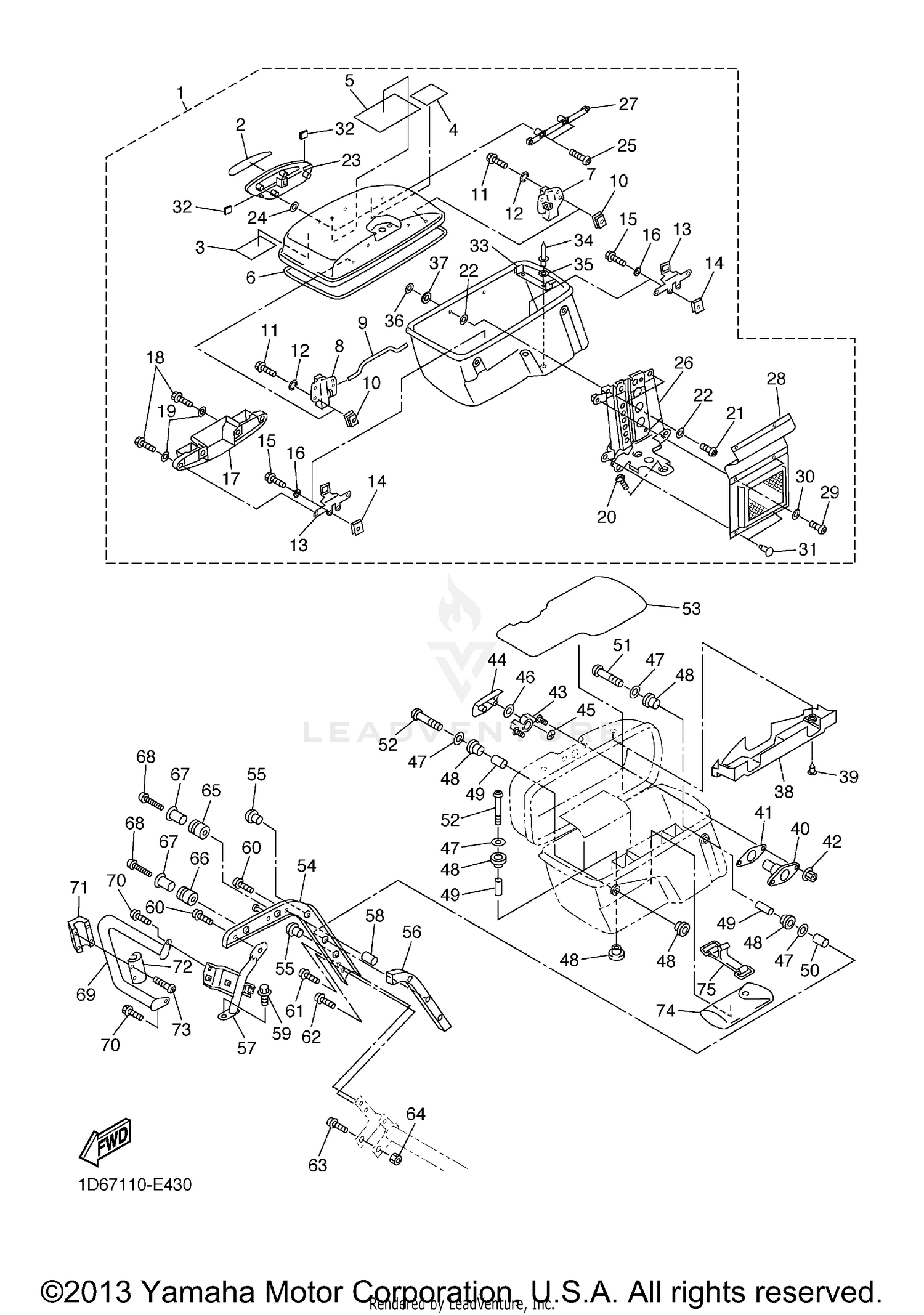

Saddlebag 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SADDLEBAG COMP, 2
2C9-Y2844-20-P0
|
$1,262.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SADDLEBAG COMP, 2
2C9-Y2844-30-P0
|
$1,262.65 | ||
|
Unavailable |
|||
|
#2
ORNAMENT 2
1D6-2847B-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, EPA (NON CALIFORNIA)
1D6-2179W-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 2 (CALIFORNIA)
1D6-2179R-10-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
PLATE, ROUTING 2
4LE-21686-A0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION
1D6-28446-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
SEAL 1
4XY-28428-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK 3
4XY-28494-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOOK 4
4XY-28495-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER
4XY-2841A-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON
97007-05012-00
Superseded by 97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK 2
4XY-28498-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#15
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#17
COVER 3
4XY-2843J-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-05008-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#20
SCREW, TAPPING
97707-50020-00
Superseded by 90167-05078-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-054K4-00
Superseded by 90201-05556-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HINGE 3
4XY-28454-10-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90202-08125-00
Superseded by 90202-10120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BUTTON HEAD
92017-05020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
REINFORCEMENT 2
4XY-28437-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE 5
4XY-2847H-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOPPER, OPEN
4XY-2845M-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#31
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE, RUBBER 4
4XY-28499-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE
4XY-2843L-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RIVET, BLIND
90267-32109-00
Superseded by 90267-32003-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SEAL 2
4XY-28429-00-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER LOCK ASSY 2
4XY-2849K-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
RIVET
90269-06081-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
LOCK ASSY 3
4XY-W2843-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE, RUBBER 5
4XY-2845J-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, U FLANGE
95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLATE 6
4XY-2849H-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER 6
4XY-2843C-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, SPRING
90183-04005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
DAMPER
4KJ-28371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
GROMMET
90480-20447-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
COLLAR
90387-084R5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
COLLAR
90387-0811N-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, BUTTON HEAD
92017-06055-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, BUTTON HEAD
92017-06035-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#53
SEAT 2
4XY-2848K-00-00
Superseded by 4XY-2848K-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
FRAME, SADDLEBAG 2
1D6-28474-00-00
|
$320.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
PLUG
90338-07259-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#56
DAMPER 2
1D6-28416-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
STAY, FRONT GUARD 2
4YE-28414-02-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
COLLAR
90387-0811N-00
|
$16.99 | ||
|
Unavailable |
|||
|
#59
BOLT, FLANGE
95807-08014-00
Superseded by 95817-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, BUTTON HEAD
90111-08021-00
Superseded by 92014-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT, BUTTON HEAD
92014-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT,FLANGE (JN5)
95827-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
NUT
95307-08800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
DAMPER, GRIP
1D6-2843A-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
DAMPER, GRIP 2
1D6-2843N-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
COLLAR
90387-08029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
BOLT, BUTTON HEAD
90111-08014-00
Superseded by 92017-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
GUARD, SADDLEBAG 2
4XY-2842K-00-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
BOLT, FLANGE
95814-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
REFLECTOR, REAR 1
4YE-85131-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
BRACKET, REFLECTOR 1
4YE-85132-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
SCREW, TAPPING
97707-30514-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
TOOL KIT
4XY-28100-01-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
BAND
55K-2811G-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
