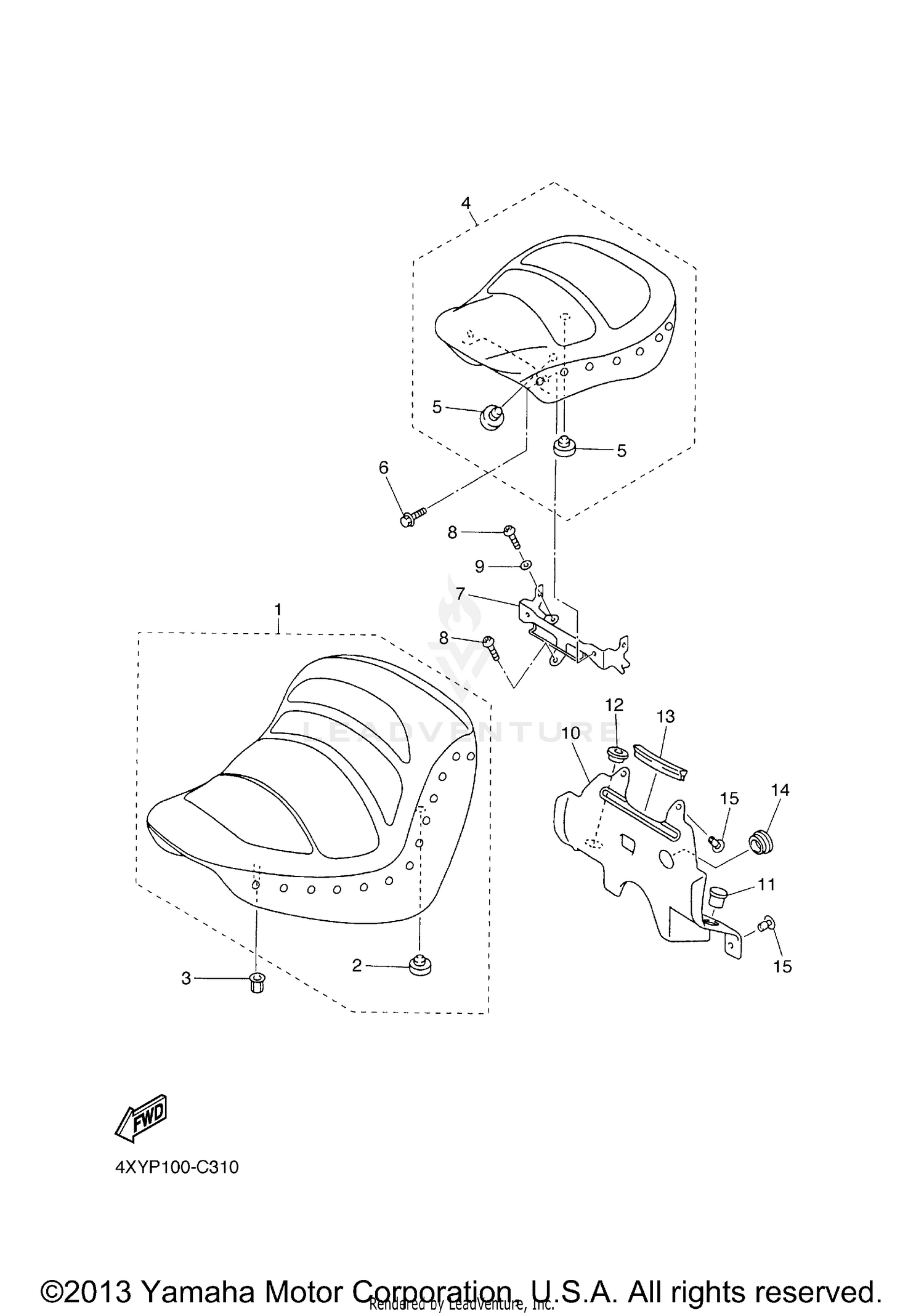

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
4XY-24710-50-00
|
$610.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANDEM SEAT ASSY
4XY-24750-50-00
|
$298.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT LEVER 1
4XY-2475H-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92017-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-062A8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER
4XY-24796-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG
90338-23172-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER 1
4XY-24847-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
4XY-2475M-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
90338-28239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET
90269-06083-00
Superseded by 90269-06001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
