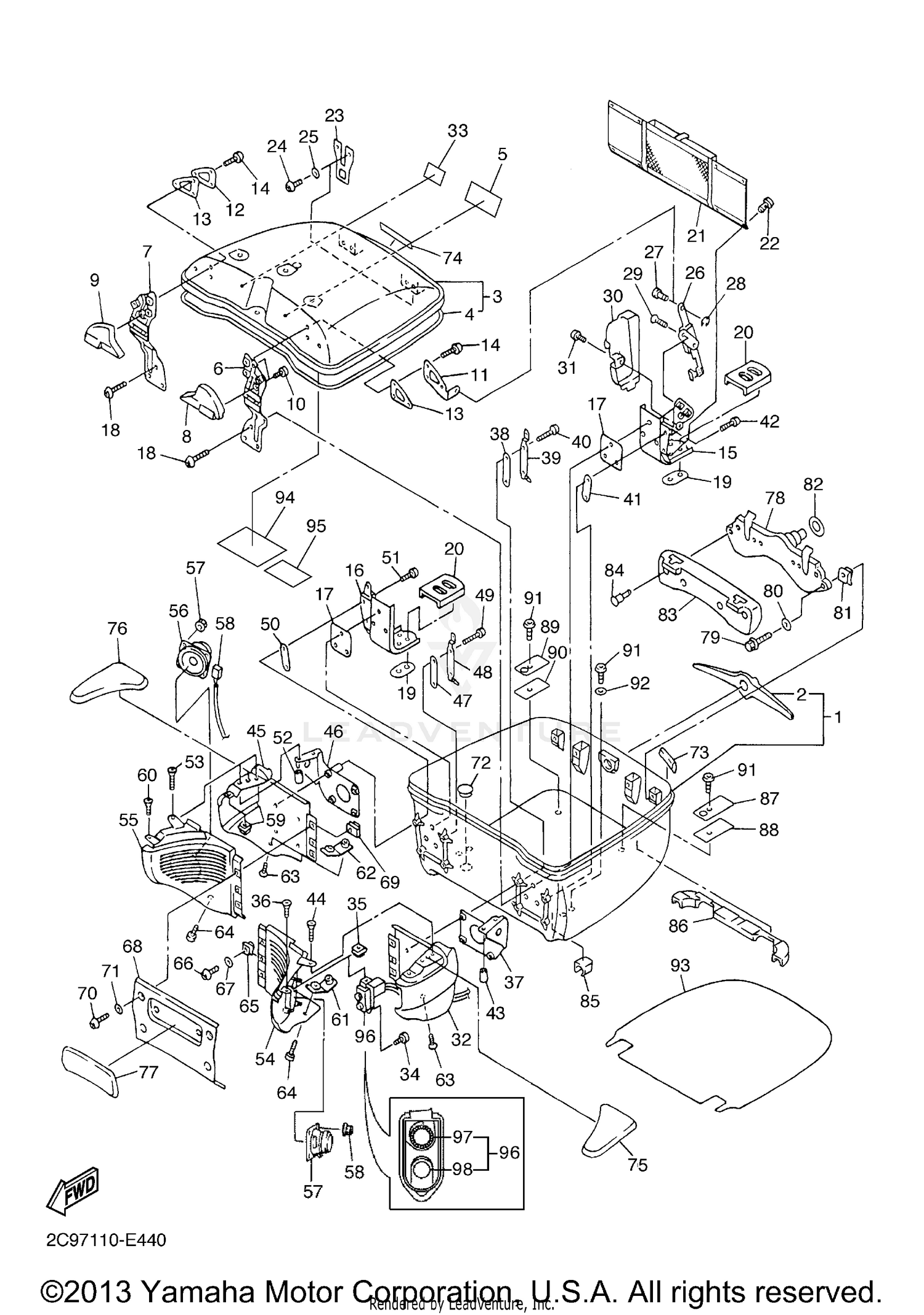

Travel Bag Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TRAVEL TRUNK LOWER SET
2C9-W2846-00-P0
|
$533.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM
4XY-28445-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TRAVEL TRUNK UPPER SET
4XY-W2847-00-P7
|
$761.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL 1
4XY-28428-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, EPA (NON CALIFORNIA)
1D6-2179W-10-00
|
$4.05 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 2 (CALIFORNIA)
1D6-2179R-20-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
HINGE 2
4XY-2845E-01-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HINGE 4
4XY-2849E-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HINGE 1
2C9-2846K-00-P0
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HINGE 2
2C9-2846L-00-P0
|
$25.99 | ||
|
Unavailable |
|||
|
#10
SCREW, TAPPING
97707-40010-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE 2
4XY-28487-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE 3
4XY-28497-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, RUBBER 3
4XY-28485-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 5
4XY-28486-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET 6
4XY-28496-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, RUBBER 2
4XY-28484-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-05020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, RUBBER 1
4XY-28483-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT 4
4XY-2848M-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT 3
4XY-2848L-00-00
|
$231.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOOK
4XY-28488-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, BUTTON HEAD
92017-05008-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER, OPEN
4XY-2845L-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, STOPPER
4XY-2842L-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
99001-04600-00
Superseded by 99080-04600-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, FLAT HEAD
98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER ASSY
4XY-2843F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
92017-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BASE, REMOCON.
2C9-8816E-00-P0
|
$108.99 | ||
|
Unavailable |
|||
|
#33
PLATE, ROUTING 2
4LE-21686-A0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, TAPPING
97707-40010-00
|
$0.25 | ||
|
Unavailable |
|||
|
#35
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, FLAT HEAD
98707-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET 1
4XY-28426-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE, RUBBER 8
4XY-2848J-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLATE, BOTTOM
4XY-2841R-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, BUTTON HEAD
92017-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE, RUBBER 7
4XY-2847J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Unavailable |
|||
|
#43
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, FLAT HEAD
98707-05020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BODY
2C9-2841L-00-P0
|
$113.99 | ||
|
Unavailable |
|||
|
#46
BRACKET 2
4XY-28436-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PLATE, RUBBER 8
4XY-2848J-00-00
|
$4.90 | ||
|
Unavailable |
|||
|
#48
PLATE, BOTTOM
4XY-2841R-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#49
BOLT, BUTTON HEAD
92017-06030-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
PLATE, RUBBER 7
4XY-2847J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#51
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Unavailable |
|||
|
#52
NUT
90179-05523-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
SCREW, FLAT HEAD
98707-05020-00
|
$6.49 | ||
|
Unavailable |
|||
|
#54
GRILLE, SPEAKER 1
2C9-88165-00-P0
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GRILLE, SPEAKER 2
2C9-88175-00-P0
|
$160.99 | ||
|
Unavailable |
|||
|
#56
SPEAKER 1
4XY-88161-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
CORD
4XY-88176-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#60
SCREW, FLAT HEAD
98707-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLATE,4
4XY-2846H-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
PLATE
4XY-28417-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
SCREW, COUNTERSUNK
90152-05009-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#64
SCREW, BIND
90154-05064-00
Superseded by 98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#66
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#67
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#68
COVER 4
2C9-2844J-00-P0
|
$65.99 | ||
|
Unavailable |
|||
|
#69
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#70
BOLT, BUTTON HEAD
92014-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
WASHER, PLATE
90202-05088-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#72
PLUG
90338-24260-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#73
SEAL
1JK-21268-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
07749150120 EMBLEM (YAMAHA)
3LS-21781-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
SEAT 5
4XY-2848N-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
SEAT 6
4XY-2848P-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
SEAT 7
4XY-2848R-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
LOCK ASSY 1
4XY-W2841-00-00
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#80
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#81
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#82
SEAL
4KN-2475M-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#83
COVER LOCK ASSY 2
4XY-28493-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
RIVET
90269-06001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#85
DAMPER 10
4XY-2847R-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#86
DAMPER 8
4XY-2847N-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#87
PLATE 7
4XY-2846P-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#88
PLATE, RUBBER 9
4XY-2849J-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#89
PLATE 8
4XY-2846R-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#90
PLATE, RUBBER 11
4XY-2847T-00-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#91
BOLT, BUTTON HEAD
92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#92
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#93
SEAT
4XY-2848H-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
LABEL, CAUTION
4XY-28446-01-00
Superseded by 4XY-28446-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
LABEL, TIRE
4NK-21668-A0-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#96
REMOTE CONTROL 1
4XY-88169-01-00
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
KNOB
4XY-88137-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
BUTTON 1
4XY-88157-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
