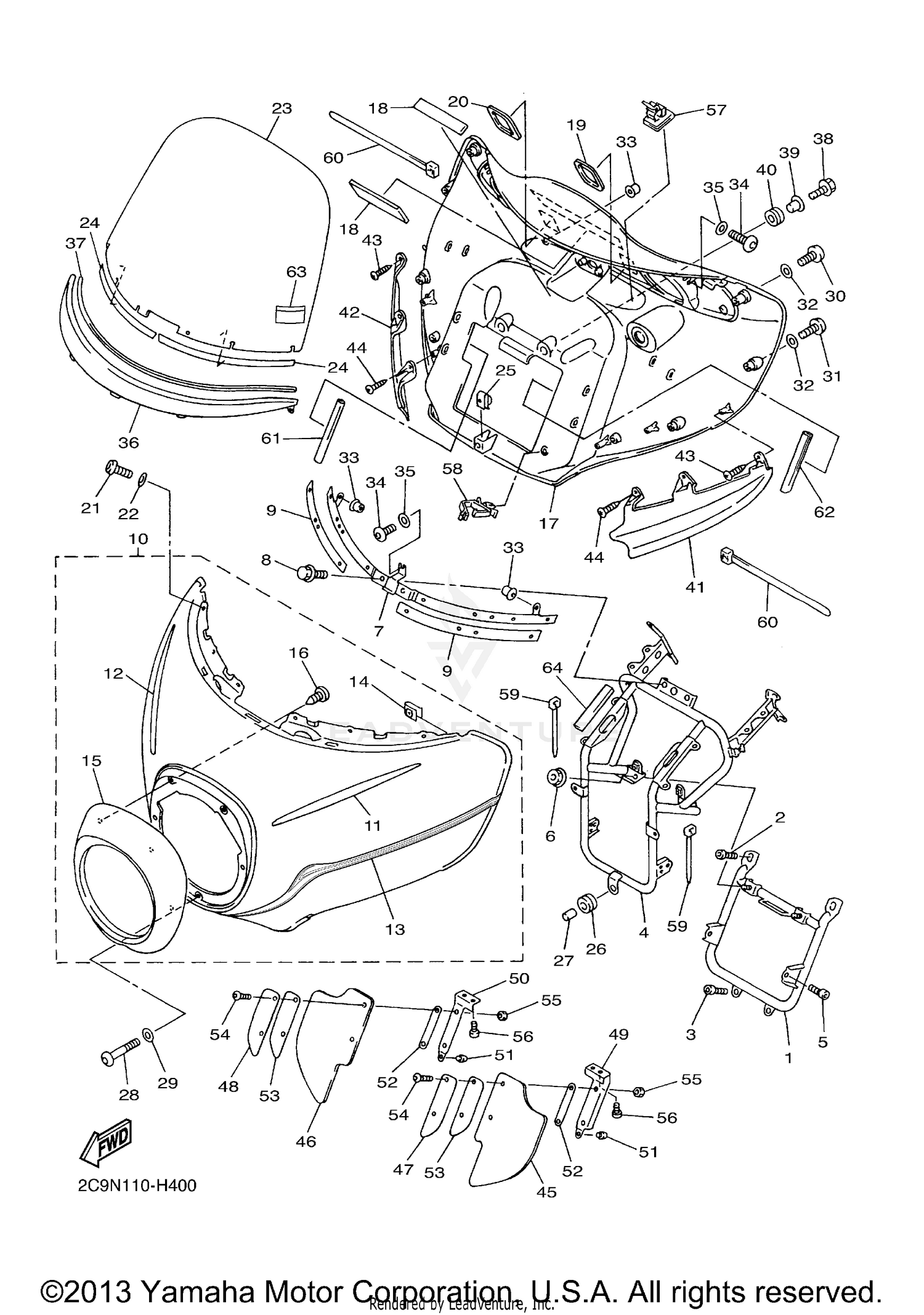

Cowling 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, MAIN 1
4XY-2831R-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, BUTTON HEAD
92017-10030-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY 1
4XY-28356-00-00
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91317-08014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,FLANGE (JN5)
95707-08500-00
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY 2
4XY-28357-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
4XY-28372-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY, FRONT UPPER 1
4XY-Y283G-L0-P4
|
$1,172.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MOLE 5
4XY-2834G-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MOLE 6
4XY-2834H-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GRAPHIC SET, COWLING
2C9-28390-60-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM, HEADLIGHT
4XY-2835A-00-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
97707-40014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COWLING ASSY
4XY-28350-00-P9
|
$784.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER 3
1AE-2834E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
4XY-2834F-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER 5
4XY-28267-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92017-05018-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-057H5-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREEN
4XY-2837U-01-00
|
$599.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL
4XY-28307-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPRING
90183-06023-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-12529-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-067N5-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, BUTTON HEAD
92014-06050-00
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-06007-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, BUTTON HEAD
92014-05035-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
92014-05025-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90202-05088-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-05523-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, BUTTON HEAD
92017-05012-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-057H5-00
|
$4.21 | ||
|
Unavailable |
|||
|
#36
MOLE 1
4XY-28345-00-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER
4XY-28371-00-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-067K8-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
GROMMET
90480-16233-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PROTECTOR 1
4XY-2834V-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PROTECTOR 2
4XY-2834W-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, TRUSS HEAD TAPPING
97707-50014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, TAPPING
97707-60016-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
PANEL 1
4XY-2835U-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PANEL 2
4XY-2835V-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PLATE 1
4XY-28396-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
PLATE 2
4XY-28397-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET 1
4XY-2836A-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BRACKET 2
4XY-2836E-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
DAMPER 2
5A8-21639-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
DAMPER 5
4XY-2837J-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
DAMPER 6
4XY-2837K-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, BUTTON HEAD
90111-06008-00
Superseded by 92014-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
NUT
95304-06700-00
Superseded by 95380-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, BUTTON HEAD
92014-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLAMP
90464-62085-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLAMP
90464-16021-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
BAND
1UA-82591-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLAMP
90464-20258-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
MOLE 3
4XY-28347-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
MOLD, FUEL TANK
4BP-24188-00-00
Superseded by 1HX-24188-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
DAMPER
4XY-88158-00-00
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
