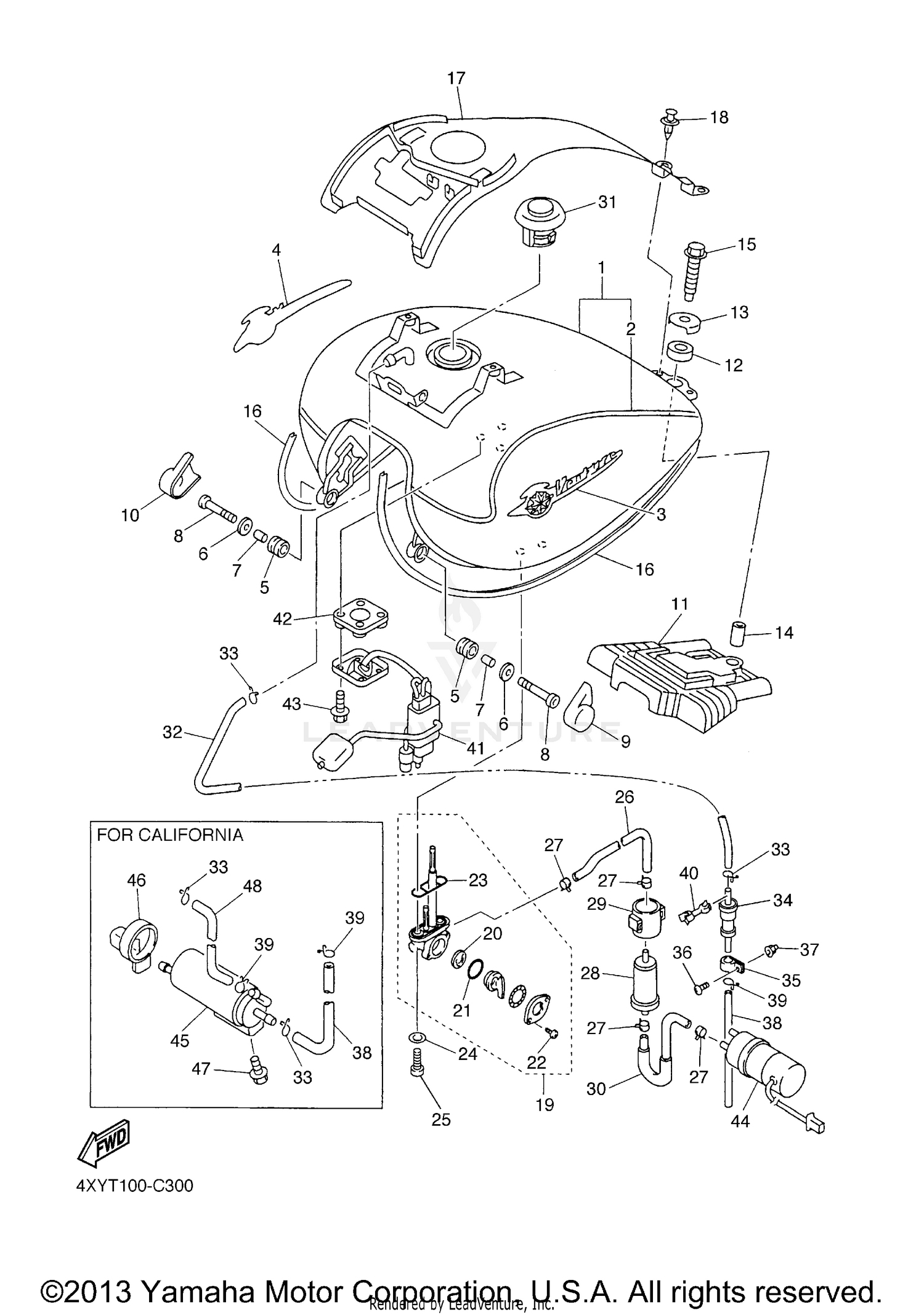

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4XY-Y2410-10-X1
|
$1,380.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
4XY-24240-70-00
|
$242.77 | ||
|
Unavailable |
|||
|
#3
EMBLEM
4XY-2416B-00-00
|
$116.27 | ||
|
Unavailable |
|||
|
#4
EMBLEM
4XY-2417B-00-00
|
$116.27 | ||
|
Unavailable |
|||
|
#5
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92017-06035-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SIDE 1
4XY-24129-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SIDE 2
4XY-24139-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#11
DAMPER, LOCATING 2
4XY-24182-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 3
4XY-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPECIAL
42X-24186-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-0813V-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
MOLD, FUEL TANK
4XY-24188-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, TOP
4XY-2171A-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET
90269-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUEL COCK ASSY 1
4WM-24500-01-00
Superseded by 4WM-24500-10-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE PACKING
4WM-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, FUEL 1
4XY-24311-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
FILTER ASSY
1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, FILTER
1FK-24566-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE 2
4NK-24312-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP ASSY
4NK-24602-10-00
Superseded by 4NK-24602-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 10
4XY-24321-02-00
|
$166.99 | ||
|
Unavailable |
|||
|
#33
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
ROLL OVER VALVE ASSY
5PX-24180-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, BIND
98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, CROWN
90176-05054-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE (L400)
90445-116K9-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#40
CLAMP
90464-13103-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#41
SENDER UNIT ASSY, FU
4XY-85752-00-00
Superseded by 4XY-85752-11-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GASKET, SENDER UNIT
5G3-85753-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, WITH WASHER
90119-05071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
FUEL PUMP COMP.
4NK-13907-00-00
Superseded by 4NK-13907-01-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CANISTER ASSY
4XY-24170-00-00
|
$644.75 | ||
|
Unavailable |
|||
|
#46
COVER, CANISTER
2JU-2419E-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE (L590)
90445-117K0-00
Superseded by 90445-113K3-00
|
$19.99 | ||
|
Unavailable |
|||
