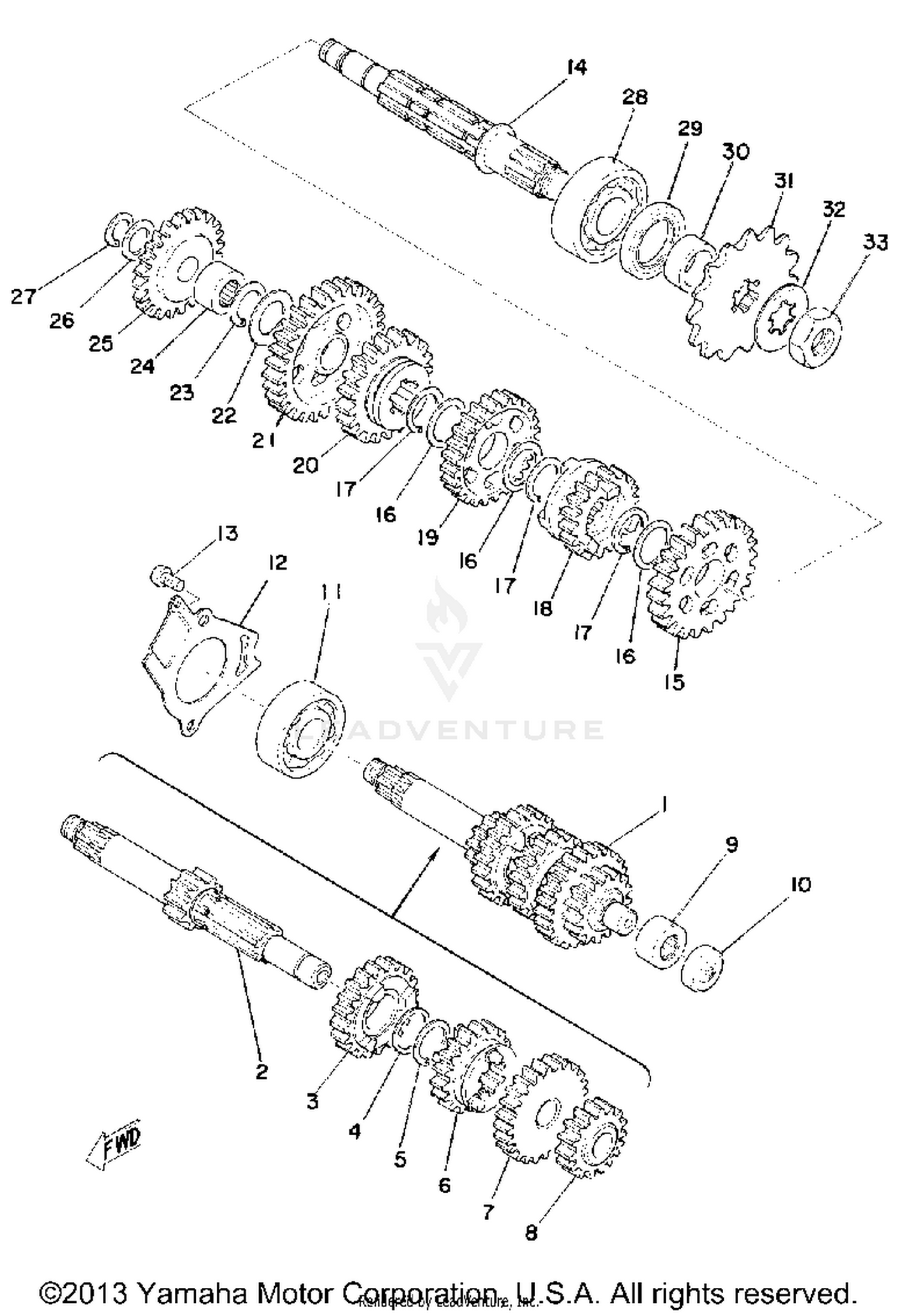

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE
427-17410-01-00
|
$52.84 | ||
|
Unavailable |
|||
|
#2
AXLE, MAIN
403-17411-01-00
|
$74.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 4TH PINION
427-17141-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-20038-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (19T)
427-17131-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 5TH PINION
427-17151-00-00
|
$60.96 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
427-17121-00-00
|
$16.32 | ||
|
Unavailable |
|||
|
#9
BEARING
93315-31502-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, PUSH ROD
93109-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
UNAVAILABLE IN PRICE BOOK
1GB-17471-00-00
|
|||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, DRIVE
315-17421-01-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 2ND WHEEL (30T)
427-17221-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93410-20038-00
|
$3.50 | ||
|
Unavailable |
|||
|
#18
GEAR, 5TH WHEEL
427-17251-00-00
|
$34.30 | ||
|
Unavailable |
|||
|
#19
GEAR, 3RD WHEEL (26T)
427-17231-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 4TH WHEEL
265-17241-00-00
|
$21.78 | ||
|
Unavailable |
|||
|
#21
GEAR, 1ST WHEEL
265-17211-00-00
|
$38.38 | ||
|
Unavailable |
|||
|
#22
SHIM 1 (T=0.6)
164-17427-00-06
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93440-15012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, CYLINDRICAL
93311-31567-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, KICK IDLE (28T)
403-15651-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
132-15653-00-10
|
$6.99 | ||
|
Unavailable |
|||
|
#
WASHER (13.3-22-1.2)
132-15653-00-12
|
$3.00 | ||
|
Unavailable |
|||
|
#
WASHER
132-15653-00-14
|
$1.65 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
99009-13400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93306-30421-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93102-26042-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-20491-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPROCKET,DRIVE 15T(1741746150)
93822-15065-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE (5N0-17461-40-0
93822-14037-00
Superseded by 93822-14043-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET,DRIVE 16T(1
93822-16093-00
Superseded by 93822-16095-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK
90215-16020-00
Superseded by 90215-16127-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-16018-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
