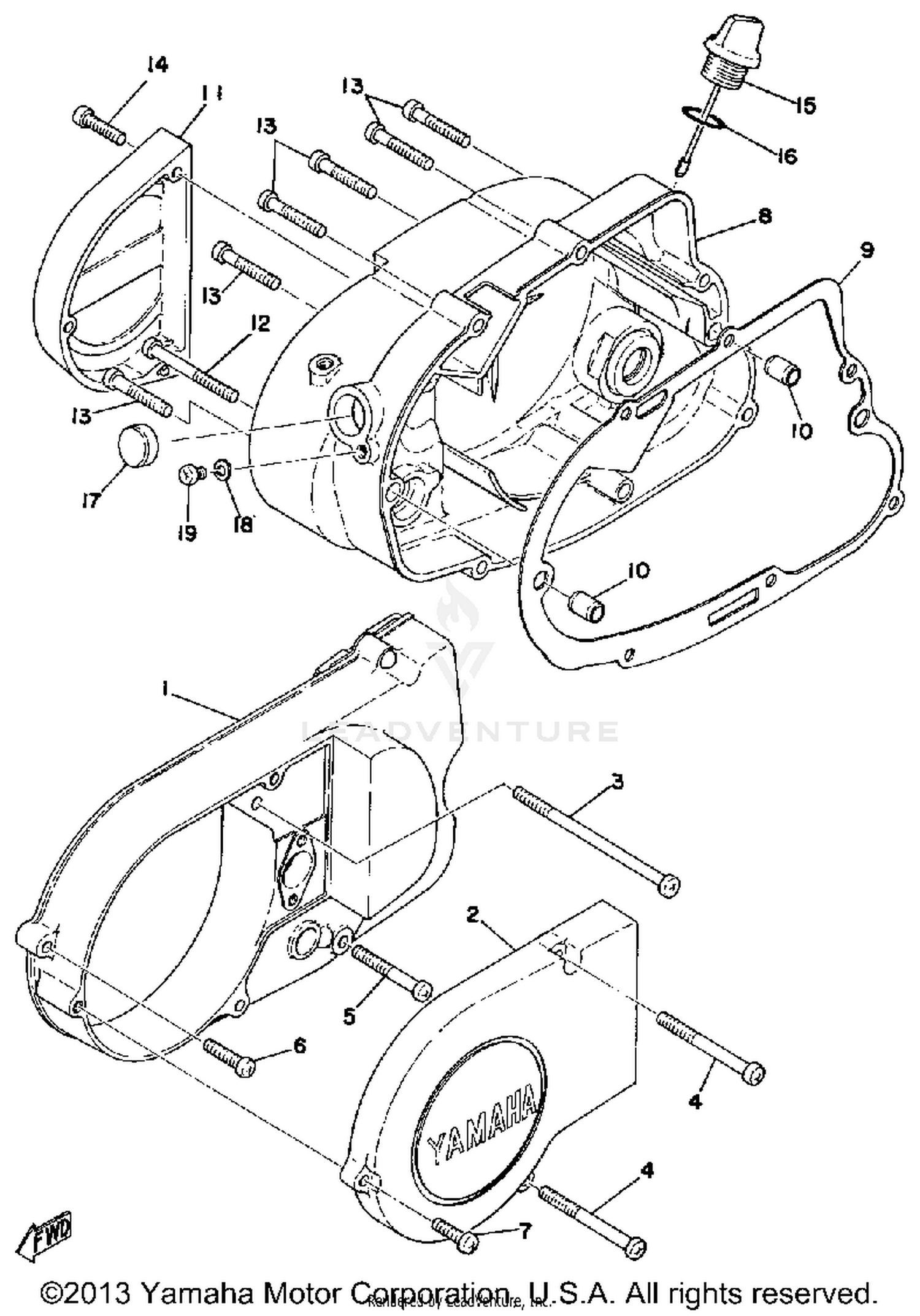

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRCS COVER ASSEMBLY L
463-15410-90-00
|
$37.82 | ||
|
Unavailable |
|||
|
#2
COVER, GENERATOR
463-15415-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#3
SCREW
98501-06110-00
Superseded by 98507-06110-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06565-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE R
463-15421-00-00
|
$50.80 | ||
|
Unavailable |
|||
|
#9
GASKET, CRCS COVER
3GY-15451-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, OIL PUMP
463-15416-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#12
SCREW,PANHEAD
98580-06055-00
Superseded by 98580-06555-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06020-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
PLUG, OIL LEVEL
401-15362-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG
90338-20023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
