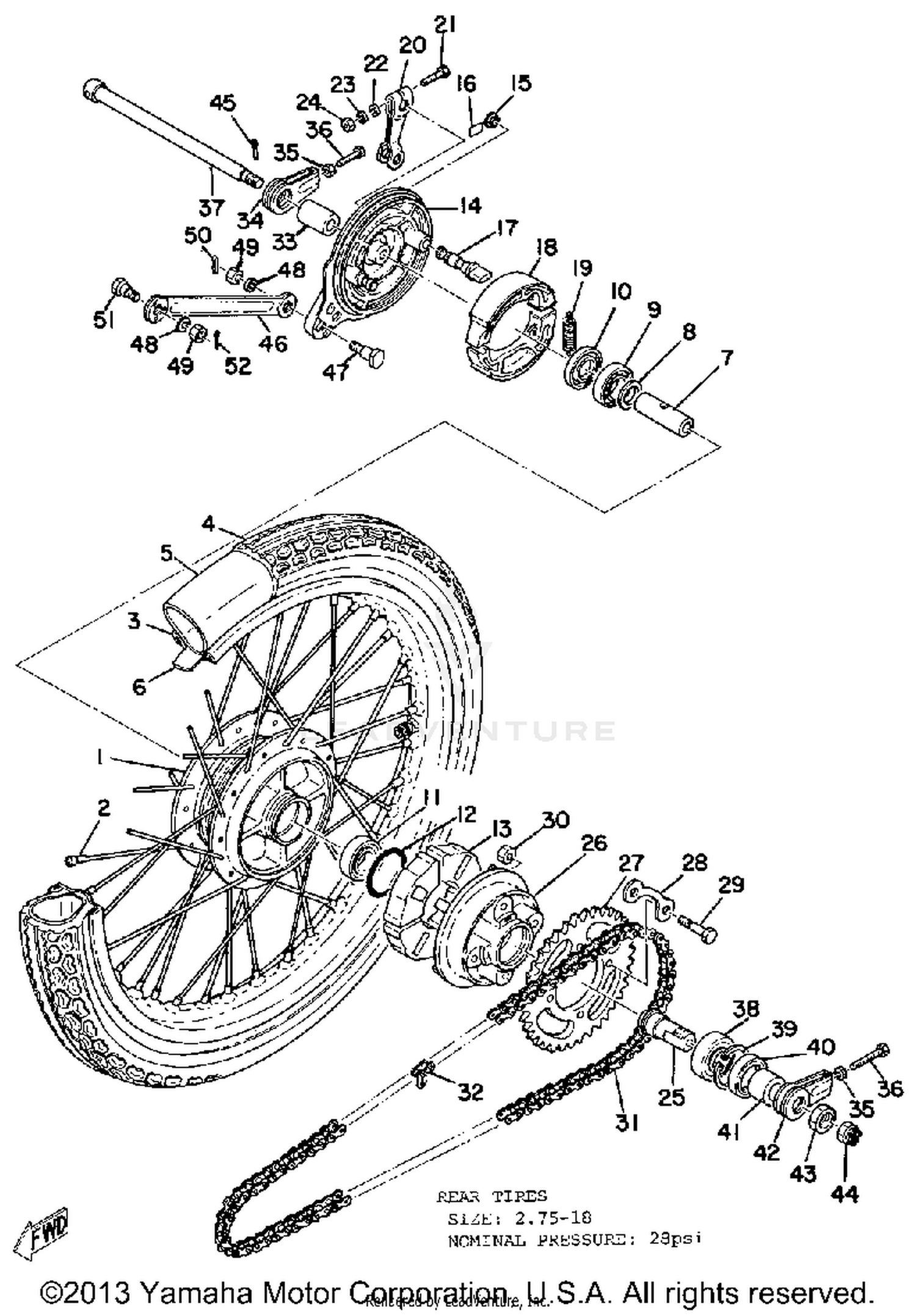

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
132-25311-00-38
|
$59.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
164-25304-00-00
|
$21.34 | ||
|
Unavailable |
|||
|
#3
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
275X18 YOKO Y93C
94127-18312-00
|
$23.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94227-18010-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12145-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30101-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-21016-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-41041-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
304-25364-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE SHOE PLT ASSEMBLY
339-25320-10-00
|
$44.99 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#17
CAMSHAFT
122-25351-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE SHOE KIT
10X-W2536-00-00
Superseded by 2JL-W253E-20-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TENSION
90506-16150-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNAVAILABLE IN PRICE BOOK
122-25355-00-0
|
|||
|
Unavailable |
|||
|
#21
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, SPROCKET
167-25387-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH, HUB
296-25366-01-98
Superseded by 296-25366-01-33
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET, DRVN 37T
183-25437-20-00
|
$31.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 35TWHEEL (35T)
183-25435-39-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRVN 36T (36T) (183-2
183-25436-39-00
|
$31.99 | ||
|
Unavailable |
|||
|
#28
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90101-08672-00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95333-08600-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN
94580-24116-00
Superseded by 9Y582-51115-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CHAIN JOINT
94680-24001-00
Superseded by 94681-64001-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-12102-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PULLER, CHAIN 2
241-25389-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#36
BOLT
90101-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
AXLE, WHEEL
390-25381-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#38
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
99009-42500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
OIL SEAL
93106-30004-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COLLAR
90387-18144-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PULLER, CHAIN 1
241-25388-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT
90170-18165-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BAR, TENSION
27L-25371-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT
90109-08183-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP
90468-10050-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
