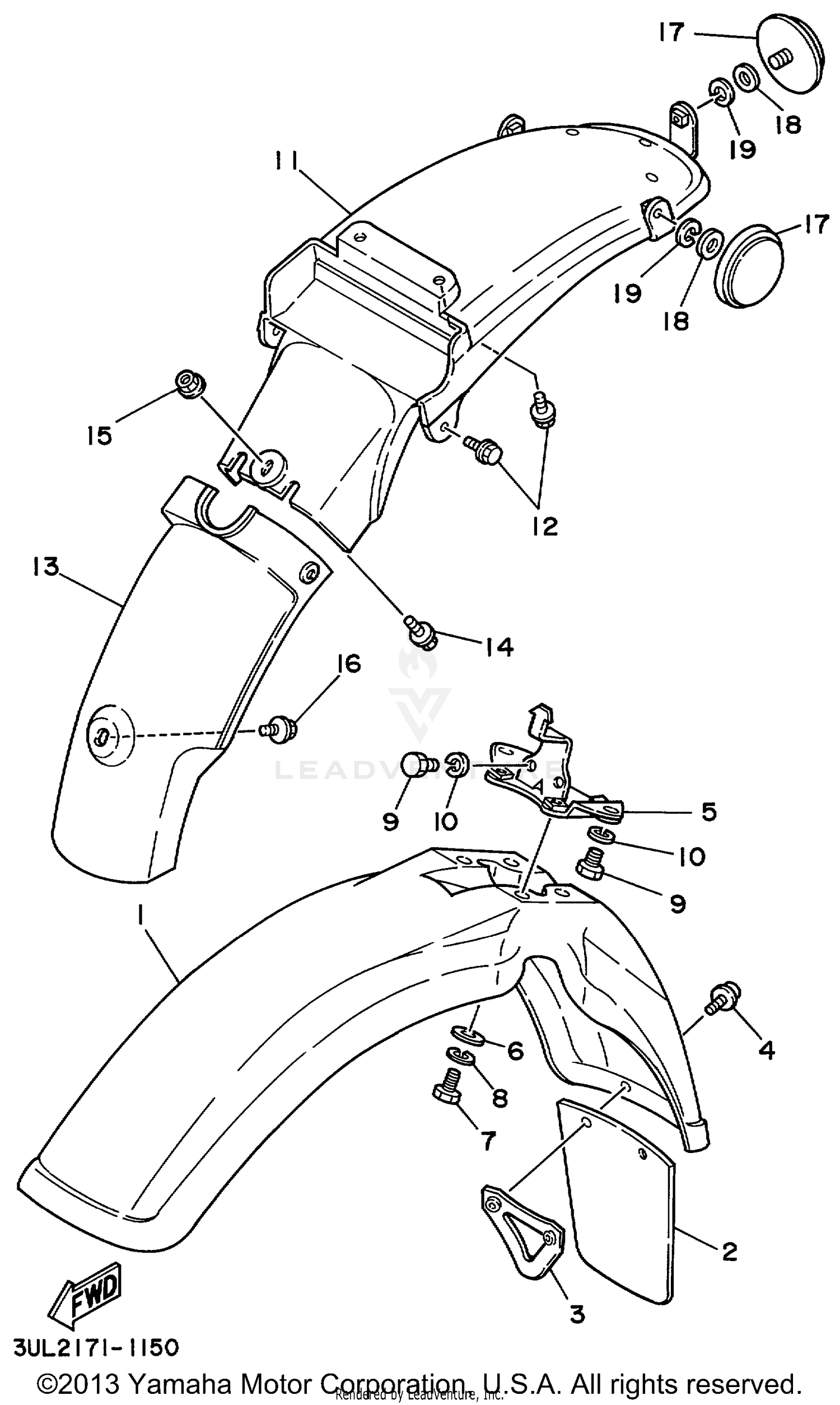

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3UL-21511-40-00
|
$57.99 | ||
|
Unavailable |
|||
|
#2
FLAP, FRONT FENDER
395-21521-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FENDER 2
3UL-21514-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
SCREW, WITH WASHER
90159-05028-00
Superseded by 90159-05121-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, FENDER 1
3UL-21513-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(3JP)
97007-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#11
FENDER, REAR
3UL-21611-60-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR FENDER COMP.
3UL-21610-70-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP
1T9-21621-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#14
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
REFLECTOR, REAR 1
449-85131-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
