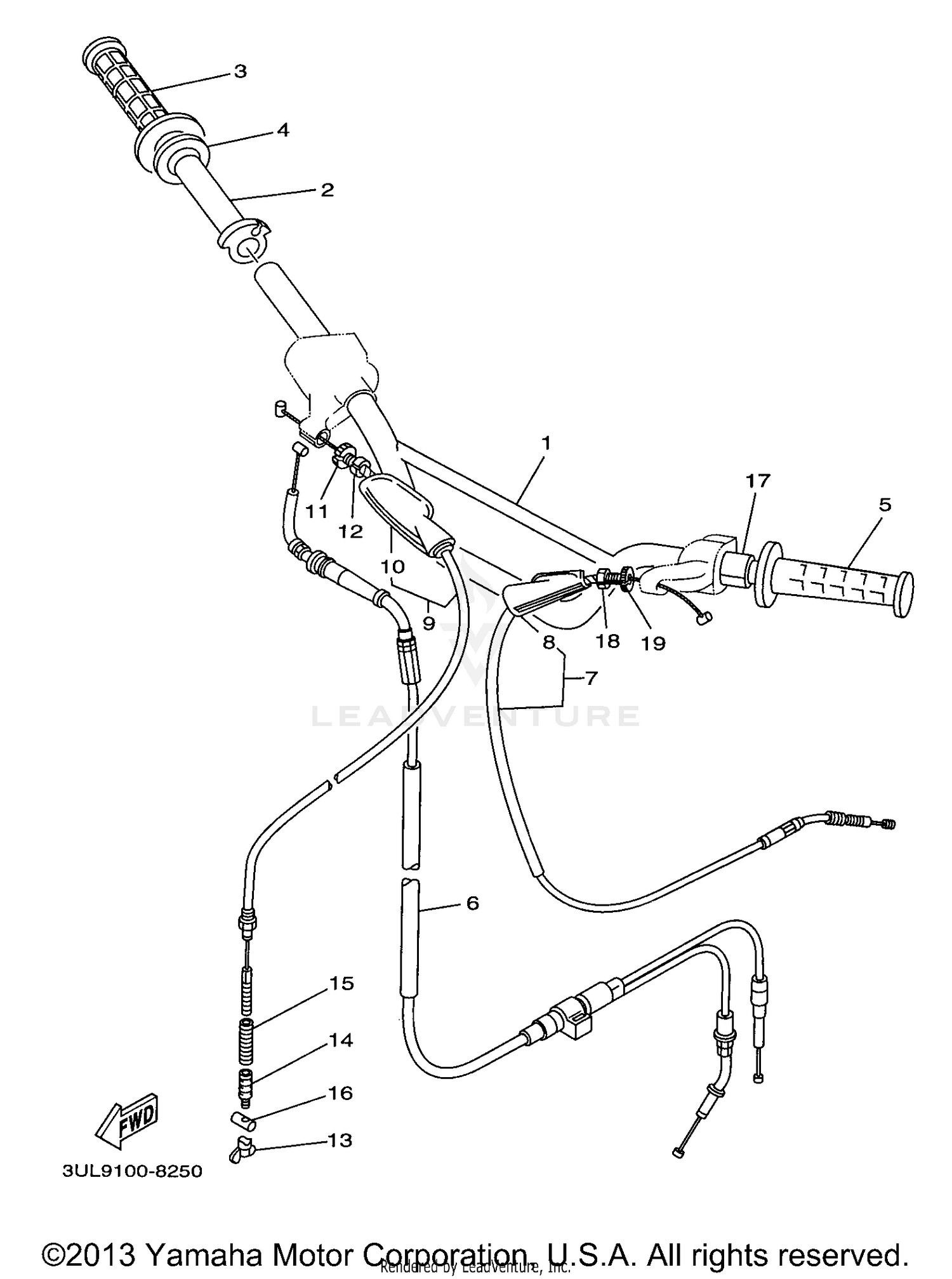

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
17W-26111-20-00
Superseded by 3UN-26111-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, THROTTLE GUIDE
434-26243-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP (RIGHT)
1LX-26242-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
1M1-26249-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP (LEFT)
1LX-26241-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
THROTTLE CABLE ASSY
3UL-26301-02-00
Superseded by 3UL-26301-11-00
|
$52.99 | ||
|
Unavailable |
|||
|
#7
CABLE, CLUTCH
3M1-26335-00-00
Superseded by 3M1-26335-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HANDLE LEVER 1
498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, BRAKE
3UL-26341-00-00
Superseded by 3UL-26341-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, HANDLE LEVER 1
498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#11
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, WING
90175-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, CABLE
3M7-26342-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, COMPRESSION
90501-09052-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-225N2-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Unavailable |
|||
