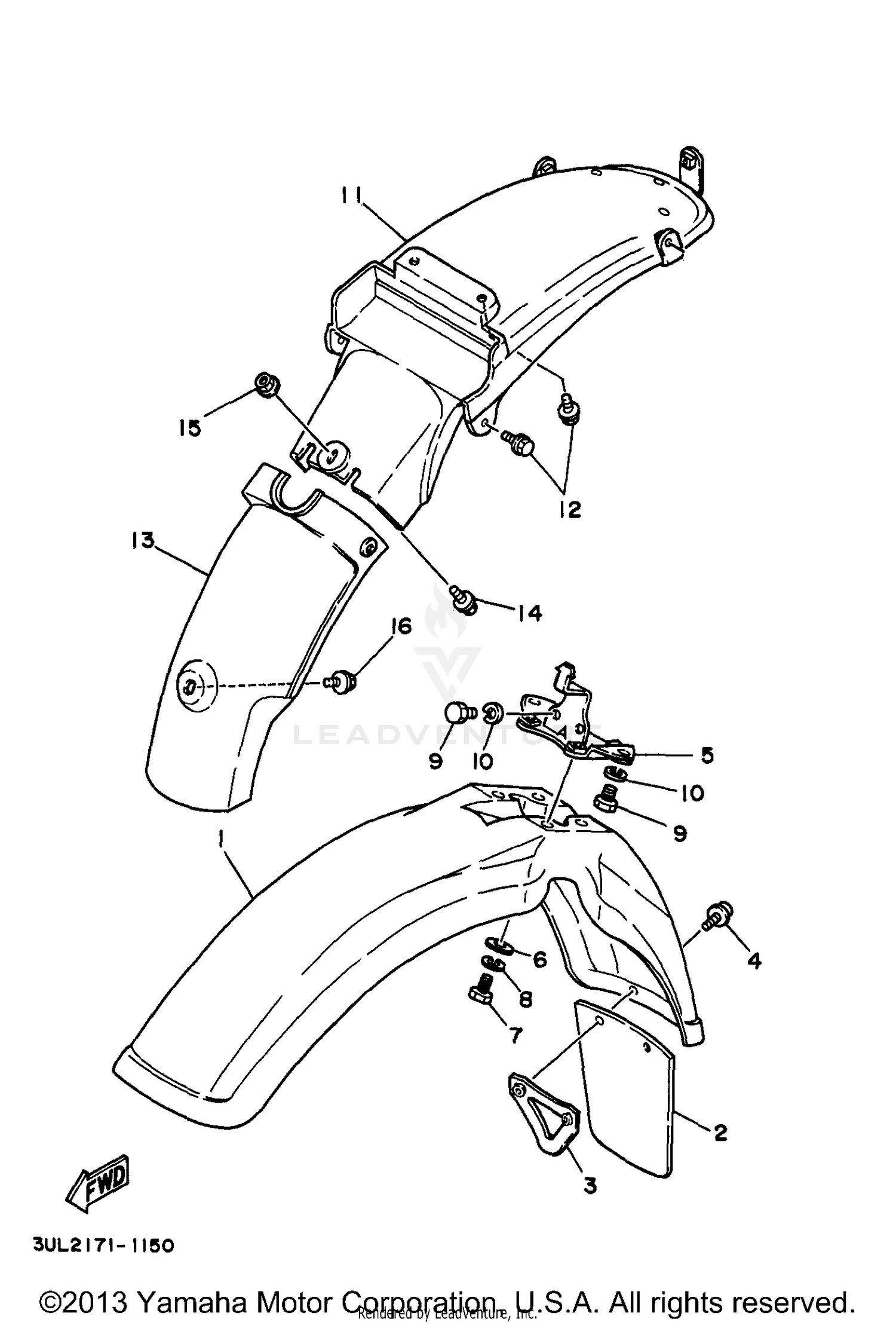

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3UL-21511-30-00
|
$53.99 | ||
|
Unavailable |
|||
|
#2
FLAP, FRONT FENDER
395-21521-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FENDER 2
3UL-21514-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
SCREW, WITH WASHER
90159-05121-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, FENDER 1
3UL-21513-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97027-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(3JP)
97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#11
FENDER, REAR
3UL-21611-40-00
|
$56.99 | ||
|
Unavailable |
|||
|
#12
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP
1T9-21621-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#14
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
