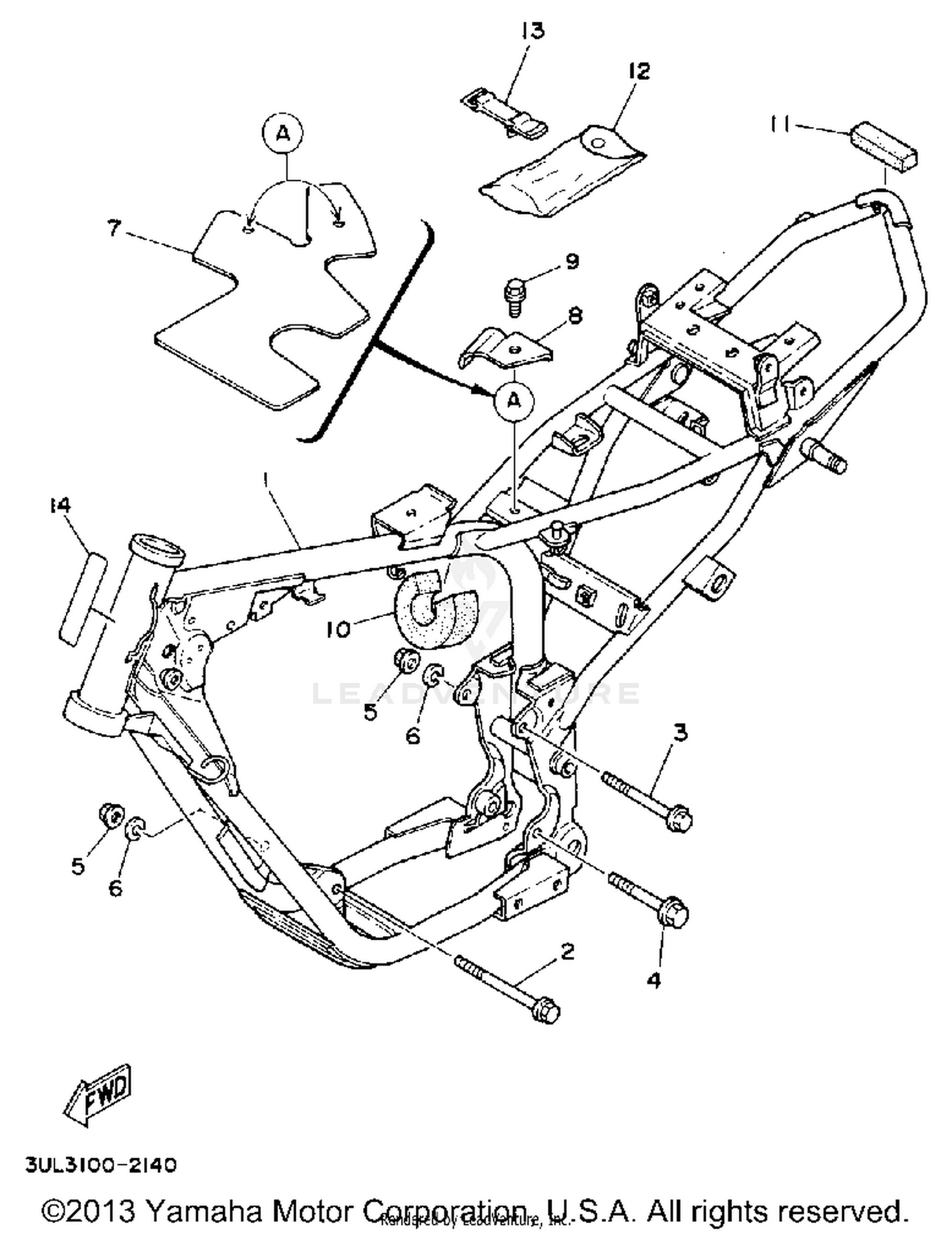

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
3UL-21110-00-33
|
$802.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-08094-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-08095-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95811-10075-00
Superseded by 95817-10075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
3UL-2117F-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#8
PLATE
3UL-21329-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
PATCH 1
8V7-21961-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 1
1KT-21717-00-00
Superseded by 83R-14425-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
TOOL KIT
353-W2810-00-00
Superseded by 353-W2810-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#13
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, EPA
3UL-2179X-00-00
|
$17.49 | ||
|
Unavailable |
|||
