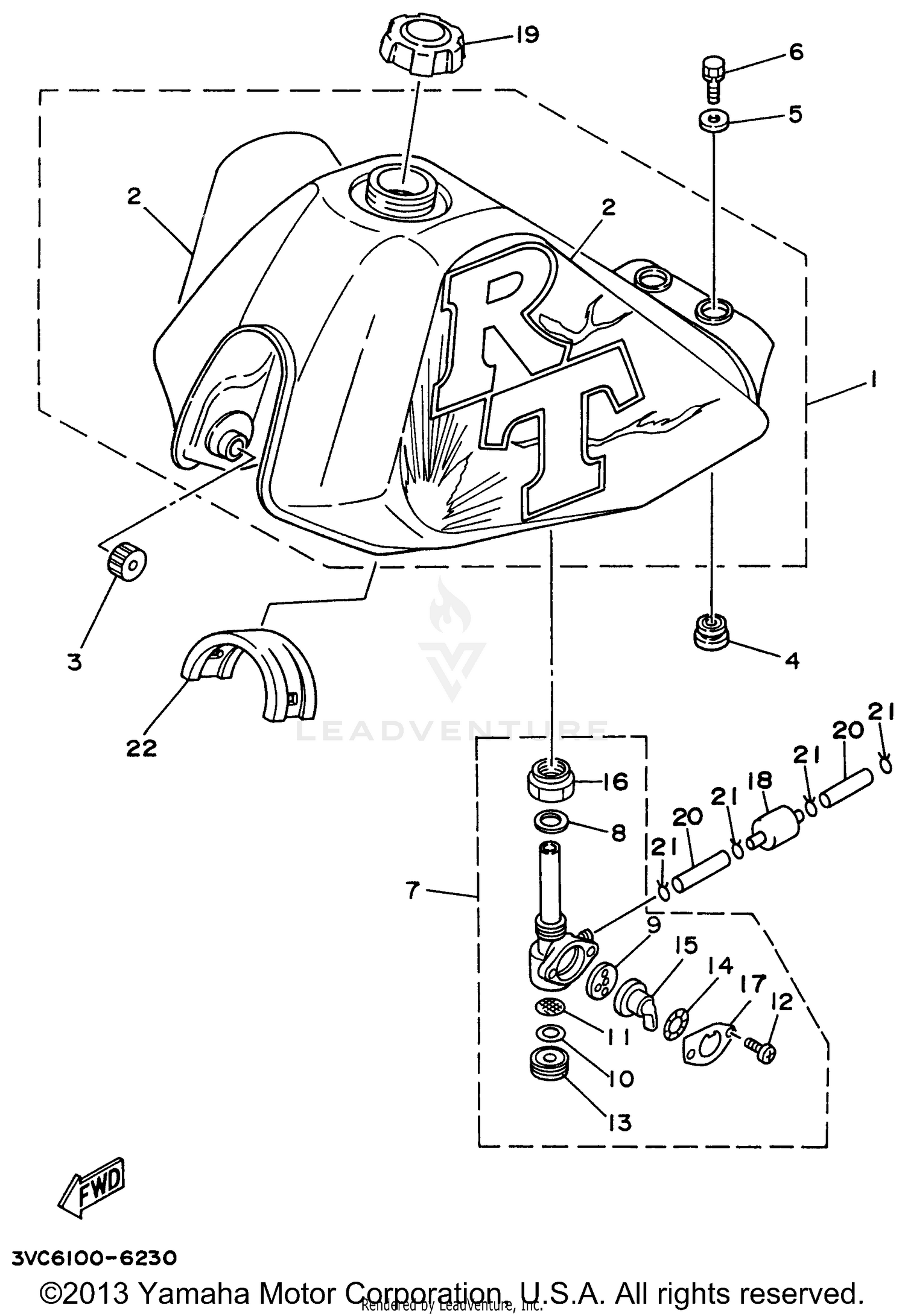

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3VC-F4100-50-00
|
$494.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3VC-F4240-50-00
|
$157.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-22231-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97502-06412-09
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUEL COCK ASSEMBLY 1
2TW-F4500-02-00
|
$91.99 | ||
|
Unavailable |
|||
|
#8
GASKET
3VC-F4532-01-00
|
$0.35 | ||
|
Unavailable |
|||
|
#9
VALVE
2MW-F4523-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#10
GASKET
132-24522-00-00
Superseded by 498-24522-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, FILTER
434-24576-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98501-03006-09
Superseded by 98580-03006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUP, FILTER
434-24521-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#14
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, COCK
447-24524-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#16
NUT
2TW-F4531-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#17
PLATE, LEVER FITTING
447-24525-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#18
FUEL FILTER
4AN-F4501-00-00
Superseded by 4AN-F4501-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP ASSEMBLY
5Y1-24610-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#20
HOSE
90445-09W02-09
Superseded by 90445-09W02-00
|
$4.65 | ||
|
Unavailable |
|||
|
#21
CLIP
90467-09W02-09
Superseded by 90467-09W02-00
|
$1.10 | ||
|
Unavailable |
|||
|
#22
DAMPER, LOCATING 2
2A6-24182-00-00
Superseded by 5L9-F4182-00-00
|
$17.49 | ||
|
Unavailable |
|||
