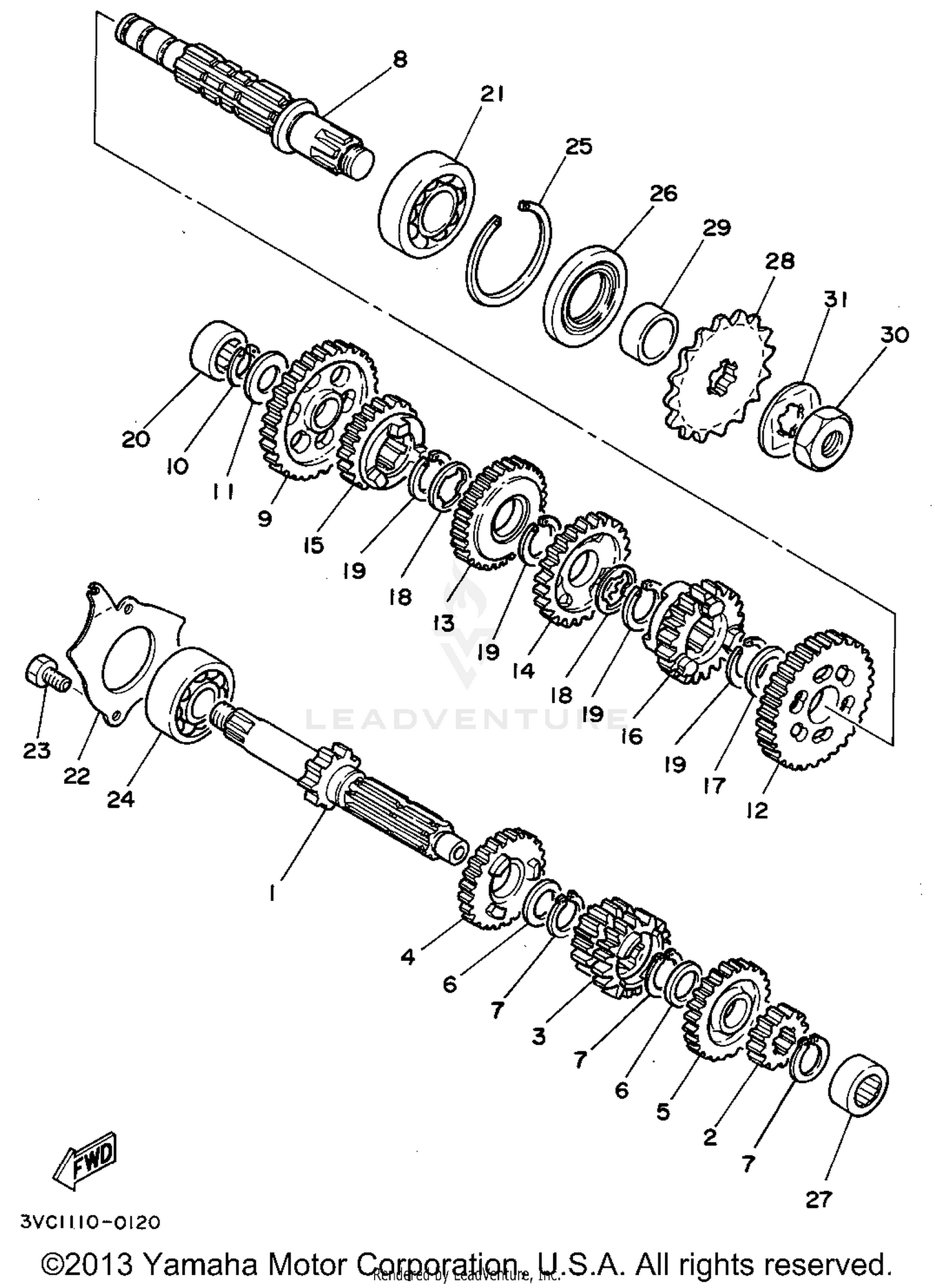

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
23K-E7411-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND PINION (15T)
23K-E7121-00-00
Superseded by 4J3-17121-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD PINION
4J3-17131-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR 5TH PINION
23K-E7151-00-00
Superseded by 4J3-17151-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 6TH PINION (25T)
23K-E7161-00-00
Superseded by 4J3-17161-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
AXLE, DRIVE
23K-E7421-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#9
GEAR, 1ST WHEEL
5L9-E7211-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, SIDE 1
2H3-E7427-00-00
Superseded by 164-18561-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL
23K-E7221-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 3RD WHEEL
4J3-17231-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 4TH WHEEL
4J3-17241-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 5TH WHEEL (22T)
23K-E7251-00-00
Superseded by 4J3-17251-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 6TH WHEEL (21T)
23K-E7261-00-00
Superseded by 4J3-17261-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93440-20800-09
Superseded by 93440-20800-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, CYLINDRICAL
93311-31567-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (4ED)
93306-30439-00
Superseded by 93306-30442-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, COVER
5L9-E7471-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93450-52010-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-28023-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, CYLINDRICAL
93311-31567-00
|
$55.99 | ||
|
Unavailable |
|||
|
#28
NUT
90179-16018-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE (14T)
2H3-E7461-40-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR, DISTANCE
2H3-E7462-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#31
WASHER, LOCK
90215-16127-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
