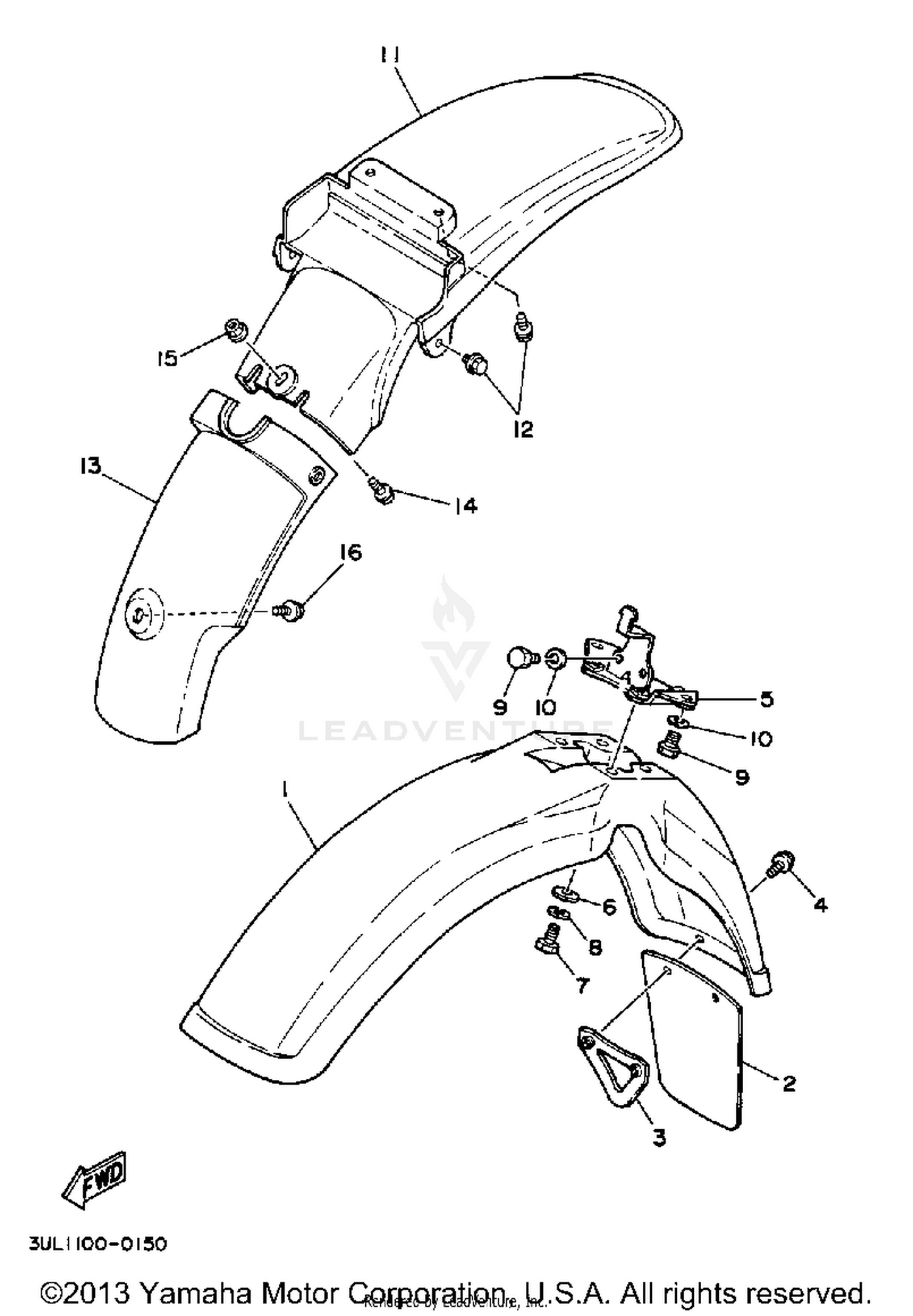

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3UL-21511-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
3UL-21511-10-00
|
$33.99 | ||
|
Unavailable |
|||
|
#2
FLAP, FRONT FENDER
395-21521-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FENDER 2
3UL-21514-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
SCREW, WITH WASHER
90159-05121-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, FENDER 1
3UL-21513-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#6
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON DEEP
97003-06014-00
Superseded by 97D95-06014-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
FENDER, REAR
3UL-21611-00-00
|
$40.53 | ||
|
Unavailable |
|||
|
#
FENDER, REAR
3UL-21611-10-00
|
$32.12 | ||
|
Unavailable |
|||
|
#12
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP
1T9-21621-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#14
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$3.99 | ||
|
Unavailable |
|||
