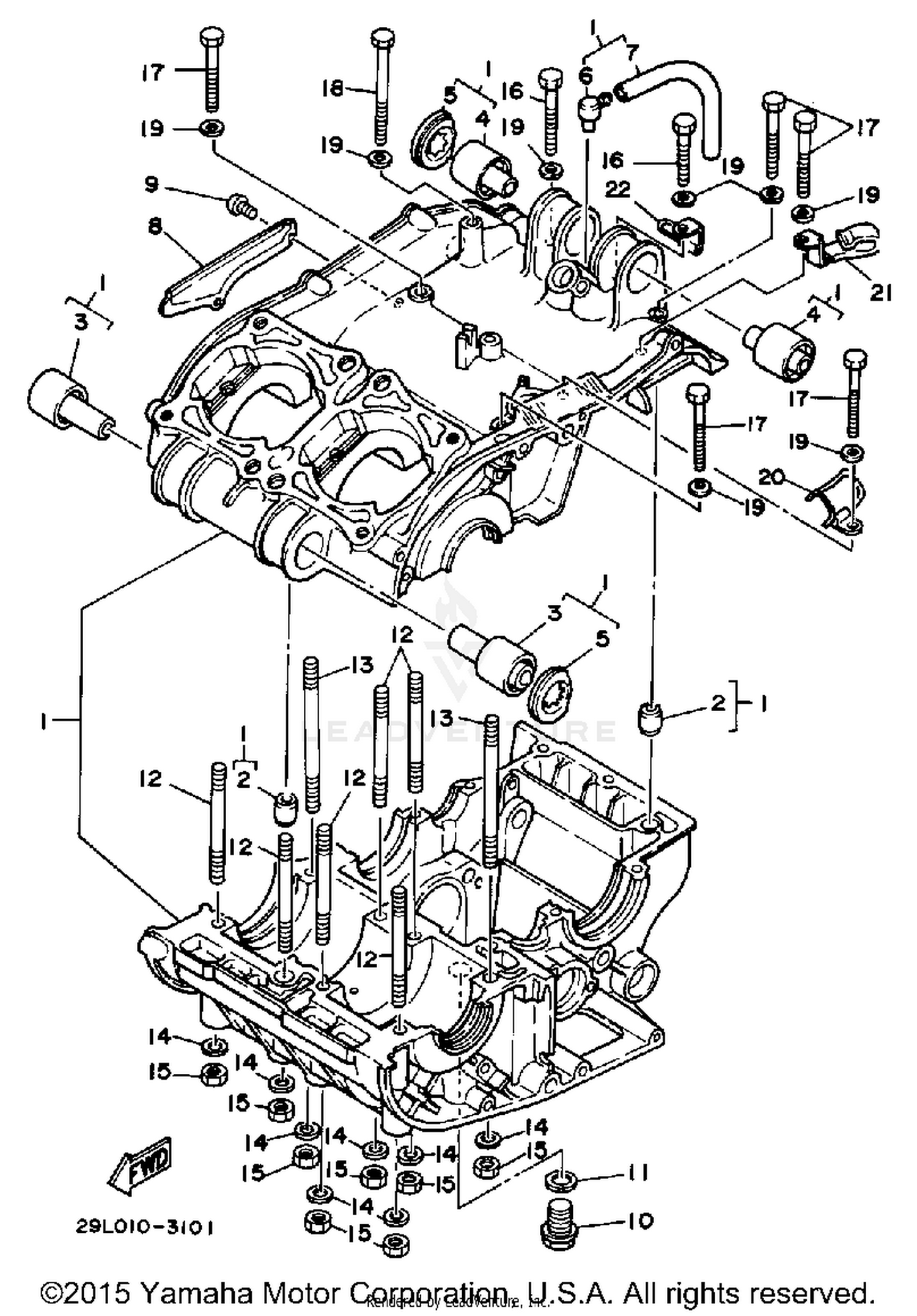

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
29L-15100-03-00
|
$724.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
2GU-15316-00-00
Superseded by 90388-10006-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
DAMPER
4L0-15326-00-00
Superseded by 90388-10007-00
|
$28.99 | ||
|
Unavailable |
|||
|
#5
SPACER, DAMPER
2YK-15328-00-00
Superseded by 2YK-15328-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#6
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE (3AK)
90446-07112-00
Superseded by 90446-07241-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER
278-15492-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (90340-14010)
90109-14385-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-08064-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD
90116-08232-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95333-08600-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97311-06045-00
Superseded by 97013-06045-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX
97313-06060-00
Superseded by 97013-06060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97311-06090-00
Superseded by 97017-06090-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90462-16130-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90465-08135-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
CLAMP
90465-06094-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
