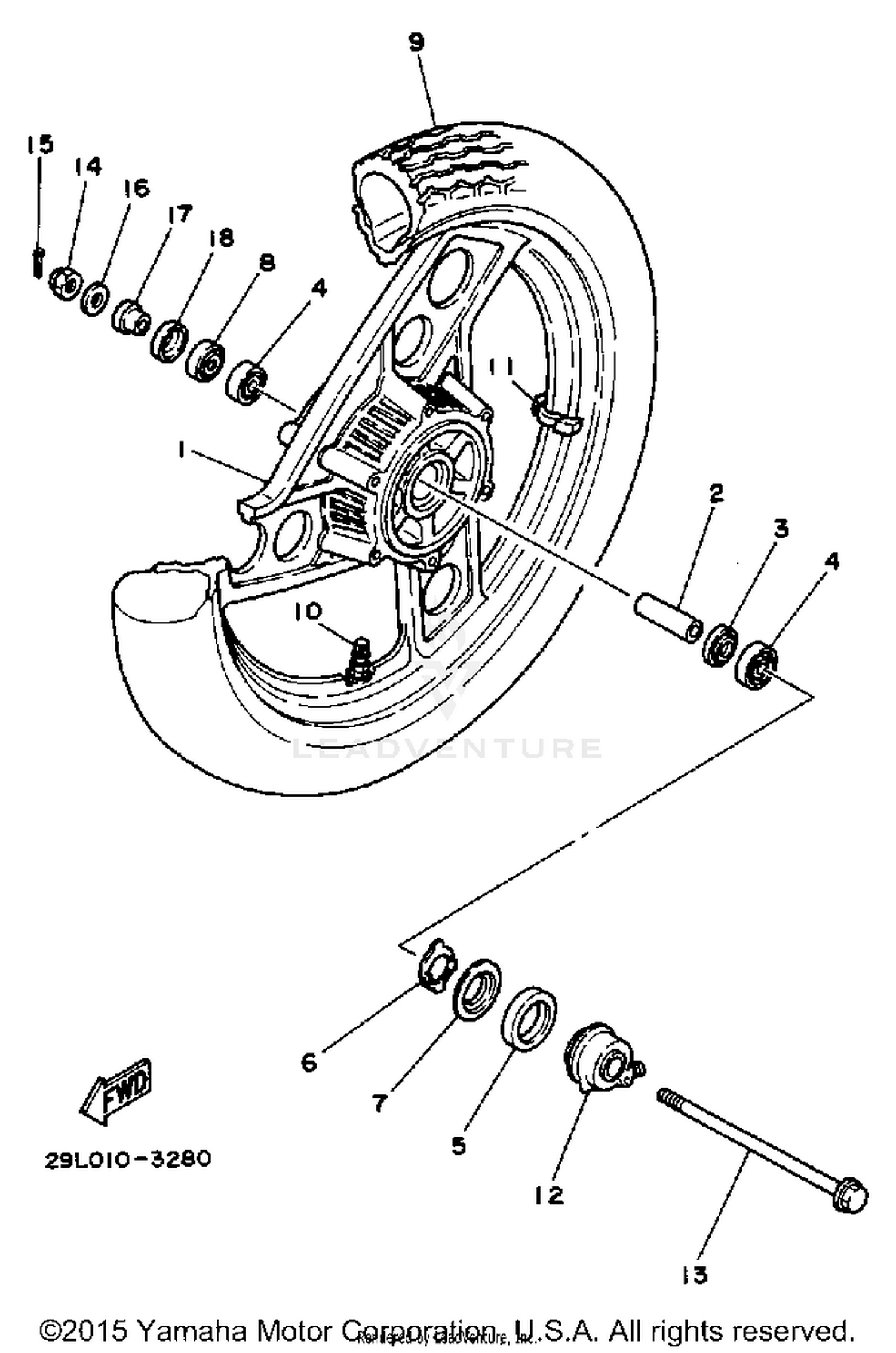

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST FRONT
29L-25168-00-8L
|
$568.99 | ||
|
Unavailable |
|||
|
#
WHEEL, CAST FRONT
29L-25168-00-98
|
$568.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-123A9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30109-00
Superseded by 93306-30102-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93105-45017-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH, METER
341-25149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, CLUTCH
341-25846-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93106-20033-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
90/90-18 F14TL (94109-187M7)
94109-181F5-00
|
$79.99 | ||
|
Unavailable |
|||
|
#10
VALVE, RIM
93900-00003-00
Superseded by 93900-00031-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR UNIT ASSY.
4L0-25190-00-00
Superseded by 4L0-25190-10-00
|
$106.99 | ||
|
Unavailable |
|||
|
#13
AXLE, WHEEL
4L0-25181-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#14
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92990-12200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-127E0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, HUB DUST
481-25118-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
