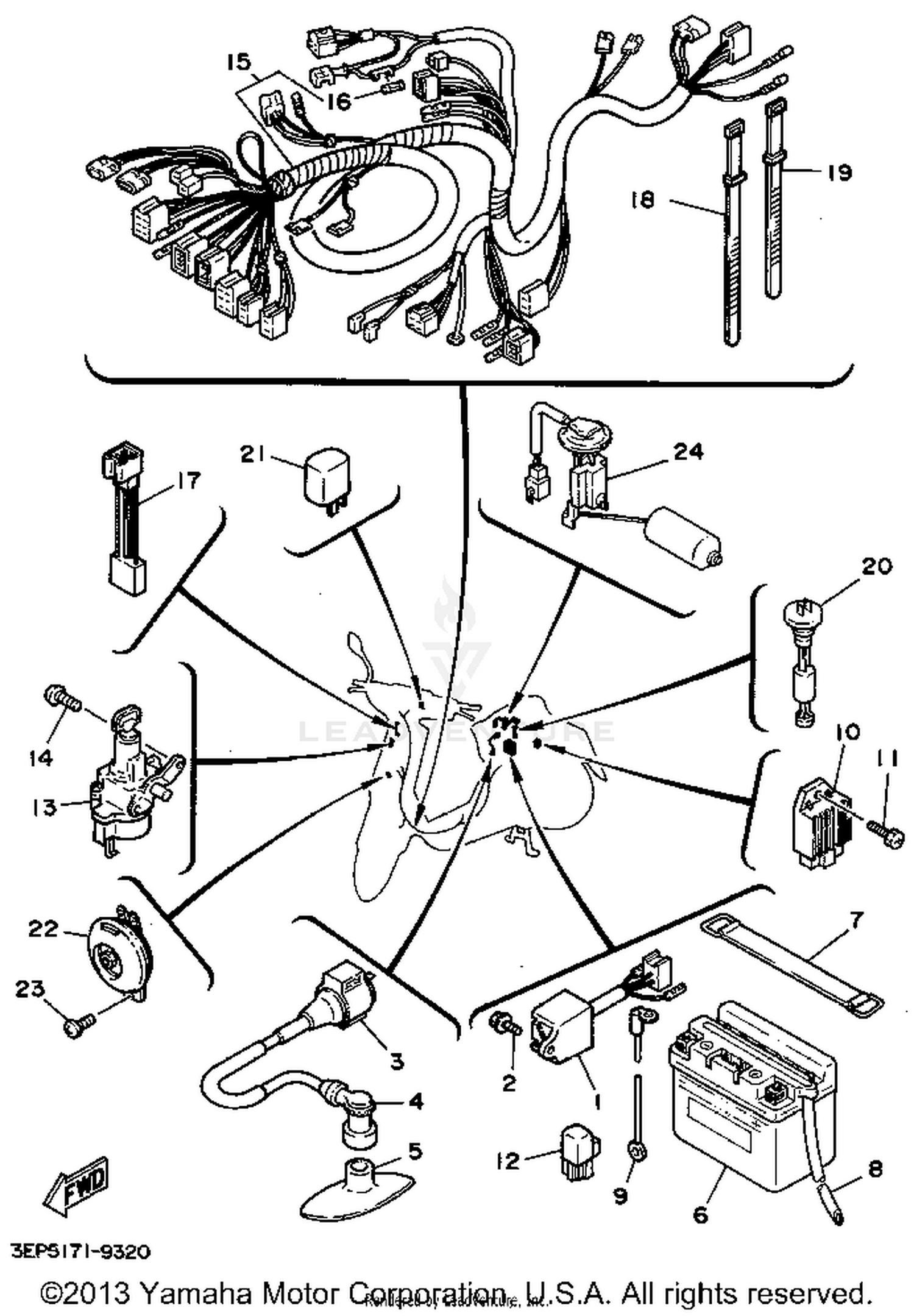

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C. D. I. UNIT ASSY
3JG-85540-00-00
Superseded by 3JG-85540-10-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95023-06016-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
2EX-82310-M0-00
|
$130.99 | ||
|
Unavailable |
|||
|
#4
PLUG CAP ASSEMBLY (166-82370-20
56J-82370-20-00
|
|||
|
Unavailable |
|||
|
#5
SEAL, PLUG CAP
27V-82372-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
YB4LB YUASA BATTERY
BTG-GM43B-00-00
Superseded by YB4-LB000-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, BATTERY
133-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
90445-084A7-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE, MINUS LEAD
3KL-82116-00-00
Superseded by 54V-82116-00-00
|
$3.65 | ||
|
Unavailable |
|||
|
#10
RECTIFIER & REG. ASSEMBLY (1KH-
2JA-81960-A0-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, HEXAGON
90153-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY ASSY (29U-93)
53L-81940-01-00
Superseded by 29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
MAIN SWITCH STEERING LOCK
3KL-82501-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06250-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE HARNESS ASSEMBLY
3KL-82590-00-00
Superseded by 3KL-82590-01-00
|
$259.99 | ||
|
Unavailable |
|||
|
#16
FUSE
27V-82151-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIODE ASSEMBLY
4H7-81980-M0-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL LEVEL GAUGE ASSY
53L-85720-00-00
Superseded by 53L-85720-02-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FLASHER RELAY ASSY
29G-83350-20-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HORN
3XV-83371-00-00
Superseded by 3MX-83371-11-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENDER UNIT ASSY FUEL METER
1YU-85752-00-00
|
$67.99 | ||
|
Unavailable |
|||
