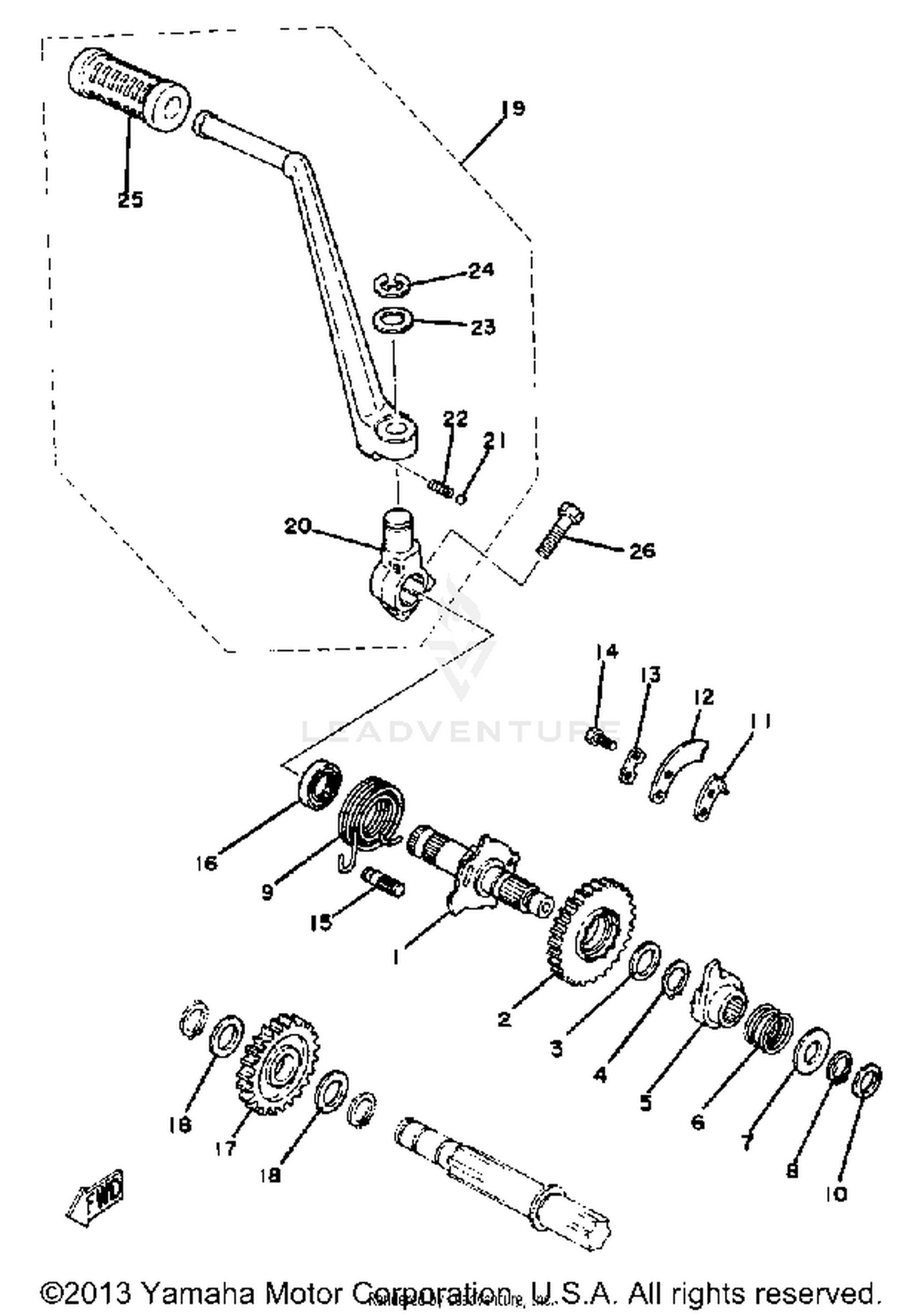

Kick Starter Alternate Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
3Y1-15660-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, KICK
30X-15641-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE (T=0.5)
90201-20685-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
WHEEL, RATCHET
3Y1-15671-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-16107-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-155K6-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP (55X)
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TORSION
90508-32432-00
Superseded by 90508-324B5-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE (T=1.0)
90201-15701-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER
2NX-15668-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, RATCHET WHEEL
3Y6-15674-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
214-15686-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER
248-15668-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93102-20108-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, KICK IDLE
3Y1-15651-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
KICK CRANK ASY
2L1-15620-00-00
Superseded by 1L9-15620-01-93
|
$103.99 | ||
|
Unavailable |
|||
|
#20
BOSS, KICK CRANK
583-15621-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL 7-32
93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, BOSS STOPPER
90501-12081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-15340-00
Superseded by 90201-153A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
