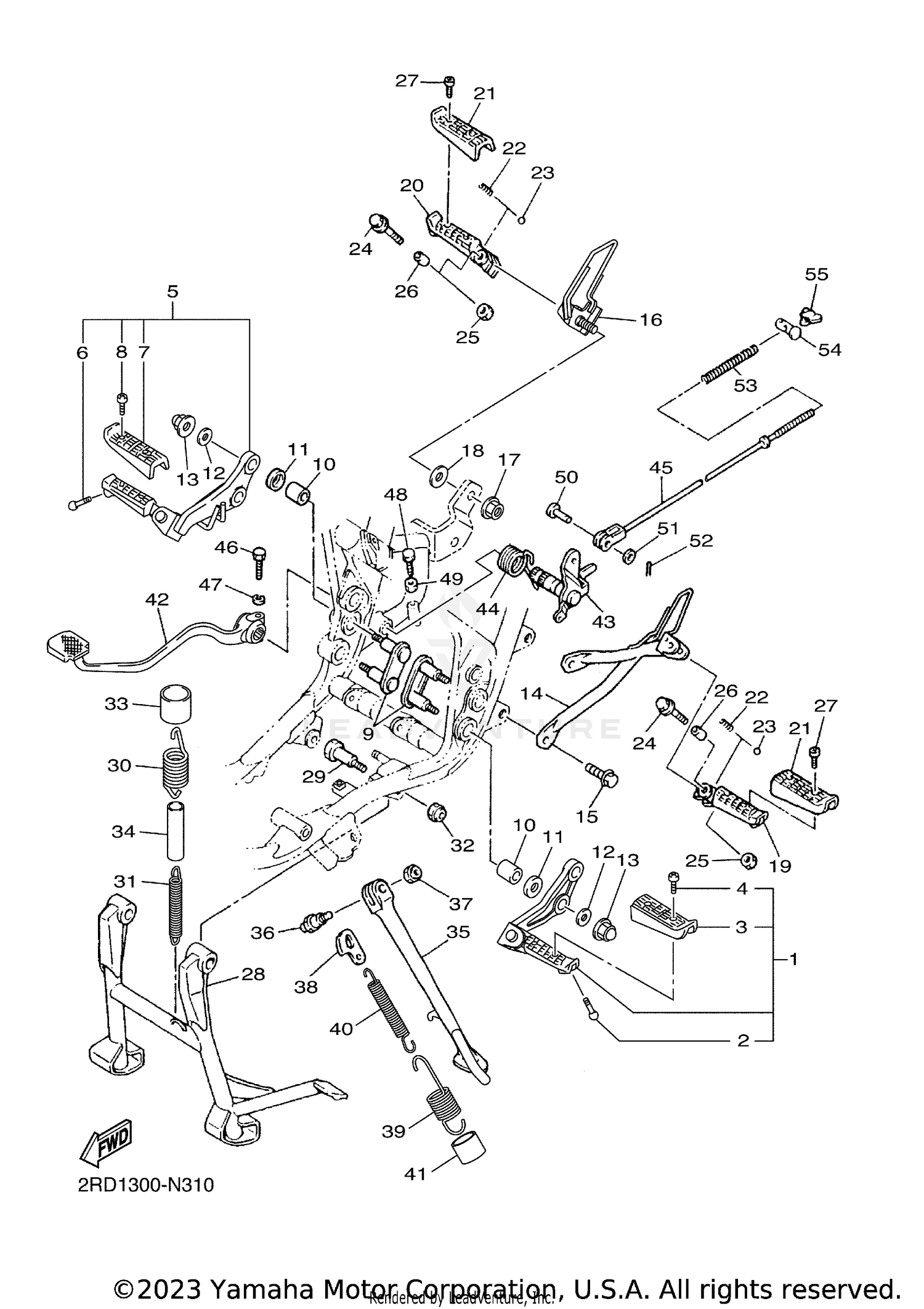

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FOOTREST ASSY (LEFT)
3GW-27410-20-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-08018-00
Superseded by 90109-08177-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FOOTREST
1JK-27413-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRONT FOOTREST ASSY (RIGHT)
3GW-27420-20-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-08018-00
Superseded by 90109-08177-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
COVER, FOOTREST
1JK-27413-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
BOLT, FOOTREST
2J2-27416-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, FOOTREST
2J2-27414-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPEC''L SHAP
90209-12102-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CROWN
90176-08068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 1 (0033,YB)
3GW-27432-00-33
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95807-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET 2
3HT-27442-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
95607-12200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FOOTREST, REAR 1
4BR-27431-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTREST, REAR 2
4BR-27441-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, FOOTREST
2GH-27413-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95027-06035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-064H8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAND, MAIN
2J2-27111-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-102G9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, TENSION
90506-45002-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TENSION
90506-29007-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE
90445-42002-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE (L95)
90445-217G3-00
Superseded by 90445-212G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
STAND, SIDE
2RD-27311-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
90109-10005-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Unavailable |
|||
|
#38
LINK, SIDE STAND
3VD-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, TENSION
90506-26225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE (L55)
90445-266H4-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PEDAL, BRAKE
3HT-27211-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SHAFT, BRAKE PEDAL
3H0-27212-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING, TORSION
90508-40381-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
ROD, BRAKE
3H0-27231-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIN, CLEVIS
90240-08067-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#53
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
PIN, SPECIAL SHAPE
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
NUT, WING
90175-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
