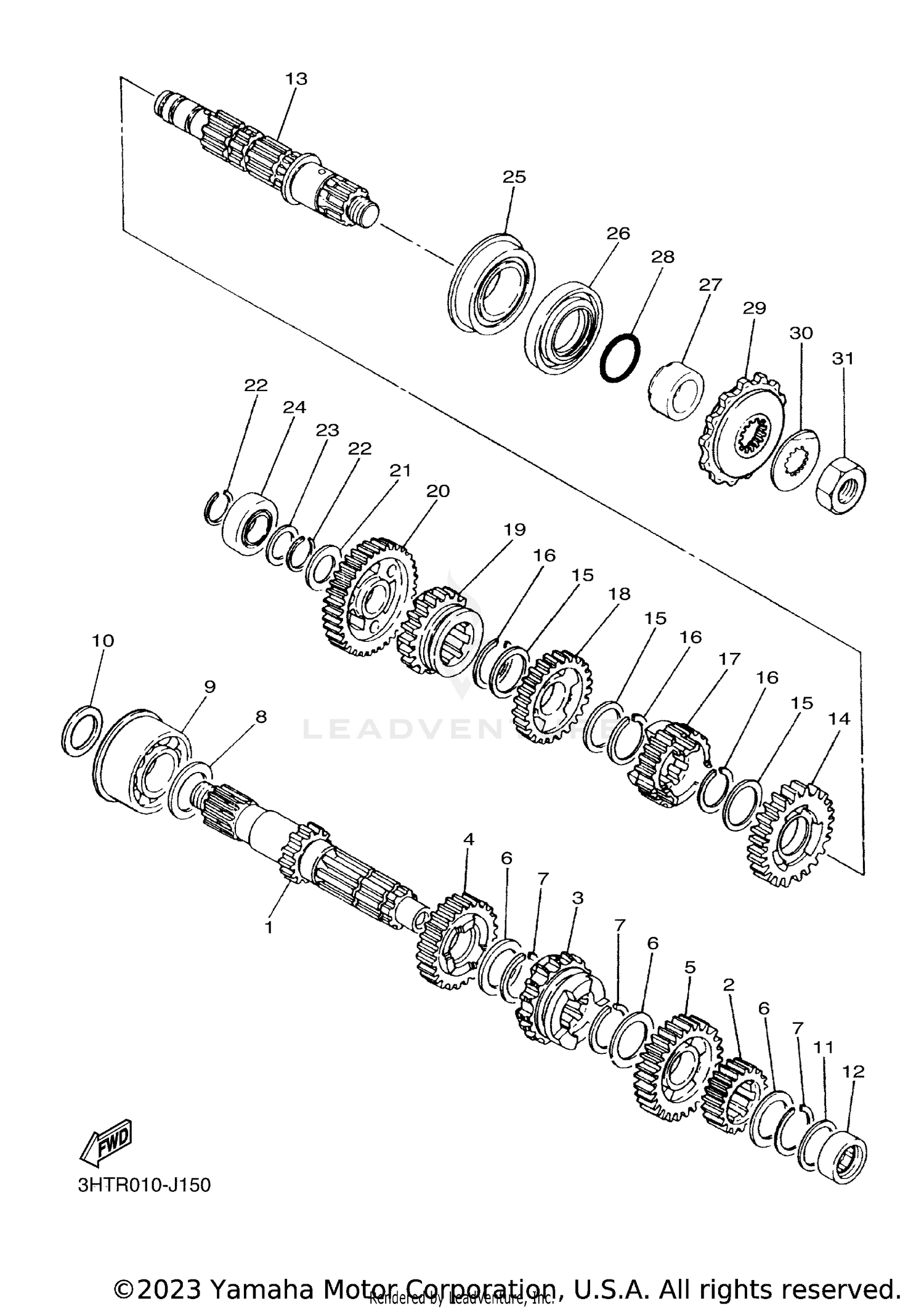

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (14T)
3HT-17411-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND PINION (18T)
583-17121-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD PINION (21T)
3GW-17131-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 4TH PINION (24T)
583-17141-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 5TH PINION (27T)
3GW-17151-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-25020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, DRIVE AXLE
168-17428-01-00
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-20546-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-252A4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93311-42077-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSY
3HT-17402-R0-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 2ND WHEEL (28T)
583-17221-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
93440-25020-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
GEAR, 5TH WHEEL (21T)
3GW-17251-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 3RD WHEEL (25T)
3GW-17231-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 4TH WHEEL (22T)
583-17241-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 1ST WHEEL (33T)
583-17211-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Unavailable |
|||
|
#24
BEARING, CYLINDER.#13
93313-32008-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-30517-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-35469-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-250V7-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-22298-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPROCKET, DRIVE (19T)
3FH-17460-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK
90215-21256-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90179-18003-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
