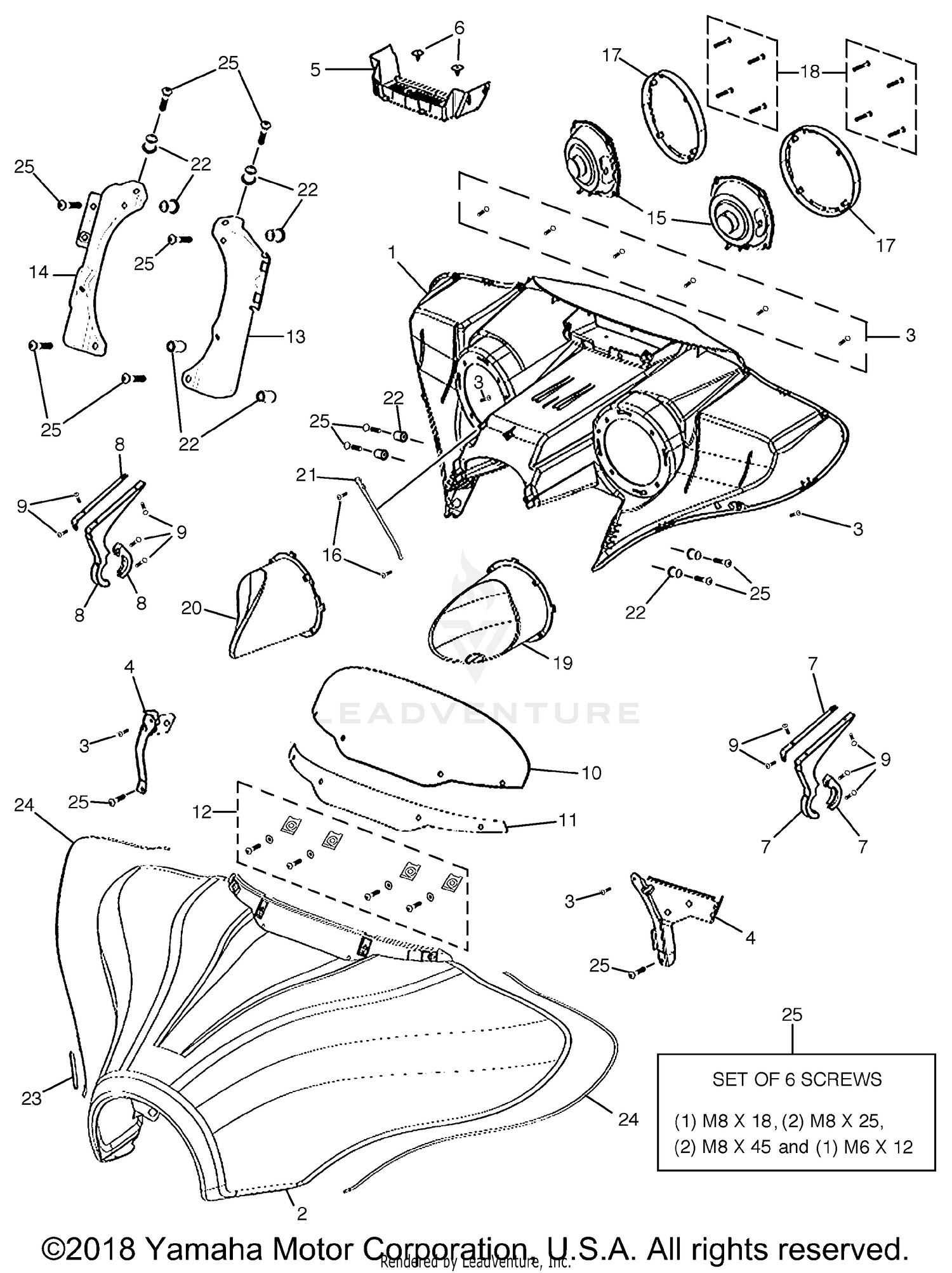

Cowling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWLING BODY ASSY
2C5-F830A-V0-00
|
$211.99 | ||
|
Unavailable |
|||
|
#2
UPPER COWLING ASSY 1
2C5-F8330-V0-00
|
$565.49 | ||
|
Unavailable |
|||
|
#3
SCREW SET (M4 X 16)
2C5-F585H-T0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#4
UPPER BRACKET ASSY
2C5-F2209-V0-00
|
$143.95 | ||
|
Unavailable |
|||
|
#5
MAT
2C5-F7483-V0-00
|
$43.95 | ||
|
Unavailable |
|||
|
#6
RETAINER
2C5-F722H-V0-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
BRACKET, HANDLE 1
2C5-F6223-V0-00
|
$192.49 | ||
|
Unavailable |
|||
|
#8
BRACKET, HANDLE 2
2C5-F6224-V0-00
|
$198.99 | ||
|
Unavailable |
|||
|
#9
SCREW SET (M5 X 16)
2C5-F585H-S0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#10
WINDSCREEN ASSY
2C5-F83H0-R0-00
|
$121.95 | ||
|
Unavailable |
|||
|
#11
COVER, FRONT
2C5-F2865-V0-00
|
$144.99 | ||
|
Unavailable |
|||
|
#12
SCREW SET
2C5-F585H-R0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#13
BRACKET 1
2C5-F334G-V0-00
|
$145.99 | ||
|
Unavailable |
|||
|
#14
BRACKET 2
2C5-F334H-V0-00
|
$143.99 | ||
|
Unavailable |
|||
|
#15
SPEAKER, 1
2C5-H8161-V0-00
|
$93.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, SELF-TAPPING
2C5-H253U-V0-00
|
$6.95 | ||
|
Unavailable |
|||
|
#17
GRILLE, SPEAKER 1
2C5-H8163-V0-00
|
$36.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW SET (M4 X 30)
2C5-F585H-V0-00
|
$9.99 | ||
|
Unavailable |
|||
|
#19
SPEAKER ENCLOSURE 1
2C5-H8160-V0-00
|
$45.99 | ||
|
Unavailable |
|||
|
#20
SPEAKER ENCLOSURE 2
2C5-H8170-V0-00
|
$45.99 | ||
|
Unavailable |
|||
|
#21
BAND
2C5-H2591-V0-00
|
$7.95 | ||
|
Unavailable |
|||
|
#22
COLLAR SET
2C5-F511X-V0-00
|
$52.99 | ||
|
Unavailable |
|||
|
#23
PROTECTOR TAPE
2C5-F3472-V0-00
|
$7.95 | ||
|
Unavailable |
|||
|
#24
PROTECTOR TAPE
2C5-F8344-V0-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW SET
2C5-F585H-P0-00
|
$25.99 | ||
|
Unavailable |
|||
