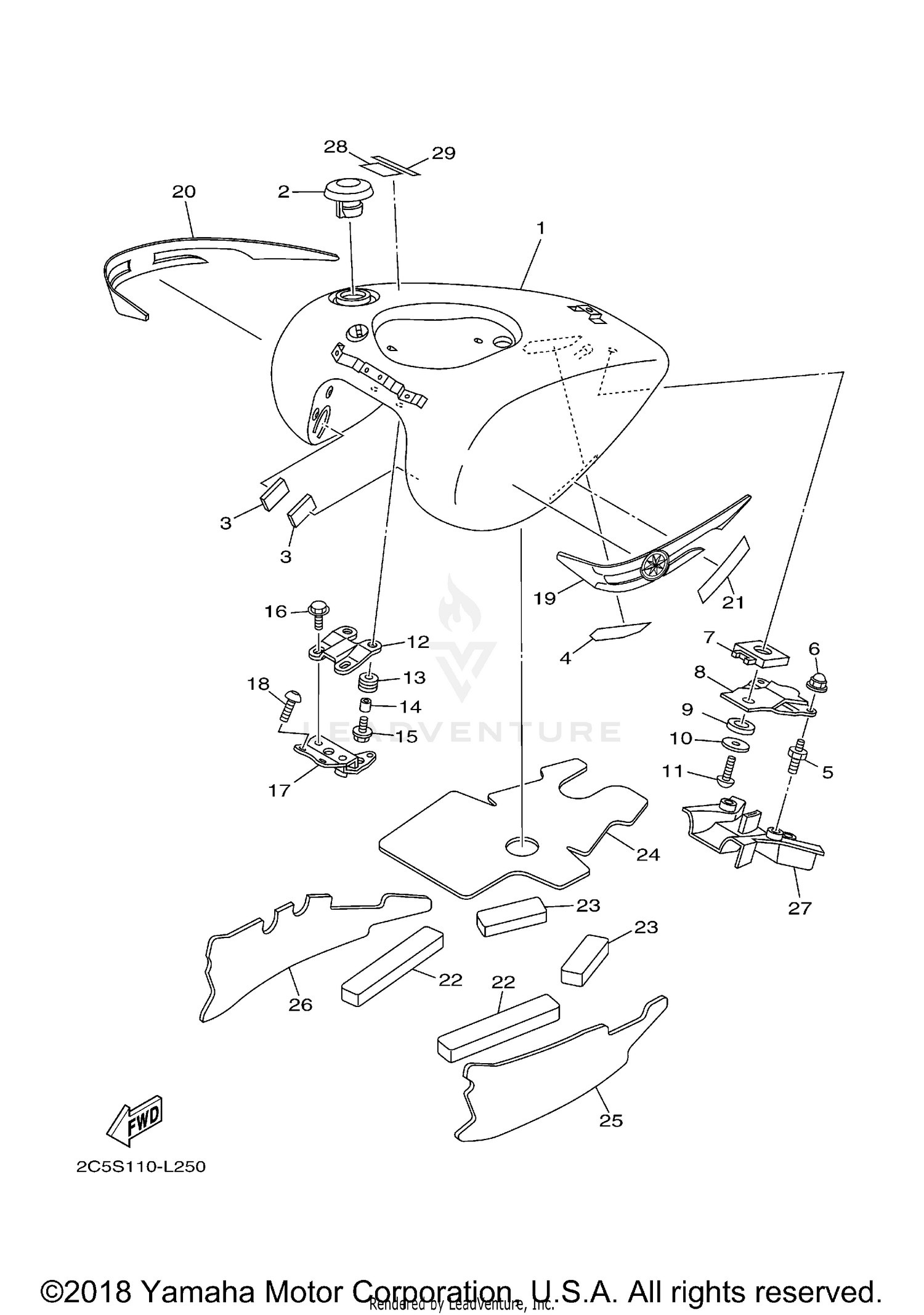

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1D7-YK241-00-P5
|
$888.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
4NK-24602-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
1FK-21746-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE
1D7-2413X-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT 1
5PX-24176-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 2
1D7-24182-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, TANK FITTING
1D7-2413Y-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 3
4TR-24183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06110-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FUEL TANK 1
1D7-24191-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-15483-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06054-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WITH WASHER
90119-06264-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95802-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, FUEL TANK 2
1D7-24192-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM 1
1D7-24161-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM 2
1D7-24162-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TAPE
3TU-28344-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, PLATE 4
1D7-2414N-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, PLATE 5
1D7-2414P-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, PLATE 3
1D7-2414K-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, PLATE 1
1D7-2414H-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, PLATE 2
1D7-2414J-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER
1D7-24217-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LABEL, CAUTION
5GK-2118K-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
LABEL, CAUTION
5PW-2415E-11-00
Superseded by 5PW-2415E-12-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
