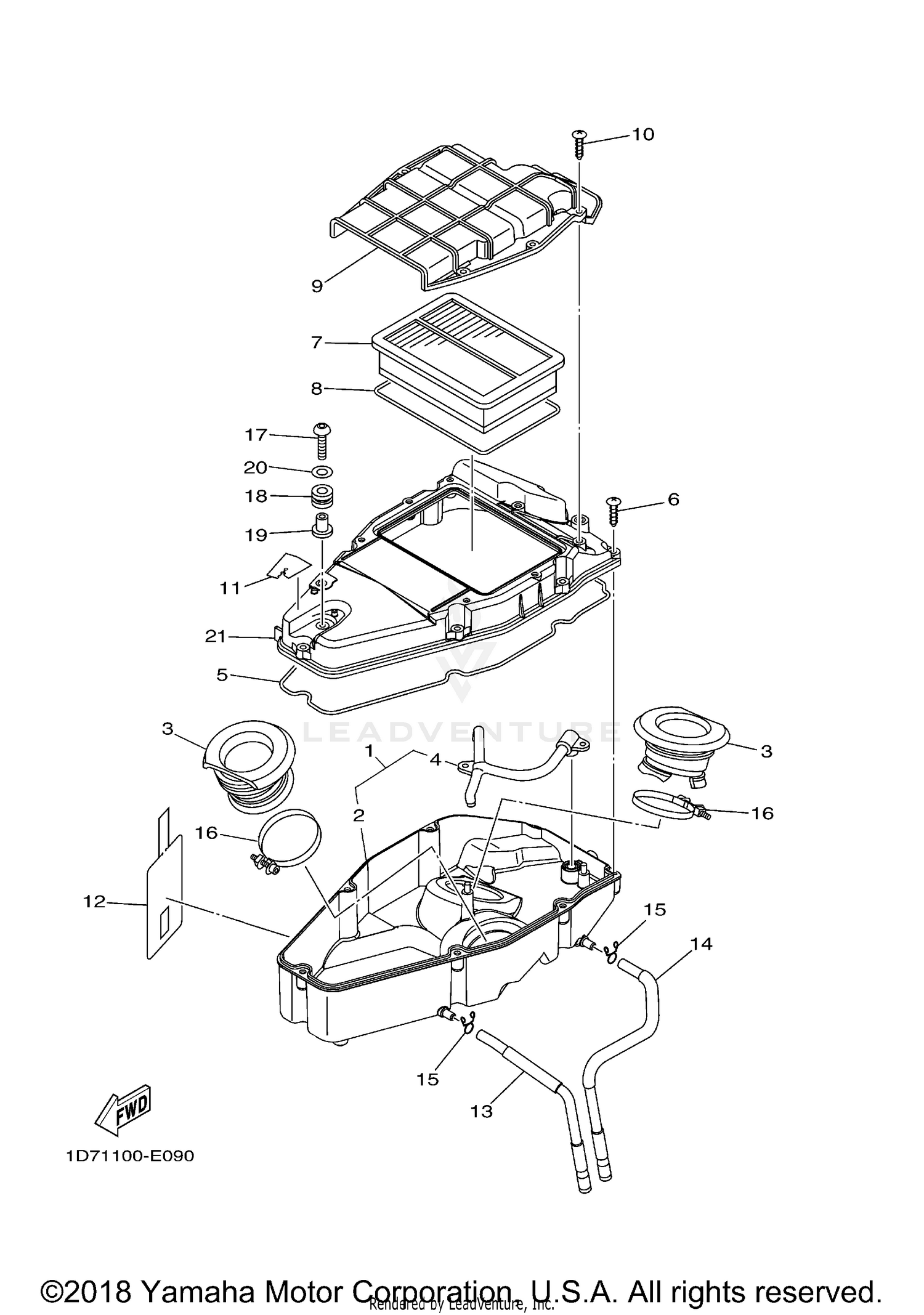

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SILENCER, INNER SET
1D7-W1443-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SILENCER, INNER SET
1D7-14432-00-00
Superseded by 1D7-W1443-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#3
JOINT, AIR CLEANER 1
1D7-14453-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE
1D7-14419-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL
1D7-14457-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97707-50030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ELEMENT, AIR CLEANER 2
1D7-14461-00-00
Superseded by 1D7-14461-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
SEAL
1D7-14452-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, CLEANER CASE 1
1D7-14412-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97707-50020-00
Superseded by 90167-05078-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 1
1D7-14425-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER 1
1D7-14417-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, DRAIN
1D7-1443E-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, DRAIN 2
1D7-1443G-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-56005-00
Superseded by 90450-56001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92017-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-064R0-00
Superseded by 90201-06066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SILENCER, INTAKE 1
1D7-14431-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
