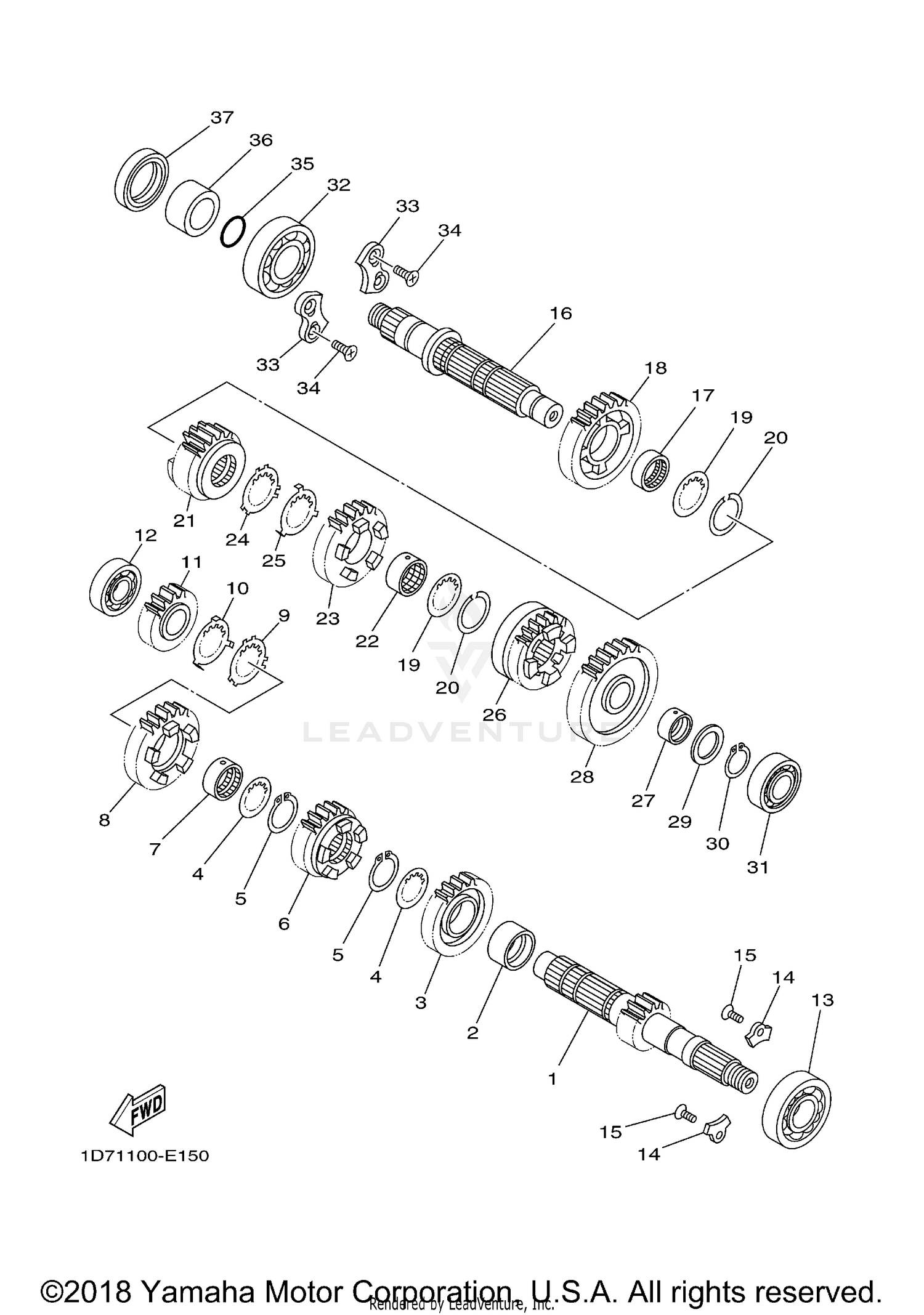

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (16T)
1D7-17411-00-00
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-32004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 4TH PINION (28T)
1D7-17141-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-28331-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-31172-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (25T)
1D7-17131-10-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-28005-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 5TH PINION (30T)
1D7-17151-10-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-29329-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-28330-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (21T)
1D7-17121-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20593-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37806-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BEARING COVER
3AK-15383-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
90151-06024-00
Superseded by 90151-06023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
1D7-17421-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-3311C-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 2ND WHEEL (33T)
1D7-17221-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-30344-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-32063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 5TH WHEEL (24T)
1D7-17251-10-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-3310V-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 3RD WHEEL (29T)
1D7-17231-20-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-30345-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
90209-30343-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 4TH WHEEL (26T)
1D7-17241-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-25008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 1ST WHEEL (38T)
1D7-17211-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE (0.9T)
90201-256K6-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP
93410-25017-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
93306-20593-00
|
$59.99 | ||
|
Unavailable |
|||
|
#32
BEARING
93306-30641-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE, BEARING COVER
31A-15381-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, COUNTERSUNK
90151-08002-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
93210-28001-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-32006-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL
93103-44011-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
