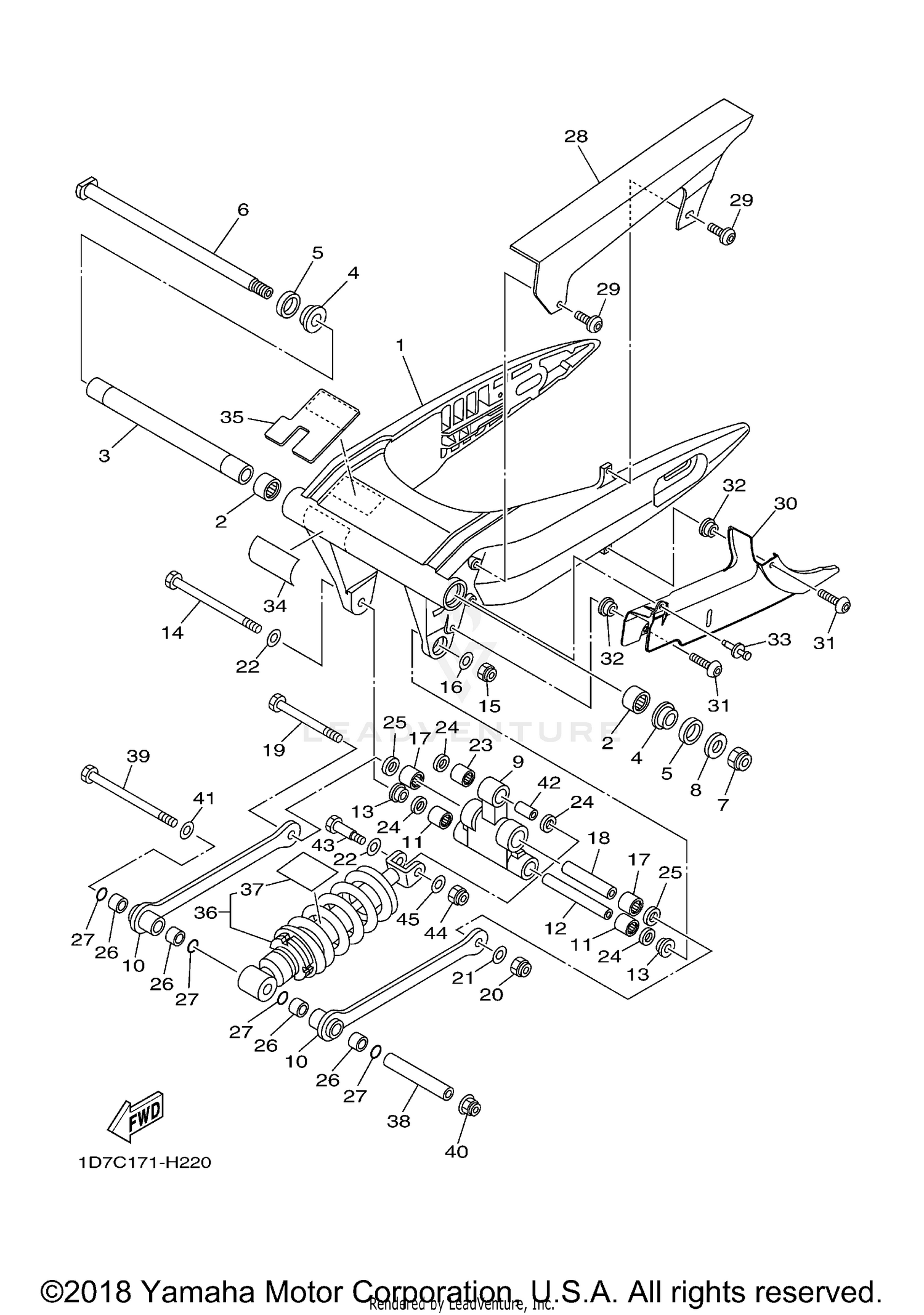

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
1D7-22110-01-00
|
$1,705.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93317-42599-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
1D7-22184-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, DISTANCE
1D7-22126-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93109-33049-00
Superseded by 93109-33052-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
5PX-22141-10-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-18020-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, RELAY
1D7-2217A-01-00
|
$347.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM 1
1D7-2217M-00-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93317-31798-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, ROD 1
1D7-2248B-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-12032-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-12018-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95612-12100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93315-32053-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-12035-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-12027-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95612-12100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-12045-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93315-31759-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93109-20001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH, BIMETAL FORMED
90384-18157-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-18397-00
Superseded by 93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN CASE ASSY
1D7-22310-20-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW
90149-06298-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CASE, CHAIN 2
1D7-22312-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
90149-06298-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-065T2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
RIVET
90269-08001-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#34
SEAL 1
1D7-22358-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, THRUST 1
1D7-22128-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHOCK ABSORBER ASSY, REAR
2C5-22210-00-00
|
$747.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
LABEL, WARNING
4AA-22259-80-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-1214E-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90101-12017-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SELF-LOCKING
95602-12200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
90201-12045-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
COLLAR
90387-127W0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, U
95612-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
