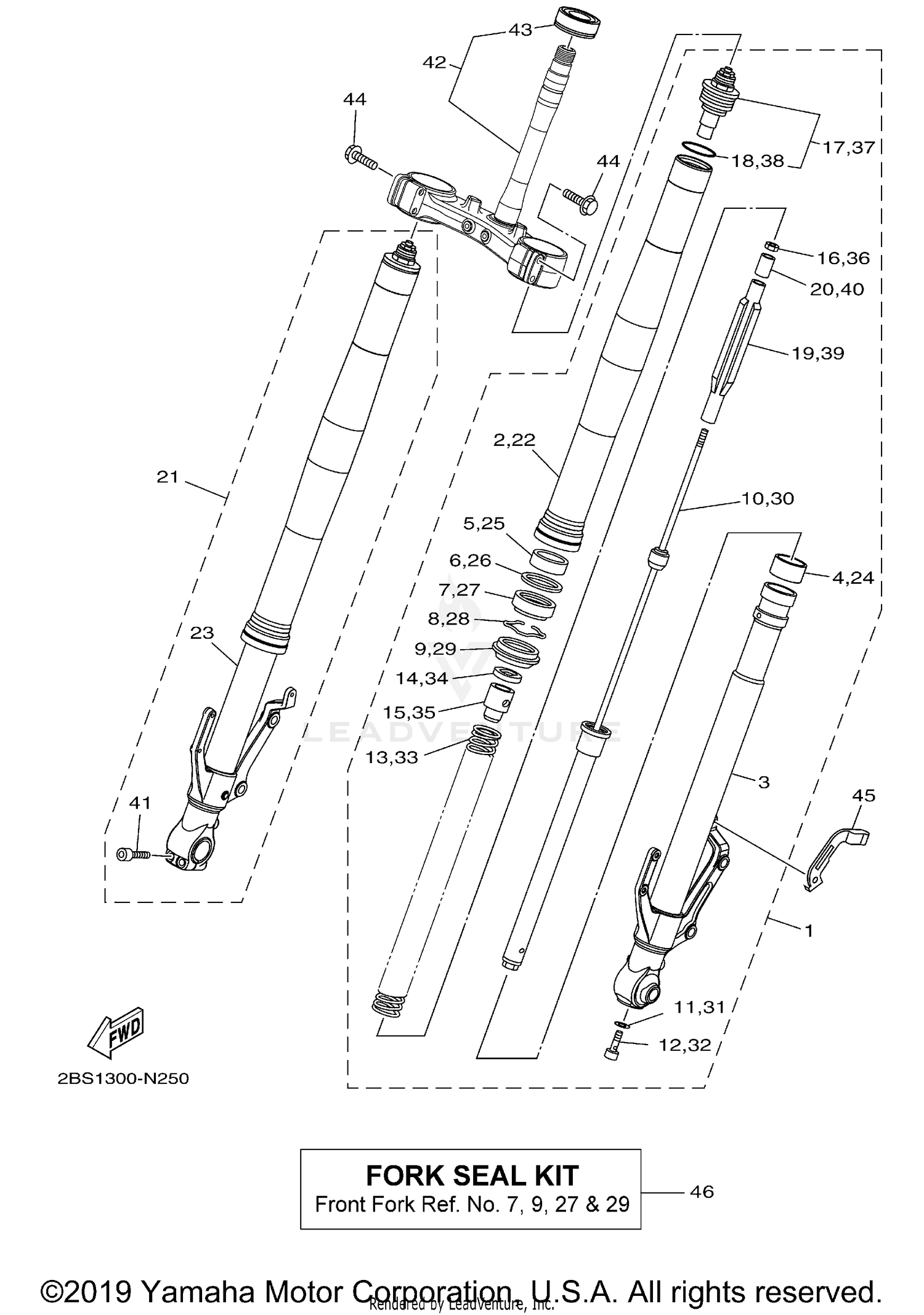

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
2BS-23102-20-00
|
$886.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER 2
2BS-23136-20-00
|
$446.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP. 1
23P-23110-00-00
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5EB-23171-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5EB-23125-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
4PU-23145-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
4PU-23144-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
2BS-23170-00-00
|
$338.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
23P-23141-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
5VY-12277-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
23P-23118-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
5SL-23111-41-00
|
$281.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
3XJ-23147-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, SPRING
23P-23117-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
23P-23113-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FRONT FORK ASSY (R.H)
2BS-23103-20-00
|
$886.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE, OUTER 2
2BS-23136-20-00
|
$446.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE COMP. 2
23P-23120-00-00
|
$445.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON, FRONT FORK
5EB-23171-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#25
METAL, SLIDE 1
5EB-23125-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#26
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
4PU-23145-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#28
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
SEAL, DUST
4PU-23144-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#30
CYLINDER COMP., FRONT FORK
2BS-23170-00-00
|
$338.99 | ||
|
Unavailable |
|||
|
#31
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#33
SPRING, FRONT FORK
23P-23141-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#34
WASHER
5VY-12277-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#35
SPACER
23P-23118-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#36
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
BOLT, CAP
5SL-23111-41-00
|
$281.99 | ||
|
Unavailable |
|||
|
#38
O-RING
3XJ-23147-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
GUIDE, SPRING
23P-23117-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#40
COLLAR
23P-23113-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
UNDER BRACKET COMP.
23P-23340-00-00
|
$581.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING
93332-00081-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOLDER, BRAKE HOSE 1
23P-25875-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
FORK SEAL KIT
4PU-W003B-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
