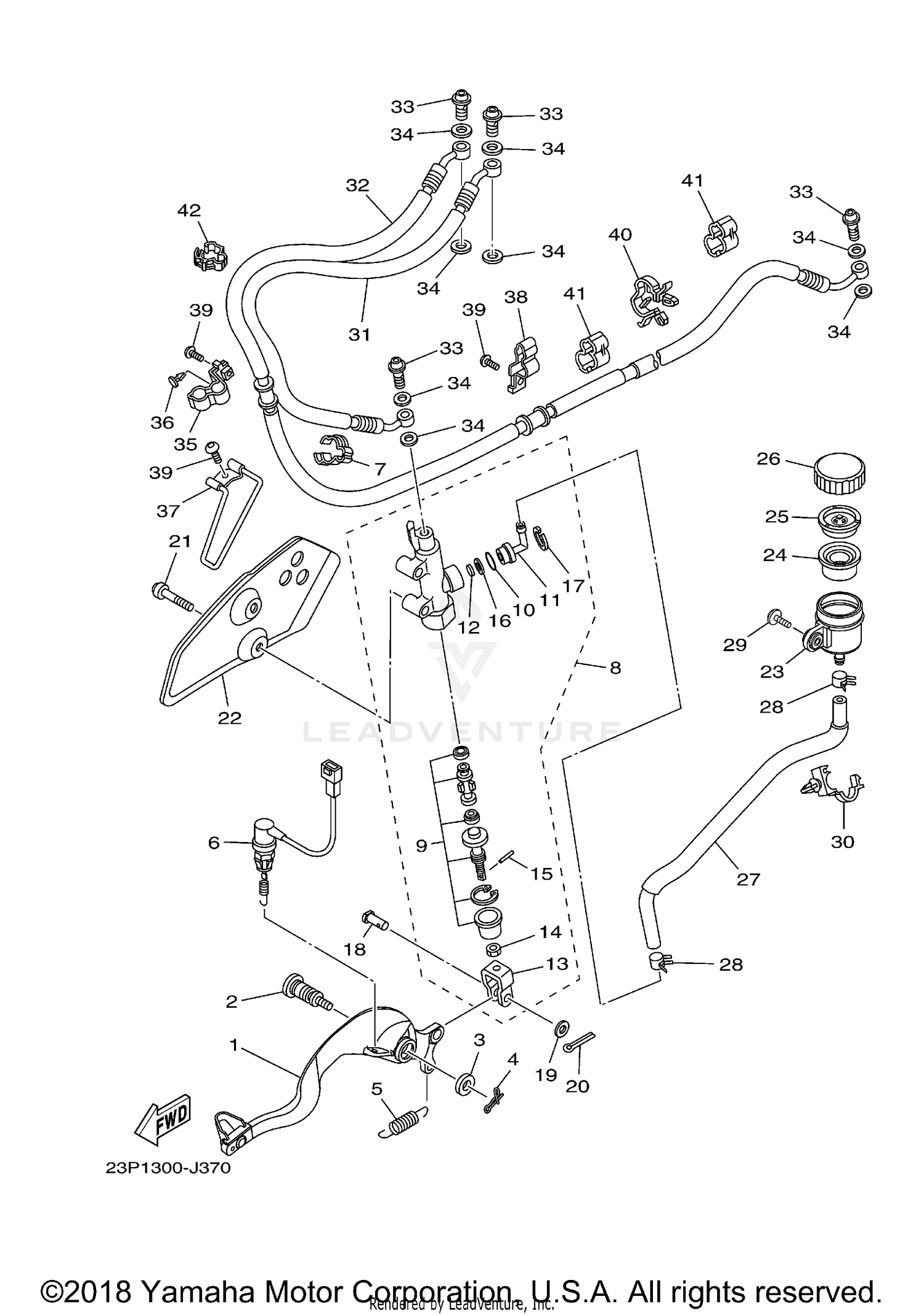

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
23P-27200-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
5XC-27217-90-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90468-16191-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-20193-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP SWITCH ASSY
23P-82530-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90465-14310-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
REAR MASTER CYLINDER ASSY.
23P-2583V-00-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER KIT, MASTER
23P-W0042-50-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT
4ML-2582A-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FILTER
23P-2586G-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
23P-27222-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
4SS-27218-00-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, BRAKE ROD
3KW-27234-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, FILTER
23P-2586H-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
90240-08120-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE 2
23P-27446-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
TANK, RESERVOIR
2D1-25894-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DIAPHRAGM, RESERVOIR
5SL-25854-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSH, DIAPHRAGM
5SL-25855-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, RESERVOIR
5SL-25852-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, RESERVOIR
23P-25895-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-120A3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WITH WASHER
90119-05020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-17003-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, BRAKE 4
23P-2581J-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, BRAKE 5
23P-2581K-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, BRAKE HOSE
23P-25886-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
RIVET
90269-07011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER
23P-27911-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLDER, BRAKE HOSE
23P-2587A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-23239-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-10233-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90464-12013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
