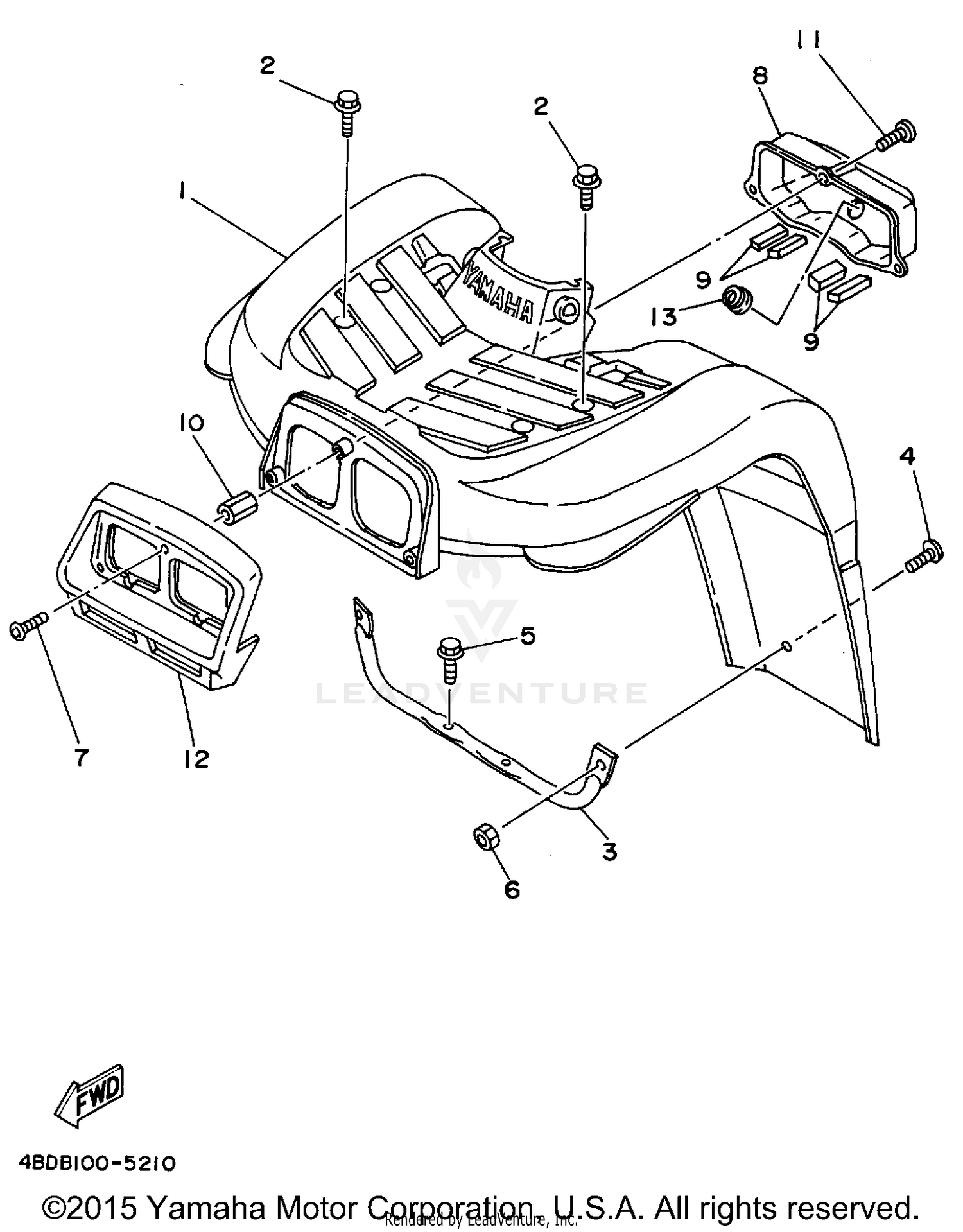

Front Fender 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4BD-21511-00-00
|
$239.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
4BD-21511-60-00
Superseded by 4BD-W2151-60-00
|
$165.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
4BD-21511-70-00
Superseded by 4BD-W2151-70-00
|
$165.99 | ||
|
Unavailable |
|||
|
#2
BOLT, WITH WASHER
90119-08212-00
Superseded by 90119-08119-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FENDER 1
4BD-21513-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#4
SCREW, BINDING
90149-06184-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY, HEADLIGHT
2HR-84111-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#9
DAMPER 1
83R-14425-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90170-05362-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BIND
98907-05014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PANEL, FRONT
2HR-23391-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-25461-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
