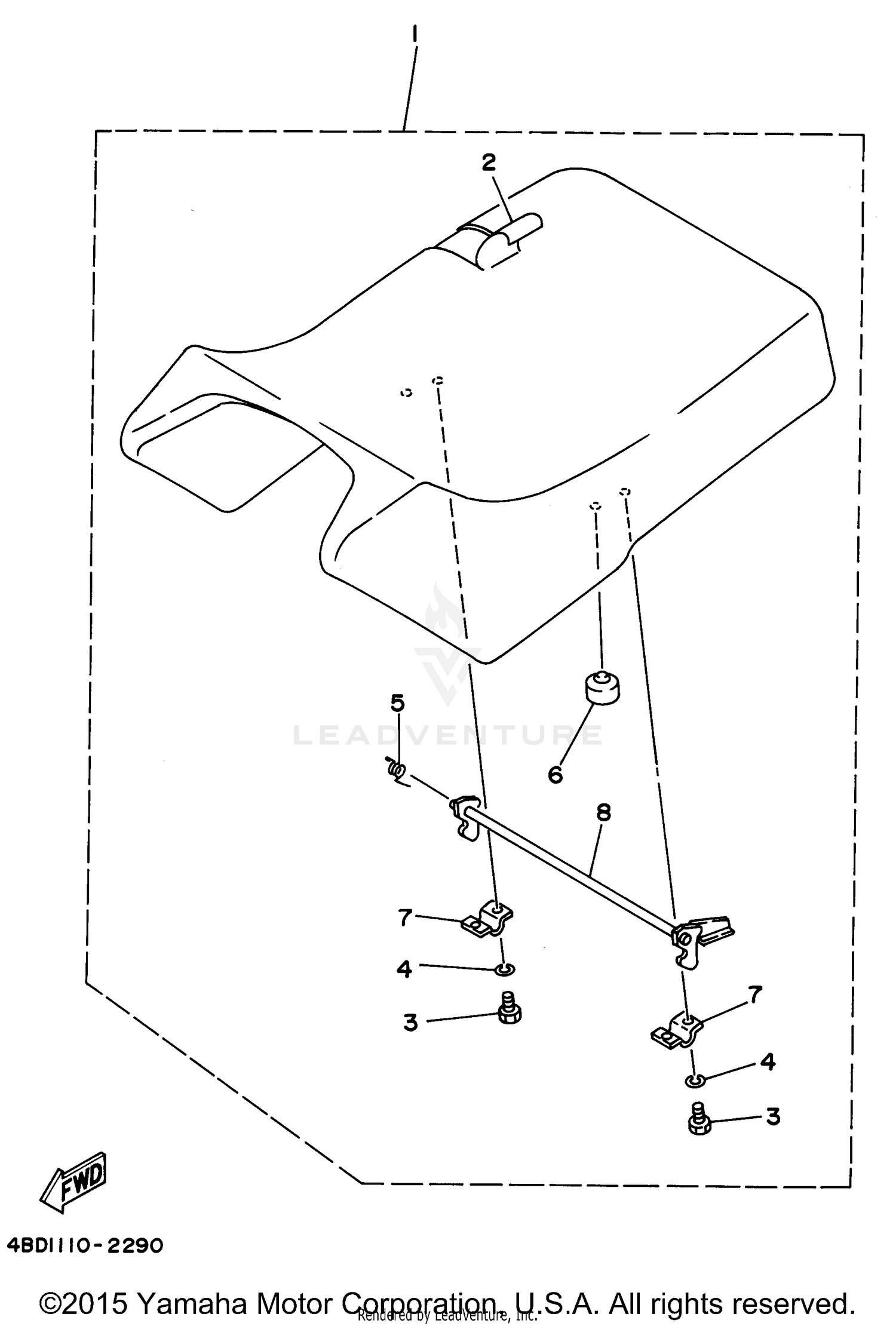

1995 Yamaha TIMBERWOLF 4X4 SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
4BD-24710-70-00
|
$280.99 | ||
|
Unavailable |
|||
|
#
SINGLE SEAT ASSEMBLY
4BD-24710-90-00
Superseded by 4BD-24710-C0-00
|
$287.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
4BD-24731-70-00
|
$158.99 | ||
|
Unavailable |
|||
|
#
COVER, SEAT
4BD-24731-90-00
Superseded by 4BD-24731-C0-00
|
$171.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-23567-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT LEVER
59V-24775-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, SEAT
4BD-24776-00-00
Superseded by 4BD-24776-01-00
|
$30.99 | ||
|
Unavailable |
|||
