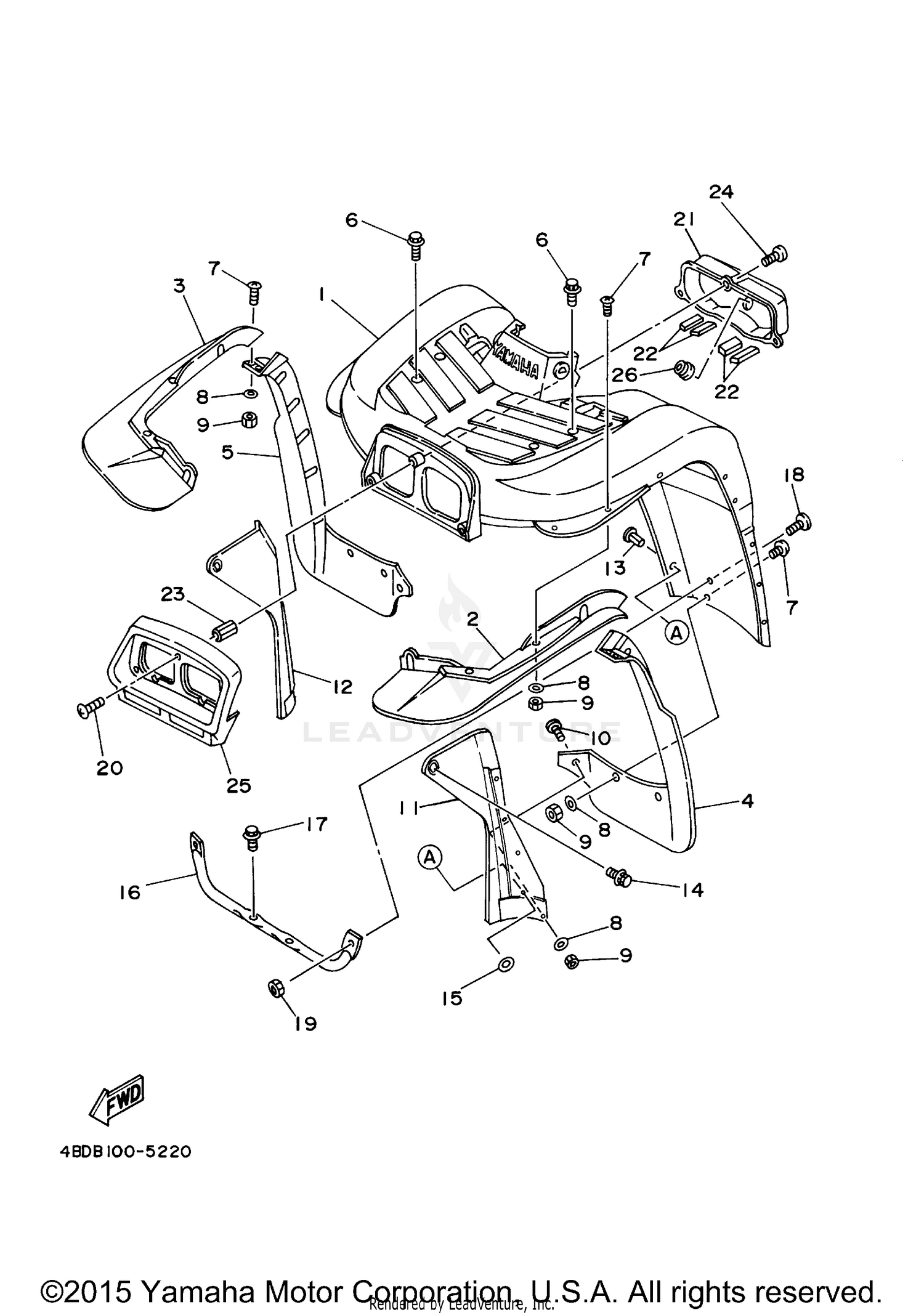

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
4KD-W2151-40-00
|
$254.99 | ||
|
Unavailable |
|||
|
#2
FENDER, OVER
4BD-21551-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#3
FENDER, OVER 2
4BD-21555-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#4
FENDER, OVER 3
4BD-21559-00-00
|
$78.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, OVER 4
4BD-21560-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#6
BOLT, WITH WASHER
90119-08212-00
Superseded by 90119-08119-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, BINDING
90154-05005-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-05029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95707-05300-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BINDING
90154-05052-00
Superseded by 90154-05011-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
FENDER, INNER
4KD-21552-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#12
FENDER, INNER 2
4KD-21553-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#13
RIVET, BLIND
90267-63047-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-076J4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, FENDER 1
4KD-21513-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, BINDING
90149-06184-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BODY, HEADLIGHT
2HR-84111-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#22
DAMPER 1
1UJ-21717-00-00
Superseded by 83R-14425-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90170-05362-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, BIND
98907-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PANEL, FRONT
2HR-23391-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-25461-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
